libmatt.com Satellite uplink refers to the transmission of signals from an Earth-based station to a satellite, crucial for sending data and commands. Downlink involves the satellite sending signals back to a ground receiver, enabling you to access television broadcasts, internet, and communication services efficiently.
Table of Comparison
| Feature | Satellite Uplink | Satellite Downlink |
|---|---|---|
| Definition | Transmission of signals from ground station to satellite | Transmission of signals from satellite to ground station |
| Frequency Bands | Typically higher frequency (e.g., X-band, Ka-band) | Typically lower frequency (e.g., C-band, Ku-band) |
| Signal Power | Higher power required due to atmospheric attenuation | Lower power compared to uplink |
| Purpose in Defense | Command and control transmission | Data reception and intelligence gathering |
| Latency | Same as downlink; depends on satellite orbit | Same as uplink; depends on satellite orbit |
| Interference Risks | More susceptible due to higher frequency and weather | Less affected but can suffer from signal fading |
| Equipment Required | High-power transmitters, large antennas | Sensitive receivers, medium to large antennas |
Overview of Satellite Uplink and Downlink
Satellite uplink transmits signals from an Earth-based station to a satellite in orbit, typically involving data, voice, or television broadcasts. Downlink refers to the transmission of signals from the satellite back to receiving stations on Earth, enabling the delivery of content to your devices. Efficient uplink and downlink systems are critical for maintaining strong communication networks, including GPS, weather monitoring, and satellite television.
Key Definitions: Uplink vs Downlink
Satellite uplink refers to the transmission of signals from a ground station to a satellite orbiting the Earth, enabling data, voice, and video communication to be sent for relay or broadcast. Conversely, downlink is the process where the satellite transmits signals back down to receiving stations on Earth, delivering the originated content or data for end-user applications. The uplink frequency is typically higher to avoid interference, while the downlink works on different bands optimized for clear reception and signal strength.
Frequency Bands Used in Uplink and Downlink
Satellite uplink and downlink operate on distinct frequency bands to ensure clear communication and minimal interference. Uplink frequencies typically range from 14 to 14.5 GHz in the Ku-band and 27.5 to 31 GHz in the Ka-band, designed for sending signals from Earth stations to satellites. Downlink frequencies, used to transmit signals back to Earth, are generally lower, commonly 10.7 to 12.75 GHz in the Ku-band and 17.7 to 21.2 GHz in the Ka-band, optimizing signal reception for your satellite services.
Technical Differences Between Uplink and Downlink
Satellite uplink refers to the transmission of signals from a ground station to a satellite, typically operating at higher frequencies such as the C, Ku, or Ka bands, which require precise power control and modulation techniques to overcome atmospheric attenuation. Downlink involves the satellite sending data back to Earth, generally at lower frequencies than the uplink to minimize signal loss and interference, utilizing robust error correction and demodulation protocols to ensure data integrity. Key technical differences include the direction of signal flow, frequency spectrum allocation, power requirements, and the complexity of antenna design tailored for transmitting or receiving signals efficiently in space communications.
Equipment Required for Uplink and Downlink
Satellite uplink requires specialized equipment such as high-power transmitters, parabolic dish antennas, and frequency converters to send signals from the ground station to the satellite. The downlink process involves receiving equipment including low-noise block downconverters (LNBs), receivers, and associated antennas optimized for capturing weakened signals transmitted from space. Your choice of uplink and downlink equipment depends on factors like frequency band, transmission power, and signal quality to ensure reliable satellite communication.
Signal Loss Factors in Uplink vs Downlink
Signal loss in satellite uplink primarily results from atmospheric attenuation, rain fade, and free-space path loss as the transmitted signal travels from Earth to the satellite, which often requires higher power transmission to overcome these effects. In contrast, downlink signal loss is influenced by factors such as atmospheric absorption, multipath interference, and polarization mismatch while the signal travels from satellite to the receiving Earth station. Understanding these distinct signal loss factors helps you optimize antenna design and power allocation to ensure efficient communication in both uplink and downlink channels.
Applications of Uplink and Downlink in Communications
Satellite uplinks transmit signals from ground stations to satellites, enabling data relay, broadcasting, and internet connectivity services. Downlinks deliver processed signals from satellites back to earth, supporting television distribution, GPS navigation, and emergency communications. Both uplink and downlink paths are essential for two-way satellite communication systems in telecommunications, military operations, and global data networks.
Security Considerations in Uplink and Downlink
Satellite uplink security requires robust encryption and strong authentication protocols to protect data transmitted from ground stations to satellites against interception and tampering. Downlink security focuses on preventing unauthorized access and eavesdropping on signals broadcasted from satellites to ground receivers, often employing advanced signal scrambling and key management systems. Both uplink and downlink security measures must address potential threats such as jamming, spoofing, and cyber intrusions to ensure secure and reliable communication channels.
Challenges in Managing Uplink and Downlink Signals
Managing satellite uplink and downlink signals involves overcoming challenges such as signal attenuation, latency, and interference from weather conditions or terrestrial sources. Uplink signals require higher power and precise alignment to ensure the satellite accurately receives data, while downlink signals must be optimized for clear reception on Earth despite atmospheric disturbances. Effective management of your communication system demands advanced error correction and adaptive modulation techniques to maintain signal integrity and reliability.
Future Trends in Satellite Uplink and Downlink Technologies
Future trends in satellite uplink and downlink technologies emphasize higher frequency bands such as Ka and Q/V bands to achieve greater data throughput and reduced latency. Advances in adaptive beamforming and software-defined payloads enable more efficient spectrum use and dynamic bandwidth allocation. Integration of AI-driven signal processing and next-generation modulation techniques further enhances link reliability and capacity for emerging applications like 5G backhaul and global broadband connectivity.

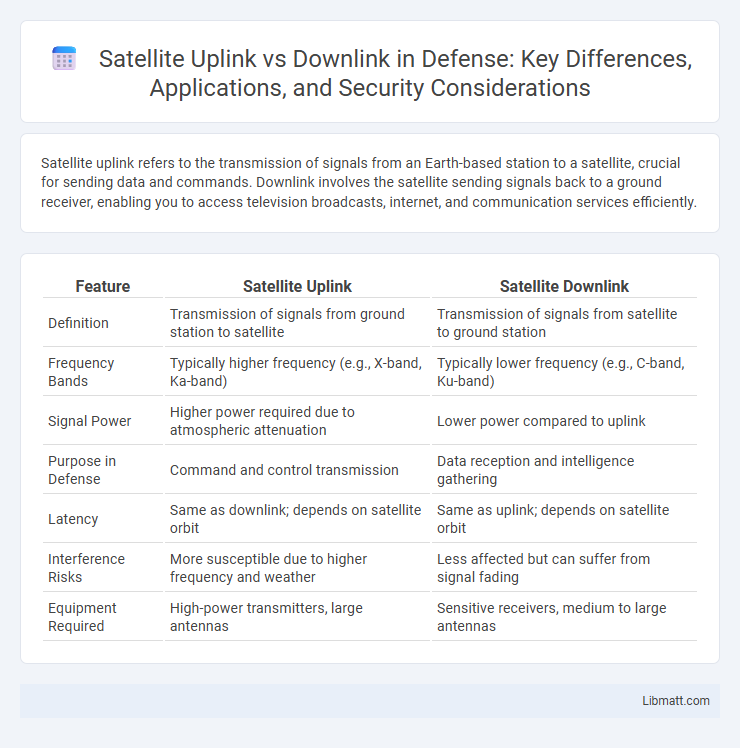

Satellite uplink vs Downlink Infographic
