libmatt.com Phased array antennas electronically steer the beam by adjusting the phase of the signal at each element, enabling rapid and precise targeting without moving parts. Mechanically steered arrays physically rotate or tilt the entire antenna, resulting in slower response times and potential wear from mechanical movement, whereas phased arrays offer greater flexibility and reliability for your applications.
Table of Comparison
| Feature | Phased Array | Mechanically Steered Array |
|---|---|---|
| Beam Steering | Electronic beam steering with no moving parts | Physical movement of the antenna to steer the beam |
| Response Time | Near-instantaneous beam direction changes | Slower response due to mechanical movement |
| Reliability | High reliability, fewer mechanical failures | Mechanical wear and tear reduces reliability |
| Maintenance | Lower maintenance; no moving parts | Higher maintenance due to motors and bearings |
| Cost | Higher initial cost due to advanced electronics | Lower initial cost; simpler technology |
| Application | Advanced radar, missile guidance, electronic warfare | Conventional radar systems, simpler targeting |
| Beam Precision | Highly precise beam control and multiple simultaneous beams | Limited precision, typically single beam only |
| Size and Weight | Compact, lightweight compared to mechanical systems | Bulkier and heavier due to moving parts |
Introduction to Antenna Array Technologies
Phased array antennas use electronically controlled phase shifters to steer the beam rapidly without moving parts, enabling precise directionality and rapid scanning across wide angles. Mechanically steered arrays rely on physical movement of the entire antenna or reflector to achieve beam steering, resulting in slower response times and increased mechanical complexity. Phased arrays offer superior agility and reliability for radar, telecommunications, and satellite applications compared to mechanically steered systems.
What Is a Phased Array Antenna?
A phased array antenna uses multiple radiating elements with variable phase shifts to electronically steer the beam direction without physically moving the antenna structure. This technology enables rapid beam steering, improved target tracking, and adaptive pattern control, outperforming mechanically steered arrays that rely on physical movement and are limited by slower response times and mechanical wear. Phased arrays are essential in radar, communications, and electronic warfare systems due to their agility, reliability, and enhanced signal accuracy.
Understanding Mechanically Steered Array Antennas
Mechanically steered array antennas rely on physical movement of the antenna structure to direct the beam, offering straightforward design and lower initial cost compared to phased arrays. These antennas excel in applications where simplicity and robustness are critical, but their slower beam steering speed limits performance in rapidly changing environments. Understanding these characteristics helps you choose the right technology based on trade-offs between agility, complexity, and cost.
Key Differences: Phased Array vs Mechanically Steered Array
Phased arrays use electronic phase shifting to steer beams rapidly without moving parts, offering faster response times and greater reliability than mechanically steered arrays that physically rotate antennas to change direction. Mechanically steered arrays tend to be larger, heavier, and slower, limiting agility and increasing maintenance due to moving components. Phased arrays provide superior precision and adaptability in applications like radar and telecommunications, where rapid beam switching and multi-target tracking are critical.
Performance Comparison: Speed, Accuracy, and Range
Phased arrays offer superior speed by electronically steering beams almost instantaneously, whereas mechanically steered arrays rely on slower physical movement. Accuracy in phased arrays is enhanced through precise phase control of individual elements, resulting in finer beam shaping and reduced signal distortion compared to mechanical rotation. Range performance is typically better in phased arrays due to their ability to maintain consistent beam focus and agility, enabling improved target detection and tracking at extended distances.
Reliability and Maintenance Considerations
Phased array systems offer greater reliability due to their solid-state components and absence of moving parts, significantly reducing mechanical wear and the need for frequent maintenance. Mechanically steered arrays involve motors and gears prone to mechanical failure and require regular upkeep, increasing downtime and operational costs. The reduced mechanical complexity of phased arrays enhances system uptime and lowers lifecycle maintenance expenses, making them preferable in mission-critical applications.
Cost Analysis: Initial Investment and Lifecycle
Phased array systems typically involve higher initial investment due to complex electronics and advanced manufacturing requirements, whereas mechanically steered arrays incur lower upfront costs but may require more frequent maintenance. Lifecycle expenses favor phased arrays by offering longer operational reliability and reduced wear from no moving parts, while mechanically steered arrays face increased downtime and maintenance expenditures over time. Your choice should weigh the trade-off between upfront capital and ongoing maintenance to optimize overall cost-effectiveness.
Applications in Defense, Aerospace, and Telecommunications
Phased arrays offer rapid beam steering and high precision, making them ideal for advanced defense systems like missile tracking, radar surveillance, and electronic warfare, as well as aerospace applications such as satellite communication and aircraft navigation. Mechanically steered arrays, while more limited in speed and reliability, remain useful in cost-sensitive telecommunications deployments and legacy radar installations requiring wide angular coverage. The ability of phased arrays to perform simultaneous multi-beam operations significantly enhances real-time data processing critical in modern military, aerospace, and commercial communication networks.
Future Trends in Antenna Array Technology
Future trends in antenna array technology emphasize the shift towards phased array systems due to their ability to electronically steer beams with rapid agility, enhanced precision, and increased reliability compared to mechanically steered arrays. Advances in semiconductor technologies, such as GaN and silicon photonics, enable higher power efficiency and miniaturization, supporting integration of large-scale phased arrays in applications like 5G, radar, and satellite communications. Research in adaptive beamforming algorithms and machine learning further optimizes phased arrays for dynamic environments, highlighting their dominant role in next-generation antenna solutions.
Conclusion: Choosing the Right Array for Your Needs
Phased array systems offer rapid beam steering, enhanced target tracking, and greater reliability due to no moving parts, making them ideal for applications requiring agility and precision such as radar and communication systems. Mechanically steered arrays, while generally less expensive and simpler to maintain, provide slower beam adjustment and are better suited for cost-sensitive or less dynamic environments. Selecting the right array depends on balancing factors like operational speed, precision, budget constraints, and application-specific demands to optimize performance and cost-effectiveness.

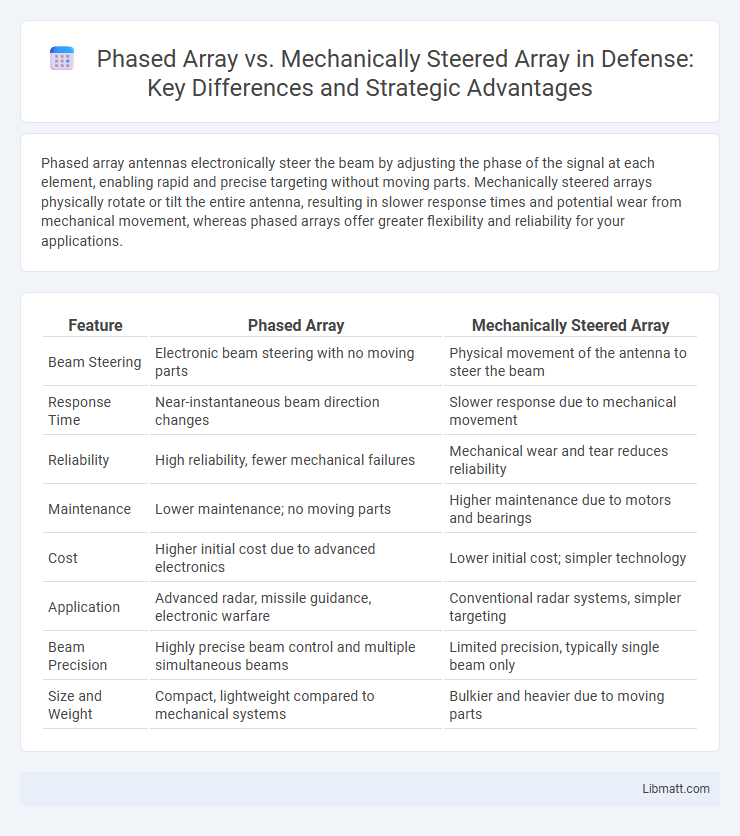

phased array vs mechanically steered array Infographic
