libmatt.com Insulated Gate Bipolar Transistors (IGBTs) offer high voltage and current handling capabilities, making them ideal for industrial applications like motor drives and power inverters, while MOSFETs excel in fast switching speeds and low on-resistance, suitable for low voltage, high-frequency applications such as power supplies and DC-DC converters. Choosing the right device depends on Your specific needs for efficiency, switching frequency, and power handling.
Table of Comparison
| Feature | Insulated Gate Bipolar Transistor (IGBT) | MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) |
|---|---|---|
| Voltage Rating | High voltage, typically 600V to 1200V and above | Lower voltage, typically up to 250V to 600V |
| Current Handling | High current capacity | Moderate to high current capacity |
| Switching Speed | Slower switching speed | Faster switching speed |
| Conduction Losses | Lower conduction losses at high voltage | Higher conduction losses at high voltage |
| Gate Drive Voltage | Typically 15V | Typically 5V to 10V |
| Applications | High power inverters, motor drives, industrial UPS | Low voltage circuits, DC-DC converters, RF amplifiers |
| Thermal Performance | Good thermal stability under high load | Good thermal performance in low voltage applications |
| Cost | Generally more expensive than MOSFETs | Lower cost for low to medium power |
Overview of Insulated Gate Bipolar Transistors (IGBTs)
Insulated Gate Bipolar Transistors (IGBTs) combine the high input impedance of MOSFETs with the low on-state power loss of bipolar transistors, making them ideal for high-voltage and high-current applications such as motor drives, inverters, and power supplies. IGBTs feature a gate-controlled insulated gate that enables efficient switching and robust performance at voltages typically ranging from 600V to 1200V, with some devices supporting higher voltages up to 4500V. Their ability to handle large current densities while maintaining fast switching speeds makes IGBTs a preferred choice for medium- to high-power applications compared to MOSFETs, which excel in low-voltage and high-frequency scenarios.
Introduction to Metal-Oxide-Semiconductor Field-Effect Transistors (MOSFETs)
Metal-Oxide-Semiconductor Field-Effect Transistors (MOSFETs) are widely used semiconductor devices known for their high switching speeds and efficient power handling in electronic circuits. MOSFETs operate by controlling voltage across a metal-oxide gate electrode to regulate current flow between the source and drain terminals, providing effective amplification and switching capabilities. Your choice between MOSFETs and Insulated Gate Bipolar Transistors (IGBTs) depends on application requirements such as switching frequency, voltage levels, and efficiency.
Key Differences Between IGBT and MOSFET Technologies
IGBTs combine the high input impedance of MOSFETs with the low conduction losses of bipolar transistors, making them ideal for high-voltage and high-current applications, whereas MOSFETs excel in fast switching and low-voltage scenarios due to their majority carrier operation. IGBTs typically offer higher voltage and current ratings, but with slower switching speeds compared to MOSFETs, which provide superior switching efficiency and lower on-resistance at lower voltages. Your choice between IGBT and MOSFET technologies depends on the specific requirements of power handling, switching frequency, and thermal performance in the application.
Switching Speed: IGBT vs MOSFET Performance
MOSFETs exhibit superior switching speeds compared to Insulated Gate Bipolar Transistors (IGBTs) due to their majority carrier operation, enabling faster turn-on and turn-off times in high-frequency applications. IGBTs, relying on minority carrier conduction, have slower switching speeds but offer lower conduction losses and higher voltage handling capability, making them preferable for medium to high voltage power electronics. In high-frequency circuits, MOSFETs dominate performance metrics, while IGBTs excel in efficiency and robustness for high-power, lower-frequency switching scenarios.
Efficiency and Power Loss Comparisons
Insulated Gate Bipolar Transistors (IGBTs) exhibit lower conduction losses at high voltage and current levels compared to MOSFETs, making them more efficient for high-power applications above 400V. MOSFETs excel in switching speed with lower switching losses, enhancing efficiency in low-voltage, high-frequency circuits under 250V. Power loss in IGBTs is predominantly due to tail current during turn-off, whereas MOSFETs experience losses mainly from gate charge and on-resistance, influencing their efficiency depending on operating conditions.
Voltage and Current Handling Capabilities
Insulated Gate Bipolar Transistors (IGBTs) excel in high voltage applications, typically handling voltages above 600V, making them ideal for industrial motors and power inverters. Metal-Oxide-Semiconductor Field-Effect Transistors (MOSFETs) offer superior current handling and faster switching speeds at lower voltage ranges, generally below 250V, favoring applications like computer power supplies and low-voltage converters. Your choice depends on voltage and current requirements, with IGBTs preferred for high-voltage, high-current scenarios and MOSFETs for efficient, high-speed switching at lower voltages.
Thermal Management and Heat Dissipation
Insulated Gate Bipolar Transistors (IGBTs) exhibit higher thermal conductivity and power handling capabilities compared to Metal-Oxide-Semiconductor Field-Effect Transistors (MOSFETs), making them more suitable for high-voltage, high-current applications requiring efficient heat dissipation. MOSFETs generally have lower on-resistance and faster switching speeds but produce more heat per unit area, necessitating advanced cooling techniques in high-power operations. Effective thermal management in IGBTs relies on robust heat sinks and thermal interface materials, whereas MOSFETs often benefit from optimized package designs to enhance heat transfer and maintain device reliability.
Application Areas: When to Use IGBT or MOSFET
IGBTs excel in high-voltage and high-current applications such as industrial motor drives, electric vehicles, and power grid converters due to their ability to handle large power with lower conduction losses. MOSFETs are ideal for low-voltage, high-frequency switching applications like computer power supplies, DC-DC converters, and audio amplifiers because of their fast switching speed and efficiency. Your choice between IGBT and MOSFET depends largely on voltage, current, and switching frequency requirements specific to your application.
Cost Considerations and Availability
Insulated Gate Bipolar Transistors (IGBTs) typically exhibit higher costs compared to Metal-Oxide-Semiconductor Field-Effect Transistors (MOSFETs) due to their complex manufacturing processes and robust high-voltage handling capabilities. MOSFETs are generally more widely available and economical, especially in applications requiring lower voltage and higher switching speeds, benefiting from extensive mass production and established supply chains. Cost-efficiency and availability largely depend on the specific power ratings and operating frequencies required, with MOSFETs favored in consumer electronics and IGBTs preferred in industrial motor control and power conversion systems.
Future Trends in Power Semiconductor Devices
Insulated Gate Bipolar Transistors (IGBTs) and MOSFETs are evolving with advancements in wide-bandgap materials like SiC and GaN, enhancing efficiency and thermal performance in high-power applications. Future trends emphasize integrating smart gate drivers and AI-enhanced control for improved switching speed and reliability across electric vehicles and renewable energy systems. Research continues to target reduced conduction losses and miniaturization, enabling more compact, energy-efficient power electronics.

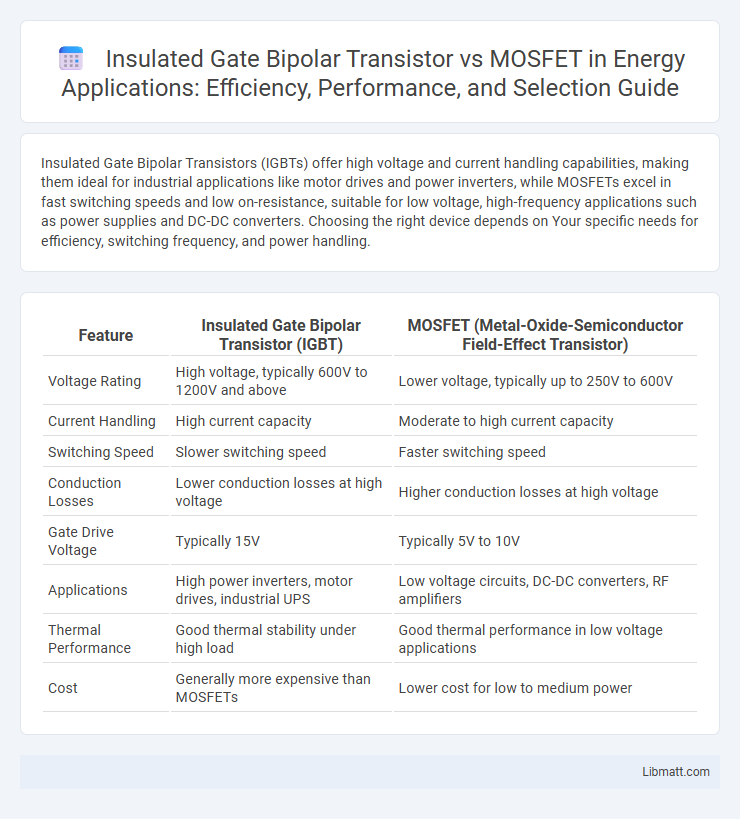

Insulated gate bipolar transistor vs MOSFET Infographic
