libmatt.com External carriage in aircraft refers to mounting payloads such as weapons or fuel tanks on the outside of the airframe, which can increase drag and affect aerodynamics. Internal carriage stores these items within the aircraft's fuselage or bomb bay, enhancing stealth capabilities and reducing aerodynamic drag to improve fuel efficiency.
Table of Comparison
| Criteria | External Carriage | Internal Carriage |
|---|---|---|
| Definition | Munitions or stores mounted outside the aircraft fuselage or wings. | Munitions or stores housed within the aircraft's internal bays or compartments. |
| Radar Cross-Section (RCS) | Increases RCS significantly, reducing stealth capabilities. | Minimizes RCS, enhancing stealth and low observability. |
| Aerodynamics & Speed | Higher drag, lowers top speed and maneuverability. | Reduced drag, maintains higher speed and agility. |
| Payload Capacity | Typically allows for a larger and more varied payload. | Limited by internal bay volume and geometry. |
| Mission Flexibility | Quick reconfiguration and ease of loading external stores. | Requires complex mechanisms and longer reconfiguration time. |
| Maintenance & Accessibility | Easier access for inspection and replacement of stores. | More complex access, increasing maintenance time and effort. |
| Operational Use | Common in legacy and multi-role aircraft prioritizing payload versatility. | Preferred in modern stealth fighters and bombers for signature reduction. |
Introduction to Aircraft Carriage Systems
Aircraft carriage systems are classified into external carriage and internal carriage, each designed to optimize aerodynamic efficiency and mission capability. External carriage involves mounting payloads such as weapons or sensors on pylons outside the aircraft fuselage, which can impact drag and radar signature but allows for greater flexibility and payload variety. Internal carriage houses payloads within the aircraft's fuselage or weapons bays, enhancing stealth and reducing drag to improve fuel efficiency and operational range, crucial for maintaining your aircraft's performance in modern combat scenarios.
Defining External and Internal Carriage
External carriage refers to mounting payloads, such as weapons or equipment, on the outside of an aircraft's fuselage or wings, exposing them directly to airflow. Internal carriage involves housing these payloads within the aircraft's internal compartments or bays, maintaining aerodynamic efficiency and reducing drag. Your choice between external and internal carriage greatly impacts aircraft performance, stealth capabilities, and mission flexibility.
Historical Evolution of Carriage Methods
The historical evolution of aircraft carriage methods began with internal carriage becoming preferred due to aerodynamic efficiency and protection of payload. Early military aircraft employed external carriage for bombs and fuel tanks, but advancements in fuselage design allowed for internal bomb bays, reducing drag and improving speed during World War II. Modern stealth aircraft prioritize internal carriage to maintain radar cross-section reduction, marking a significant evolution from externally mounted ordnance to fully integrated internal compartments.
Key Design Differences: External vs Internal
External carriage involves mounting payloads such as weapons or sensors on aircraft hardpoints or pylons outside the fuselage, affecting aerodynamic drag and fuel efficiency. Internal carriage integrates payloads within the aircraft's fuselage or internal bays, preserving aerodynamic profile and enhancing stealth by reducing radar cross-section. Structural reinforcements and access mechanisms vary significantly, with external carriage requiring robust mounting hardware and internal carriage demanding precise bay design and door systems for payload deployment.
Impact on Aircraft Performance and Aerodynamics
External carriage of payloads on aircraft significantly increases drag, leading to reduced fuel efficiency and decreased maximum speed due to disrupted airflow around the fuselage and wings. Internal carriage maintains the aircraft's streamlined shape, minimizing aerodynamic penalties and preserving optimal lift-to-drag ratios for enhanced performance. Consequently, internal weapon bays improve stealth capabilities by reducing radar cross-section while supporting better range and maneuverability compared to external stores.
Payload Capacity and Flexibility Considerations
External carriage on aircraft allows for increased payload capacity by enabling the transport of oversized or heavier equipment without compromising internal cabin space, making it ideal for specialized missions or heavy cargo. Internal carriage offers more flexibility for passenger and cargo configuration, providing protection from environmental elements and aerodynamic drag, which enhances fuel efficiency and aircraft performance. Choosing between external and internal carriage depends on the specific mission requirements, payload size, and the need for aerodynamic efficiency versus maximum weight capacity.
Stealth and Survivability Implications
External carriage of weapons on aircraft significantly increases radar cross-section (RCS), compromising stealth capabilities and making the aircraft more detectable to enemy radar systems. Internal carriage preserves the airframe's low observable profile by housing armaments within stealth-optimized bays, enhancing survivability in contested environments. Reduced drag from internal stores also improves fuel efficiency and maneuverability, further supporting mission success and pilot safety.
Maintenance and Operational Accessibility
External carriage of aircraft components allows for easier maintenance access and quicker inspections due to the visibility and reachability of mounted equipment such as pods or sensors, facilitating operational readiness. Internal carriage offers enhanced protection and reduced aerodynamic drag but can complicate maintenance tasks, requiring aircraft disassembly or specialized access panels for component servicing. Operational accessibility in external carriage improves turnaround times, while internal carriage prioritizes stealth and performance at the expense of maintenance convenience.
Common Use Cases and Mission Profiles
External carriage is commonly used for heavy or oversized payloads such as external fuel tanks, surveillance pods, or weapons that require rapid deployment or easy access, often seen in combat or extended-range missions. Internal carriage enhances stealth and aerodynamic efficiency by housing weapons or equipment within the aircraft's fuselage or weapons bays, ideal for air superiority and precision strike missions where radar cross-section and speed are critical. Your mission profile determines whether external versatility or internal stealth provides the optimal balance between payload capacity and operational effectiveness.
Future Trends in Aircraft Carriage Technologies
Future trends in aircraft carriage technologies emphasize increased use of external carriage for modular payloads and unmanned aerial systems, leveraging advanced aerodynamic designs and lightweight materials to enhance fuel efficiency. Internal carriage continues evolving with adaptive compartment configurations and stealth features, optimizing payload versatility and reducing radar cross-section for military and commercial applications. Your choice between external and internal carriage will depend on mission-specific requirements, balancing aerodynamic performance, payload capacity, and technological integrations.

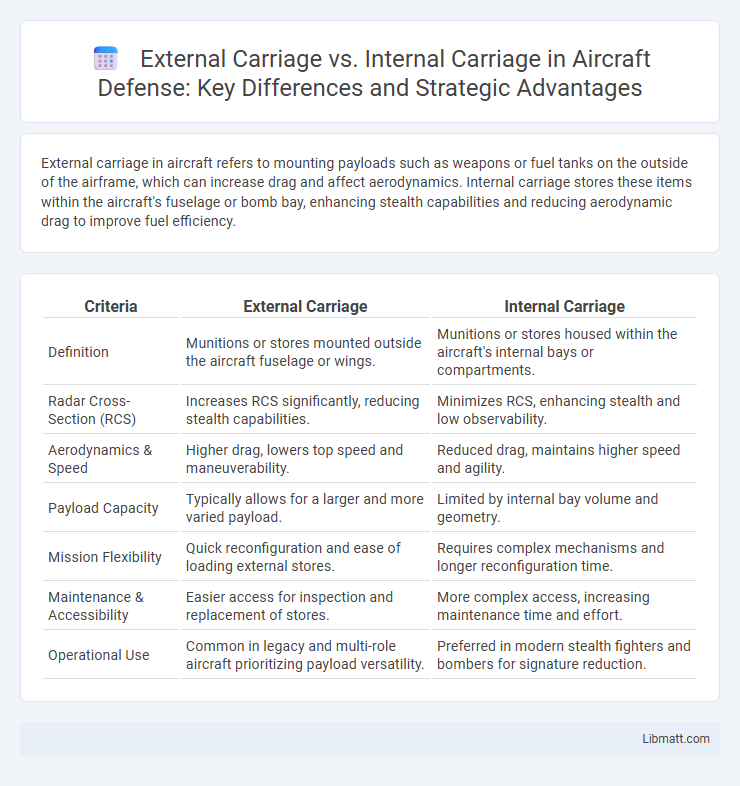

external carriage vs internal carriage (aircraft) Infographic
