libmatt.com Helmet mounted displays offer pilots enhanced situational awareness by projecting critical flight data directly within their line of sight, allowing for quick and precise information access regardless of head position. In contrast, head-up displays provide similar data on a transparent screen fixed inside the cockpit, requiring pilots to maintain a forward gaze to monitor essential flight parameters.
Table of Comparison
| Feature | Helmet Mounted Display (HMD) | Head-Up Display (HUD) |
|---|---|---|
| Definition | Wearable display integrated into a helmet providing data directly in pilot's line of sight. | Transparent display projected onto aircraft windshield showing flight data. |
| Mobility | Fully mobile, moves with the pilot's head. | Fixed and aligned with aircraft systems. |
| Situational Awareness | Enhanced by providing targeting, navigation, and threat data wherever the pilot looks. | Limited to forward view; primarily flight data and targeting info. |
| Data Types | Target tracking, weapon status, navigation, threat identification. | Flight instruments, speed, altitude, targeting reticles. |
| Integration | Integrated with helmet sensor systems and aircraft avionics. | Integrated with aircraft avionics, visible only within cockpit windshield. |
| Use Case | Advanced fighter pilots requiring 360-degree awareness and fast target acquisition. | General aviation and combat aircraft flight data display during forward flight. |
| Advantages | Increased situational awareness, hands-free target acquisition, head-tracking data. | Non-intrusive, continuous flight data without head movement. |
| Limitations | Cost, weight, need for helmet compatibility, potential system complexity. | Restricted to windshield view, less flexible. |
Introduction to Helmet Mounted Displays (HMD) and Head-Up Displays (HUD)
Helmet Mounted Displays (HMD) and Head-Up Displays (HUD) are advanced visualization technologies designed to enhance situational awareness in aviation and military applications. HMDs project critical flight data directly onto the pilot's helmet visor, allowing seamless information access without shifting focus, while HUDs project similar data onto a transparent screen in the pilot's line of sight within the cockpit. Your choice between HMD and HUD depends on factors like mobility, integration needs, and operational environment for optimized performance.
Core Technology: How HMDs Differ from HUDs
Helmet Mounted Displays (HMDs) use integrated optics and sensors to project information directly onto the pilot's visor, enabling real-time data alignment with head movements and enhancing situational awareness in dynamic environments. Head-Up Displays (HUDs) utilize combiner glass or transparent screens to project flight data into the pilot's forward line of sight, fixed relative to the aircraft cockpit, providing constant visibility without requiring head alignment. The core technological distinction lies in HMDs' ability to track head orientation for adaptive data presentation, contrasting with HUDs' static projection within a fixed spatial plane.
Visual Data Projection: HMD vs HUD Approaches
Helmet Mounted Displays (HMDs) project visual data directly onto the user's visor, enabling real-time, immersive information overlay within the wearer's natural line of sight, enhancing situational awareness in dynamic environments. Head-Up Displays (HUDs) reflect data onto a transparent screen positioned in front of the user, allowing information to be viewed without diverting attention from the external environment but with limited field coverage compared to HMDs. The HMD approach offers customizable, context-sensitive imagery closely aligned with head movements, while HUDs provide fixed positional displays optimized for broader visibility but constrained by physical screen placement.
User Experience and Comfort Comparison
Helmet mounted displays (HMDs) provide a more immersive user experience by integrating information directly into the pilot's line of sight, enhancing situational awareness without requiring head movement. Head-up displays (HUDs) project data onto the aircraft windshield, offering comfort by minimizing eye strain and maintaining a natural view, but potentially limiting information scope compared to HMDs. Your choice between HMD and HUD impacts comfort and usability, with HMDs favoring flexibility and HUDs prioritizing ergonomic viewing.
Situational Awareness: Enhancements and Limitations
Helmet mounted displays (HMDs) significantly enhance situational awareness by providing pilots with critical flight data, targeting information, and navigation cues directly within their line of sight, enabling faster decision-making and reducing the need to look down at cockpit instruments. Head-up displays (HUDs) project similar information onto a transparent screen in front of the pilot, maintaining external visibility while delivering essential data; however, HUDs are limited by fixed positioning, which can restrict viewing angle and reduce awareness during dynamic maneuvers. Both systems improve situational awareness but differ in flexibility and range of view, with HMDs offering greater adaptability at the cost of potential weight and comfort concerns.
Application Areas: Military, Aviation, Automotive, and More
Helmet mounted displays (HMDs) are extensively utilized in military aviation for enhanced situational awareness and targeting accuracy, enabling pilots to access critical data without looking down. Head-up displays (HUDs) find broad applications in commercial aviation and automotive sectors, projecting vital information like speed, navigation, and alerts directly onto the windshield or visor, improving safety and efficiency. Both technologies serve diverse fields including defense, civilian aircraft, and high-performance vehicles, with your choice depending on mobility, field of view, and operational requirements.
Integration with Sensors and Augmented Reality
Helmet mounted displays (HMDs) offer direct integration with sensors such as infrared cameras, radar, and tracking systems, enabling pilots to access augmented reality (AR) overlays that enhance situational awareness by projecting targeting and navigation data directly onto the visor. Head-up displays (HUDs) project critical flight information onto the cockpit windshield, integrating sensor data like speed, altitude, and threat detection into a fixed AR interface without the need for head movement. HMDs provide a more immersive AR experience by synchronizing head orientation with sensor inputs, while HUDs maintain constant visual reference within the aircraft, optimizing different aspects of sensor fusion and augmented reality for pilot efficiency.
Cost, Maintenance, and Scalability
Helmet mounted displays (HMDs) typically involve higher initial costs due to advanced optics and sensors, whereas head-up displays (HUDs) have lower upfront expenses but may require frequent recalibration. Maintenance of HMDs can be more complex and costly, as they integrate with helmets and require precision alignment, while HUDs benefit from simpler servicing with established vehicle mounting. Scalability favors HUDs since they easily adapt across various platforms and vehicle types, while HMDs often demand custom adjustments for different users and mission profiles.
Safety and Human Factors Considerations
Helmet mounted displays (HMDs) enhance pilot situational awareness by projecting critical flight data directly within the helmet visor, reducing the need to shift gaze away from the external environment, which improves reaction time and minimizes distraction. Head-up displays (HUDs) present information on a transparent screen in the pilot's line of sight, supporting safety by allowing simultaneous outside view and instrument monitoring; however, they may limit peripheral vision and cause clutter if overloaded. Both systems demand ergonomic design to prevent cognitive overload, eye strain, and motion sickness, ensuring that visual information enhances decision-making without compromising user comfort or operational safety.
Future Trends: Evolving HMD and HUD Technologies
Future trends in helmet-mounted display (HMD) and head-up display (HUD) technologies emphasize enhanced augmented reality integration and improved situational awareness through advanced sensor fusion and AI-driven analytics. Lightweight, high-resolution microdisplays combined with eye-tracking capabilities are set to revolutionize pilot and driver interfaces, while wireless connectivity facilitates real-time data sharing across platforms. These evolutionary advancements aim to deliver seamless, context-aware visual information, significantly boosting operational efficiency and safety in aerospace and automotive environments.

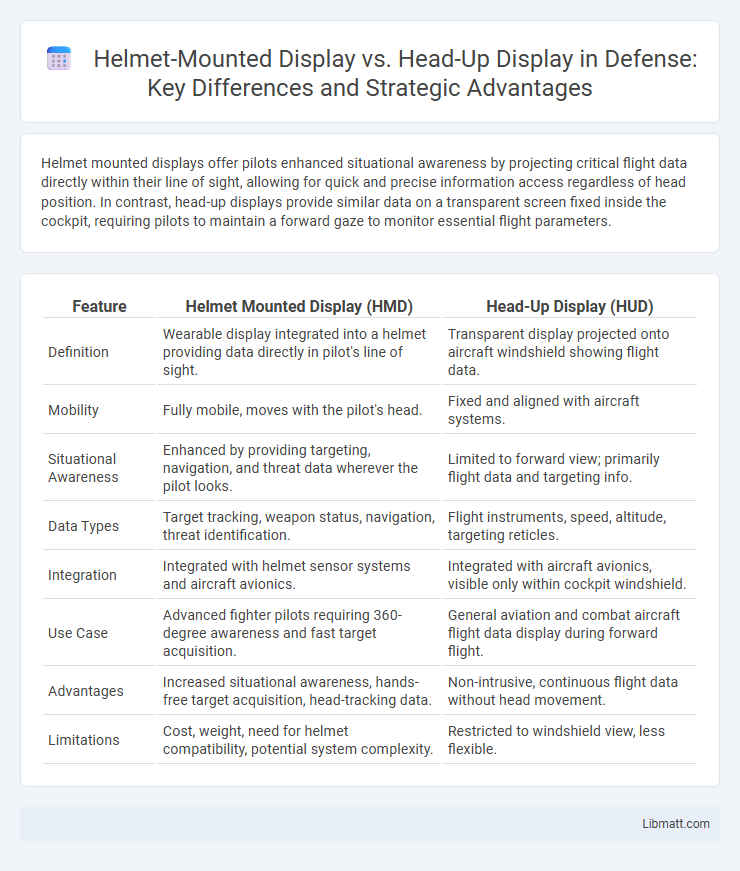

Helmet mounted display vs Head-up display Infographic
