libmatt.com Synthetic Aperture Radar (SAR) generates high-resolution images by moving the radar antenna to simulate a large aperture, while Inverse SAR (ISAR) relies on the motion of the target itself to produce detailed images. Understanding the distinctions enables you to select the appropriate radar imaging technique for applications like surveillance or target identification.
Table of Comparison
| Feature | Synthetic Aperture Radar (SAR) | Inverse Synthetic Aperture Radar (ISAR) |
|---|---|---|
| Operational Principle | Platform moves to generate a large antenna aperture | Target motion used to create the aperture while radar platform is stationary |
| Target Type | Static or slow-moving targets on ground or sea | Moving targets, typically maritime and airborne objects |
| Image Formation | Combines radar echoes over time to synthesize high-resolution images | Uses Doppler shifts from target rotation to generate detailed images |
| Application | Terrain mapping, surveillance, battlefield reconnaissance | Target identification, tracking, classification of moving targets |
| Resolution | High spatial resolution, dependent on platform velocity and aperture size | High resolution in cross-range dimension from target motion |
| Platform Types | Airborne and satellite radars | Shipborne, airborne, or ground radars observing moving targets |
Introduction to Synthetic Aperture Radar (SAR) and Inverse SAR (ISAR)
Synthetic Aperture Radar (SAR) utilizes the motion of the radar antenna over a target area to create high-resolution images by synthesizing a large antenna aperture. Inverse SAR (ISAR) exploits the motion of the target itself, such as an aircraft or ship, to generate detailed radar images from backscattered signals. Both SAR and ISAR provide crucial remote sensing capabilities, with SAR favoring stationary or slowly moving platforms and ISAR optimized for imaging dynamically moving objects.
Fundamental Principles of SAR
Synthetic Aperture Radar (SAR) uses the motion of the radar antenna over a target region to create high-resolution images by combining radar pulses over time, simulating a large antenna aperture. Inverse SAR (ISAR) leverages the relative motion between the target and the radar, typically with a stationary radar platform and a moving target, to achieve similar high-resolution imaging. Your choice between SAR and ISAR depends on whether the radar or the target is mobile, fundamentally influencing how Doppler shifts are processed to produce detailed spatial data.
Core Concepts of ISAR
Inverse Synthetic Aperture Radar (ISAR) utilizes the relative motion between the target and the radar to generate high-resolution two-dimensional images of moving objects, unlike Synthetic Aperture Radar (SAR), which relies on the radar platform's motion. ISAR core concepts include exploiting the Doppler frequency shifts caused by the target's rotation to map scatterers in the cross-range dimension with fine detail. This technique enables imaging of maritime vessels, aircraft, and space debris by resolving their structure despite complex target maneuvers.
Key Differences Between SAR and ISAR
Synthetic Aperture Radar (SAR) creates high-resolution images by moving the radar antenna relative to a stationary target, while Inverse Synthetic Aperture Radar (ISAR) generates images by exploiting the target's own motion. SAR is commonly used for mapping fixed terrain or structures, whereas ISAR is specialized in imaging moving targets like ships or aircraft. Your choice between SAR and ISAR depends on whether the radar platform or the target is in motion to generate detailed radar images.
Imaging Techniques: SAR vs ISAR
Synthetic Aperture Radar (SAR) utilizes the motion of the radar antenna over a target area to create high-resolution images by synthesizing a larger antenna aperture, ideal for ground mapping and stationary objects. Inverse Synthetic Aperture Radar (ISAR) relies on the motion of the target itself to generate images, making it effective for imaging moving targets such as ships or aircraft. Your choice between SAR and ISAR depends on whether the radar platform or the target is in motion, influencing image resolution and application suitability.
Applications of Synthetic Aperture Radar
Synthetic Aperture Radar (SAR) is widely used in Earth observation, including surface mapping, environmental monitoring, and disaster management, due to its ability to produce high-resolution images regardless of weather or lighting conditions. Inverse SAR primarily facilitates target imaging from a moving platform, enhancing reconnaissance and surveillance capabilities by reconstructing detailed two-dimensional target profiles. SAR's versatility enables applications in agriculture for crop monitoring, in military operations for terrain analysis, and in maritime surveillance to detect ships and oil spills.
Applications of Inverse Synthetic Aperture Radar
Inverse Synthetic Aperture Radar (ISAR) is primarily used for imaging moving targets such as ships, aircraft, and space debris by exploiting their motion to generate high-resolution radar images. Its applications span maritime surveillance, target identification, and non-cooperative target recognition in defense and security. ISAR plays a critical role in tracking and classifying objects in complex environments where conventional Synthetic Aperture Radar (SAR) is less effective.
Advantages and Limitations of SAR
Synthetic aperture radar (SAR) offers high-resolution imaging capabilities regardless of weather or lighting conditions, making it invaluable for remote sensing and reconnaissance. The inherent advantage of SAR lies in its ability to capture wide-area images with fine spatial resolution by synthesizing a large antenna aperture through platform movement. However, SAR faces limitations such as sensitivity to motion errors, complex signal processing requirements, and challenges in interpreting speckle noise, which can affect image clarity and accuracy.
Advantages and Limitations of ISAR
Inverse Synthetic Aperture Radar (ISAR) offers advantages such as the ability to generate high-resolution images of moving targets by exploiting the target's own motion, making it highly effective for maritime and airborne surveillance. ISAR can capture detailed structural information of targets without requiring the radar platform to move, unlike Synthetic Aperture Radar (SAR), which relies on platform motion for imaging. However, ISAR's accuracy can be limited by complex target motion, speckle noise, and the need for precise motion compensation algorithms to avoid image blurring, presenting challenges for reliable interpretation in dynamic environments.
Future Trends in SAR and ISAR Technology
Future trends in Synthetic Aperture Radar (SAR) and Inverse SAR (ISAR) technology emphasize enhanced resolution, real-time imaging capabilities, and integration with AI-driven data analysis. Advances in compact, multi-frequency SAR and ISAR sensors will enable more precise, adaptive surveillance and environmental monitoring. Your ability to leverage these innovations will improve target detection accuracy and operational efficiency in both civilian and defense applications.

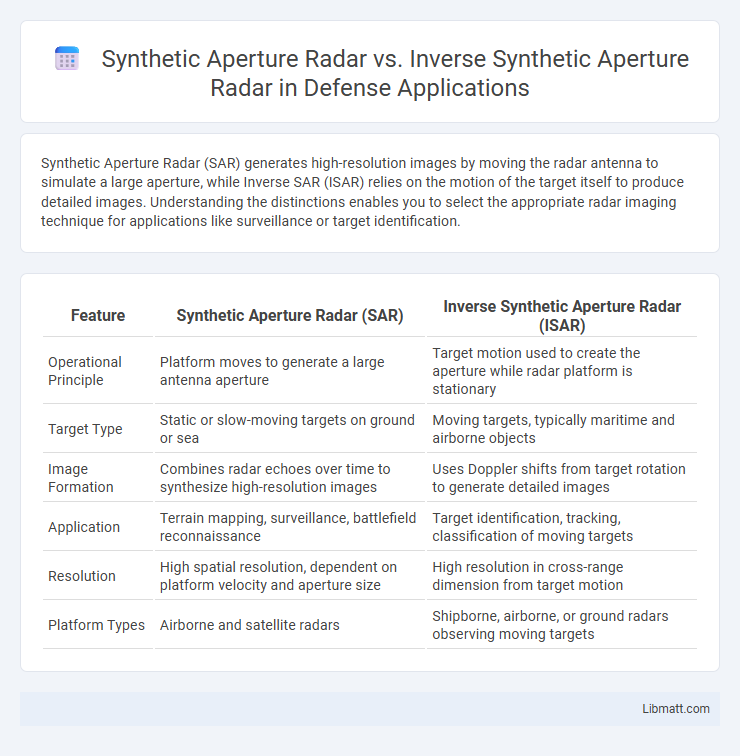

synthetic aperture radar vs inverse SAR Infographic
