libmatt.com Cryogenic fuel, stored at extremely low temperatures, offers high energy density and efficiency for rocket propulsion but demands complex insulation and handling systems. Hypergolic fuel ignites spontaneously upon contact with an oxidizer, providing reliable and immediate ignition for your spacecraft, though it is highly toxic and requires careful management.
Table of Comparison
| Aspect | Cryogenic Fuel | Hypergolic Fuel |
|---|---|---|
| Composition | Liquid oxygen (LOX) + liquid hydrogen or other cryogens | Hydrazine, Unsymmetrical Dimethylhydrazine (UDMH), Nitrogen Tetroxide (N2O4) |
| Storage Temperature | Extremely low (below -150degC) | Ambient temperature stable |
| Ignition | Requires external ignition source | Spontaneous ignition on contact |
| Handling Safety | Requires cryogenic infrastructure, lower toxicity | Toxic, highly corrosive, hazards in handling |
| Performance (Specific Impulse) | High (350-450 s) | Moderate (280-320 s) |
| Density | Low density, bulky tanks | High density, compact storage |
| Use Cases | Space launch vehicles, upper stages | Missile systems, spacecraft maneuvering thrusters |
| Storage Duration | Limited, boil-off losses | Long-term stable storage |
Introduction to Rocket Fuels
Cryogenic fuel, typically consisting of liquid hydrogen and liquid oxygen, offers high efficiency and specific impulse due to its low temperature and high energy content, making it ideal for space missions requiring maximum thrust and long burn times. Hypergolic fuel, composed of chemicals that ignite spontaneously upon contact, provides reliable ignition and easier engine restart capabilities, crucial for orbital maneuvers and spacecraft docking. Your choice between these fuels depends on mission requirements, balancing performance, handling complexity, and safety considerations.
What Are Cryogenic Fuels?
Cryogenic fuels are liquefied gases stored at extremely low temperatures, such as liquid hydrogen and liquid oxygen, used primarily for rocket propulsion due to their high energy efficiency and specific impulse. These fuels require specialized insulated tanks to maintain temperatures below -150degC, preventing rapid evaporation and ensuring stability during launch. Your choice of cryogenic fuels can significantly enhance mission performance by providing greater thrust and cleaner combustion compared to other propellants.
What Are Hypergolic Fuels?
Hypergolic fuels are a class of propellants that ignite spontaneously upon contact between the fuel and an oxidizer, eliminating the need for an external ignition source. They are commonly used in spacecraft thrusters and orbital maneuvers due to their reliable and instantaneous ignition properties. Understanding hypergolic fuels is essential for evaluating propulsion systems where rapid and dependable engine starts are critical for mission success.
Key Differences Between Cryogenic and Hypergolic Fuels
Cryogenic fuels, such as liquid hydrogen and oxygen, are stored at extremely low temperatures and require complex insulation systems, while hypergolic fuels ignite spontaneously upon contact without external ignition sources. Cryogenic fuels offer higher specific impulse, making them more efficient for long-duration space missions, whereas hypergolic fuels are favored for their reliability and simplicity in engine starts. Understanding these key differences helps you choose the appropriate propellant for specific rocket propulsion needs.
Energy Density and Performance Comparison
Cryogenic fuels such as liquid hydrogen offer higher specific impulse, reaching up to 450 seconds, compared to hypergolic fuels like hydrazine, which typically achieve around 320 seconds, providing greater efficiency in rocket propulsion. Despite lower density, cryogenic fuels have superior energy density per unit mass but require complex storage due to low temperatures, whereas hypergolic fuels have higher volumetric energy density and ignite spontaneously on contact, enhancing reliability in engine ignition. The trade-off between cryogenic and hypergolic fuels centers on maximizing performance efficiency versus operational simplicity and storage stability in aerospace applications.
Handling, Storage, and Safety Considerations
Cryogenic fuels require extremely low temperatures for storage, demanding insulated tanks and continuous cooling systems to maintain their liquid state, which increases handling complexity and risks of frostbite or tank rupture. In contrast, hypergolic fuels ignite spontaneously upon contact with oxidizers, simplifying engine start procedures but necessitating stringent safety protocols due to their high toxicity and corrosiveness. Proper ventilation, protective equipment, and spill containment measures are critical for hypergolic fuels, whereas cryogenic fuels emphasize thermal insulation and pressure relief systems to mitigate boil-off and leaks.
Reliability and Ignition Characteristics
Cryogenic fuels, such as liquid hydrogen and liquid oxygen, offer high performance but require complex ignition systems due to their extremely low temperatures and risk of combustion instability. Hypergolic fuels ignite spontaneously upon contact, ensuring reliable engine starts without an external ignition source, making them ideal for critical spacecraft maneuvers and missions requiring repeatable restarts. Your choice between these propellants will depend on mission reliability priorities, with hypergolic fuels providing consistent ignition and cryogenic fuels demanding precise handling for optimal performance.
Applications in Modern Spacecraft
Cryogenic fuel, composed of liquefied gases like liquid hydrogen and oxygen, is widely used in modern launch vehicles such as NASA's Space Launch System (SLS) and SpaceX's Starship due to its high energy efficiency and performance in upper-stage engines. Hypergolic fuel, which ignites spontaneously upon contact, remains vital for spacecraft maneuvering and orbital adjustments, powering reaction control systems and lunar landers like those used in Apollo missions and current spacecraft like Dragon and Orion. Your choice between cryogenic and hypergolic fuels significantly impacts mission design, balancing factors like ignition reliability, storage complexity, and thrust requirements.
Cost and Production Implications
Cryogenic fuels typically have higher production and storage costs due to their requirement for ultra-low temperatures and specialized infrastructure, making them cost-intensive for large-scale use. Hypergolic fuels, although easier to store at ambient conditions and igniting spontaneously on contact, often involve toxic and corrosive chemicals, increasing handling costs and safety measures. Your choice between these fuels will largely depend on budget constraints and mission requirements, balancing initial expense with operational complexity.
Future Trends in Rocket Propulsion Fuels
Cryogenic fuels, such as liquid hydrogen and oxygen, offer high specific impulse and are increasingly favored for next-generation reusable launch vehicles due to their efficiency and lower environmental impact. Hypergolic fuels ignite spontaneously upon contact, providing reliable ignition and storability, making them ideal for upper-stage engines and spacecraft maneuvering systems despite their toxicity and handling challenges. Your choice of propulsion fuel will depend on mission requirements, balancing performance, safety, and sustainability as the industry moves toward greener and more efficient rocket technologies.

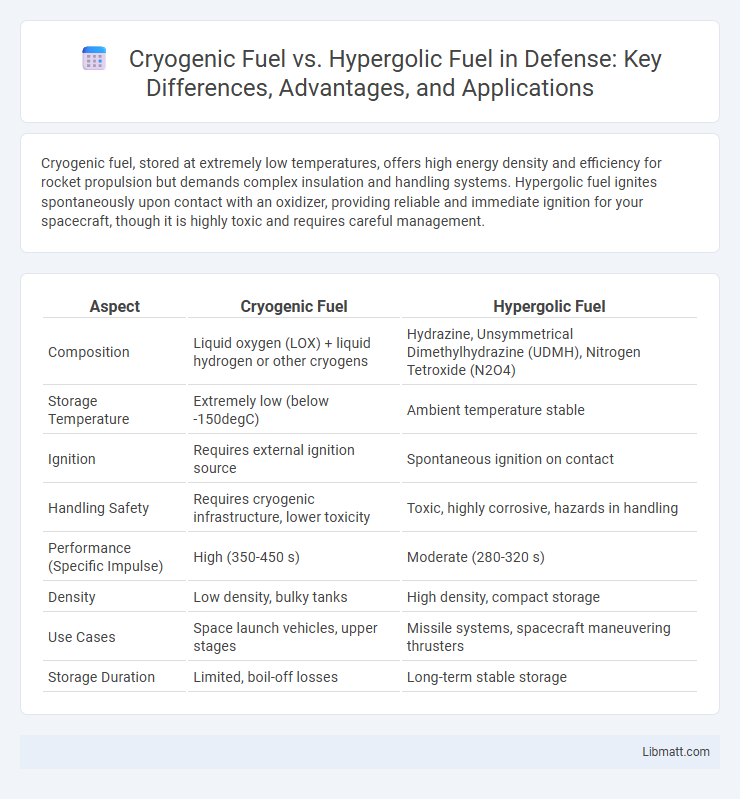

cryogenic fuel vs hypergolic fuel Infographic
