libmatt.com Fiber optic gyros provide higher sensitivity and durability by using light interference within fiber coils to detect angular velocity, making them more resistant to mechanical wear and vibrations than ring laser gyros, which rely on the Sagnac effect in a laser cavity with mirrors. Your choice depends on application needs: fiber optic gyros excel in compact, lightweight designs with precise measurement, while ring laser gyros offer robustness and stability for long-term navigation.

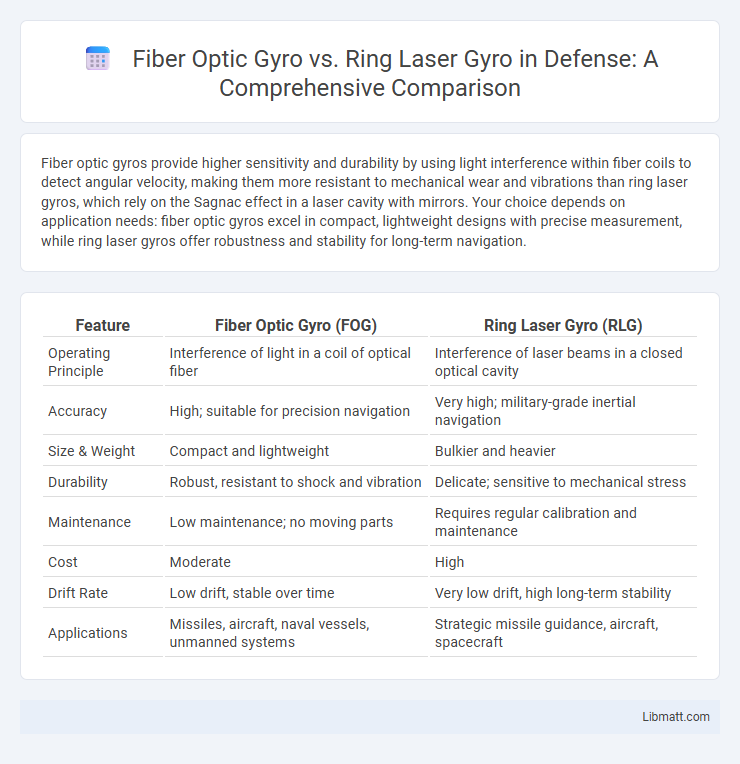

Table of Comparison
| Feature | Fiber Optic Gyro (FOG) | Ring Laser Gyro (RLG) |
|---|---|---|
| Operating Principle | Interference of light in a coil of optical fiber | Interference of laser beams in a closed optical cavity |
| Accuracy | High; suitable for precision navigation | Very high; military-grade inertial navigation |
| Size & Weight | Compact and lightweight | Bulkier and heavier |
| Durability | Robust, resistant to shock and vibration | Delicate; sensitive to mechanical stress |
| Maintenance | Low maintenance; no moving parts | Requires regular calibration and maintenance |
| Cost | Moderate | High |
| Drift Rate | Low drift, stable over time | Very low drift, high long-term stability |
| Applications | Missiles, aircraft, naval vessels, unmanned systems | Strategic missile guidance, aircraft, spacecraft |
Introduction to Fiber Optic and Ring Laser Gyros
Fiber optic gyros (FOGs) and ring laser gyros (RLGs) both measure angular velocity for navigation and stabilization using different technologies: FOGs utilize the interference of light traveling through a coil of optical fiber, while RLGs rely on the Sagnac effect within a closed-loop laser cavity. Fiber optic gyros offer advantages such as smaller size, higher reliability, and no moving parts, making them suitable for applications requiring robust and precise measurements. Your choice depends on factors like sensitivity, environmental conditions, and system size, with FOGs increasingly favored in modern aerospace and defense systems.
Basic Operating Principles
Fiber optic gyros (FOGs) operate based on the Sagnac effect, where the phase shift between two counter-propagating light beams in a fiber optic coil measures angular velocity. Ring laser gyros (RLGs) use the interference of laser beams traveling in opposite directions within a closed laser cavity to detect rotation through frequency shifts. Both technologies exploit the interference of light, but FOGs rely on optical fibers for beam propagation, while RLGs use laser cavities with mirrors.
Key Differences in Technology
Fiber optic gyros use light interference through fiber coils to detect angular velocity, while ring laser gyros rely on the interference of laser beams circulating in opposite directions within a closed cavity. The fiber optic gyro's signals are generated through the Sagnac effect in flexible optical fibers, offering high sensitivity and compact size. Your choice depends on factors like durability, sensitivity, and application environment, as ring laser gyros generally provide longer-term stability but are larger and more complex.
Accuracy and Performance Comparison
Fiber optic gyros (FOGs) provide higher accuracy and superior performance in dynamic environments compared to ring laser gyros (RLGs) due to their immunity to the lock-in phenomenon and no moving parts. FOGs exhibit lower bias instability and drift rates, typically in the range of 0.001deg/hr to 0.01deg/hr, while RLGs often show bias drifts around 0.01deg/hr to 0.1deg/hr. The enhanced reliability and precision of FOGs make them preferable for aerospace, navigation, and military applications requiring ultra-stable angular rate measurements.
Environmental Sensitivity and Reliability
Fiber optic gyros (FOGs) exhibit superior environmental sensitivity and reliability compared to ring laser gyros (RLGs) due to their solid-state design, which eliminates moving parts and mechanical wear. FOGs are less affected by temperature fluctuations, vibration, and electromagnetic interference, enhancing performance in harsh conditions. Ring laser gyros, while precise, are more vulnerable to environmental factors such as cavity misalignment and backscatter, potentially reducing operational reliability over time.
Size, Weight, and Power Consumption
Fiber optic gyros (FOGs) are generally smaller and lighter than ring laser gyros (RLGs), making them better suited for compact applications. FOGs consume less power due to their simpler design and lack of moving parts, enhancing energy efficiency in embedded systems. The lower size, weight, and power (SWaP) profile of fiber optic gyros enables their widespread use in aerospace and portable navigation devices.
Cost Factors and Economic Considerations
Fiber optic gyros (FOGs) generally have lower production costs compared to ring laser gyros (RLGs) due to simpler manufacturing processes and fewer moving parts. Maintenance expenses for FOGs are also reduced, making them more economical for long-term use in navigation systems. Your choice of gyro technology should consider both initial investment and operational costs to optimize overall economic efficiency.
Typical Applications in Industry
Fiber optic gyros (FOGs) are widely used in aerospace navigation systems, autonomous vehicles, and precision robotics due to their high sensitivity and resistance to electromagnetic interference. Ring laser gyros (RLGs) are primarily employed in military aircraft, missile guidance, and high-performance inertial navigation systems where ultra-precise angular velocity measurement is critical. Both technologies enable accurate rotational sensing but differ in cost and durability, influencing their selection based on specific industrial requirements.
Recent Innovations and Future Trends
Recent innovations in fiber optic gyros (FOGs) include advancements in photonic integrated circuits and enhanced signal processing algorithms, dramatically improving accuracy and reducing size and power consumption. Ring laser gyros (RLGs) are evolving with improved laser stabilization techniques and novel materials, enabling higher sensitivity and robustness in harsh environments. Your choice of gyro technology will benefit from future trends emphasizing miniaturization, cost reduction, and integration with inertial navigation systems for autonomous vehicles and aerospace applications.
Choosing the Right Gyro for Your Needs
Selecting between a fiber optic gyro (FOG) and a ring laser gyro (RLG) depends on your application's precision, size, and environmental requirements. FOGs offer high sensitivity and resistance to vibration, making them ideal for aerospace and navigation systems requiring compact, reliable sensors. For high-accuracy and stability in stationary environments like marine or inertial navigation systems, RLGs provide superior performance but may require more maintenance and larger installation space.
