libmatt.com HEAT rounds use a shaped charge to penetrate armor by focusing explosive energy into a high-velocity jet, making them effective against thick, rolled homogeneous armor. APFSDS rounds rely on kinetic energy with a long, dense penetrator to pierce armor through sheer impact force, offering superior performance against modern composite and reactive armor types.
Table of Comparison
| Feature | HEAT (High-Explosive Anti-Tank) | APFSDS (Armor-Piercing Fin-Stabilized Discarding Sabot) |
|---|---|---|
| Purpose | Penetrates armored targets using shaped charge explosive | Penetrates armor using kinetic energy with dense penetrator rod |
| Penetration Mechanism | Shaped charge jet melts through armor | High-velocity penetrator pierces through armor |
| Effective Against | Static and reactive armor, effective at all ranges | Heavy and composite armor, best at longer ranges |
| Range | Effective at short to medium ranges | Effective at medium to long ranges |
| Velocity | Low to moderate muzzle velocity | Very high muzzle velocity (above 1,500 m/s) |
| Armor Penetration | Moderate, reduced effectiveness against spaced/reactive armor | High, capable of defeating modern composite and ERA armor |
| Projectile Composition | Shaped charge with explosive filler, no penetrator rod | Long, dense penetrator rod with fin stabilization and discardable sabot |
| Typical Use Platform | Anti-tank rockets, infantry portable launchers, and tank missiles | Main battle tank kinetic energy rounds |
| Cost | Lower cost per round | Higher cost due to advanced materials and precision manufacturing |
Introduction to Modern Anti-Tank Ammunition
Modern anti-tank ammunition primarily consists of HEAT (High-Explosive Anti-Tank) and APFSDS (Armor-Piercing Fin-Stabilized Discarding Sabot) rounds, each designed to defeat armored vehicles using different mechanisms. HEAT rounds use a shaped charge to focus explosive energy into a metal jet, capable of penetrating thick armor regardless of projectile velocity, making them effective against various tank designs. In contrast, APFSDS rounds rely on kinetic energy, utilizing long, dense penetrators traveling at high speeds to pierce armor through sheer force, making them highly effective against modern composite and reactive armor systems.
Overview of HEAT (High-Explosive Anti-Tank) Rounds
HEAT (High-Explosive Anti-Tank) rounds utilize a shaped charge to create a high-velocity jet of metal that penetrates armor through a process called the Munroe effect. These rounds are effective against thick, armored targets due to their ability to focus explosive energy on a small point, causing localized armor failure. Unlike kinetic energy penetrators like APFSDS, HEAT rounds do not rely on projectile velocity but on the chemical energy of the explosive to defeat armor.
Fundamentals of APFSDS (Armor-Piercing Fin-Stabilized Discarding Sabot)
APFSDS (Armor-Piercing Fin-Stabilized Discarding Sabot) rounds utilize a long, dense penetrator rod made typically of depleted uranium or tungsten to pierce armor through kinetic energy rather than chemical explosive forces. The projectile is fin-stabilized to maintain flight accuracy and velocity, while the sabot discards after exiting the barrel to reduce drag and increase penetration effectiveness. APFSDS is designed to defeat modern composite and reactive armors by concentrating immense kinetic energy on a small impact area, outperforming traditional HEAT warheads in armor penetration.
Design and Mechanism: HEAT vs APFSDS
HEAT (High-Explosive Anti-Tank) rounds use a shaped charge to create a high-velocity jet of metal capable of penetrating armor by melting through it, relying on chemical energy rather than kinetic force. APFSDS (Armor-Piercing Fin-Stabilized Discarding Sabot) rounds utilize kinetic energy, featuring a long, dense penetrator dart stabilized by fins that discards the sabot after firing to maximize velocity and armor penetration. Your choice between HEAT and APFSDS depends on the target type and engagement range, with HEAT excelling against reactive armor and APFSDS optimized for penetrating thick, composite armor at higher velocities.
Penetration Principles: Shaped Charge vs Kinetic Energy
HEAT (High-Explosive Anti-Tank) rounds utilize a shaped charge to create a high-velocity jet of metal that penetrates armor through focused chemical energy, relying on the Munroe effect to concentrate explosive force into a narrow jet. APFSDS (Armor-Piercing Fin-Stabilized Discarding Sabot) employs kinetic energy penetration by firing a long, dense penetrator rod at extremely high velocity to physically breach armor via momentum and material hardness. HEAT effectiveness decreases with spaced or composite armor due to jet disruption, while APFSDS penetration improves with increased velocity and penetrator length but is limited by projectile material strength and armor brittleness.
Effectiveness Against Modern Armor Types
HEAT (High-Explosive Anti-Tank) rounds utilize shaped charges to penetrate armor by focusing explosive energy, making them effective against composite and reactive armor but less so against advanced multilayered or spaced armor found in modern tanks. APFSDS (Armor-Piercing Fin-Stabilized Discarding Sabot) rounds rely on kinetic energy and dense penetrators like depleted uranium or tungsten to defeat armor, offering superior performance against modern composite, reactive, and modular armor systems. Modern armor developments, including explosive reactive armor (ERA) and active protection systems (APS), challenge HEAT rounds more significantly, while APFSDS rounds maintain higher penetration efficacy due to their velocity and material properties.
Battlefield Roles and Tactical Applications
HEAT rounds excel in close to medium-range engagements by delivering high-explosive anti-tank capabilities, making them effective against heavily armored vehicles and fortifications. APFSDS projectiles are designed for long-range precision and penetration, ideal for defeating advanced armor on main battle tanks during high-speed maneuvers. Your choice between HEAT and APFSDS depends on specific battlefield roles, with HEAT suited for versatile, multi-target scenarios and APFSDS optimal for direct tank-to-tank combat.
Advantages and Limitations of HEAT
HEAT (High-Explosive Anti-Tank) rounds offer the advantage of effective armor penetration through shaped charges that focus explosive energy to pierce thick armor, making them highly effective against heavily armored targets. However, HEAT rounds have limitations such as reduced effectiveness against reactive armor and spaced armor, and their penetration capability does not significantly increase with higher impact velocity. Your choice of HEAT ammunition is ideal for engaging stationary or lightly armored vehicles but may require complementary munitions like APFSDS for defeating advanced main battle tanks.
Strengths and Weaknesses of APFSDS
APFSDS (Armor-Piercing Fin-Stabilized Discarding Sabot) excels in penetrating advanced composite and reactive armor due to its high velocity and dense tungsten or depleted uranium penetrator. It has precise long-range accuracy and superior kinetic energy penetration compared to HEAT (High-Explosive Anti-Tank) rounds, which rely on shaped charges effective against outdated armor types. Your choice of APFSDS is ideal for defeating modern armored vehicles, but it is less effective against non-armored targets and less versatile in close-range or urban combat scenarios.
Future Trends in Anti-Armor Munitions
Future trends in anti-armor munitions emphasize the evolution of High-Explosive Anti-Tank (HEAT) and Armor-Piercing Fin-Stabilized Discarding Sabot (APFSDS) rounds with advances in tandem warhead technology and composite penetrators. Research focuses on enhancing penetration capabilities against reactive and composite armor, leveraging materials such as depleted uranium and tungsten alloys in APFSDS, while HEAT rounds integrate multipurpose effects to counteract active protection systems. The integration of smart guidance systems and electromagnetic propulsion also promises to improve targeting accuracy and kinetic energy delivery in next-generation anti-armor weapons.

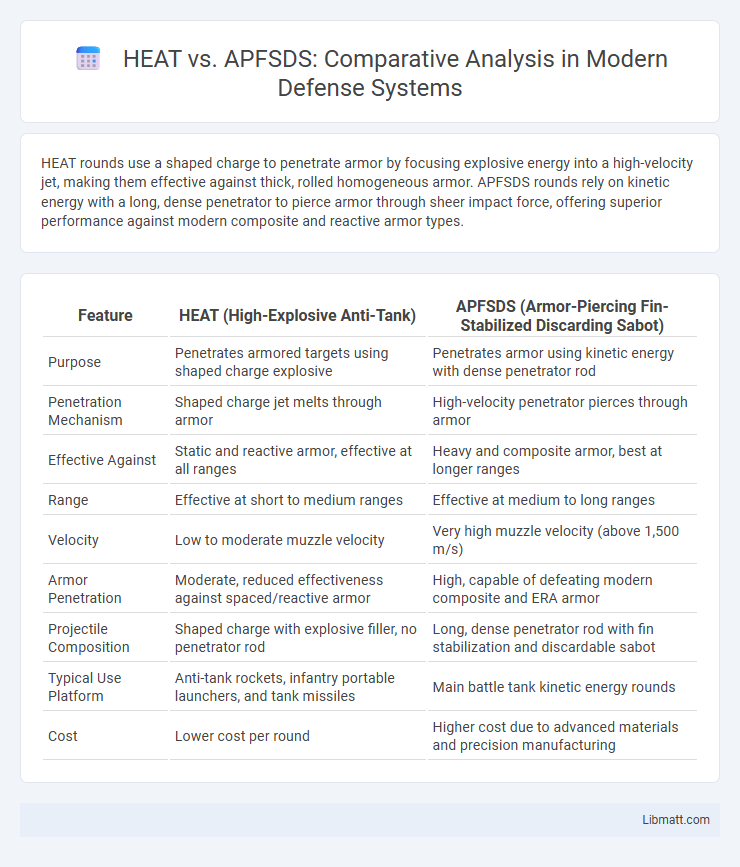

HEAT vs APFSDS Infographic
