libmatt.com Hull sonar is integrated into the ship's structure, providing active and passive detection of nearby underwater objects with limited range and reduced sensitivity to distant targets. Towed array sonar, deployed behind the vessel, offers enhanced passive detection capabilities over greater distances by minimizing self-noise and allowing your submarine or ship to identify quieter, more distant contacts.
Table of Comparison
| Feature | Hull Sonar | Towed Array Sonar |
|---|---|---|
| Deployment | Mounted directly on submarine hull | Towed behind the vessel on a cable |
| Sensitivity | Moderate detection range and resolution | High sensitivity with long detection range |
| Noise Interference | More affected by own-ship noise | Reduced noise from source vessel improves clarity |
| Operational Use | Primary for active sonar and navigation | Designed mainly for passive long-range detection |
| Frequency Range | Broad frequency for both active and passive modes | Typically narrowband passive sonar frequencies |
| Maintenance | Fixed and easier to maintain | Requires handling and care during deployment/retrieval |
| Vulnerability | Exposed to damage from collisions or combat | Less vulnerable due to distance from hull |
Introduction to Sonar Systems
Hull sonar systems are fixed to the ship's hull and provide high-frequency, short-range detection with rapid response capabilities, ideal for navigation and obstacle avoidance. Towed array sonar consists of a long, flexible array of sensors trailed behind a vessel, offering low-frequency, long-range detection with enhanced directional resolution for submarine tracking. Both systems complement each other by covering different acoustic ranges and operational needs in naval sonar technology.
Overview of Hull Sonar
Hull sonar is a fixed sonar system mounted directly on the ship's hull, providing continuous active and passive acoustic monitoring of the surrounding underwater environment. It excels in detecting nearby submarines, mines, and underwater obstacles by emitting sound pulses and analyzing the returned echoes. Compared to towed array sonar, hull sonar offers immediate data without deployment delays but is limited by hull interference and reduced sensitivity at greater depths.
Overview of Towed Array Sonar
Towed array sonar consists of a long, flexible array of hydrophones trailed behind a vessel, designed to detect and track underwater sounds with high sensitivity and precision. Unlike hull-mounted sonar, which is fixed to the ship and subject to its noise and turbulence, towed arrays benefit from reduced self-noise and enhanced detection range, especially in deeper waters. You will find towed array sonar invaluable for submarine detection and anti-submarine warfare due to its superior signal clarity and spatial resolution.
Key Differences Between Hull Sonar and Towed Array Sonar
Hull sonar is mounted directly on the ship's hull, providing active and passive sonar capabilities for short to medium range detection, while towed array sonar is deployed behind the vessel, utilizing passive sensors to detect faint sounds over long distances. Hull sonar offers better performance in shallow waters and is effective for quick target acquisition, whereas towed array sonar excels in deep water and is optimized for stealthy, long-range submarine detection. Noise interference from the ship limits hull sonar effectiveness, whereas the towed array's distance from the vessel reduces self-noise, enhancing signal clarity.
Detection Capabilities and Range
Hull sonar provides moderate detection capabilities and effective short-to-medium range performance, ideal for coastal and shallow waters due to its fixed position on the vessel's hull. Towed array sonar significantly enhances detection range and sensitivity by trailing behind the ship, minimizing self-noise interference and enabling long-range detection of quiet submarines and surface vessels. Advanced towed arrays offer superior target resolution and tracking in deep ocean environments compared to hull-mounted systems.
Operational Strengths and Limitations
Hull sonars offer reliable, continuous detection with stable positioning directly on the vessel, making them ideal for shallow to moderate depths, but they are prone to self-noise and limited range due to hull interference. Towed array sonars provide superior long-range detection and enhanced target resolution by operating away from ship noise, particularly effective in deep water, yet they suffer from deployment complexity and reduced maneuverability. Both systems complement each other, with hull sonars excelling in near-field detection and towed arrays dominating in open ocean antisubmarine warfare environments.
Applications in Modern Naval Warfare
Hull sonar systems provide effective near-field detection and tracking of submarines and underwater threats in littoral and coastal environments, essential for anti-submarine warfare (ASW) during close-range naval operations. Towed array sonar offers superior long-range passive detection capabilities, enabling naval vessels to identify quieter submarines at extended distances and enhancing strategic situational awareness in deep-water open ocean scenarios. Integration of both sonar types in modern naval warfare maximizes detection accuracy, improves threat classification, and supports multi-dimensional ASW tactics for fleet protection.
Maintenance and Deployment Considerations
Hull sonar systems require less complex deployment mechanisms as they are fixed to the submarine's hull, resulting in easier routine maintenance and quicker readiness for use. Towed array sonar demands careful handling during deployment and retrieval to avoid damage, with maintenance often involving intricate inspection and repair of long cable arrays. Your choice between these sonar types impacts operational efficiency, especially in terms of maintenance logistics and deployment speed.
Cost and Resource Implications
Hull sonar systems typically have lower initial costs and require less complex installation compared to towed array sonars, making them more budget-friendly for surface vessels. Towed array sonar demands significant investment in deployment equipment, maintenance, and specialized crew training, increasing long-term operational expenses. Resource allocation for towed arrays involves more extensive support infrastructure, including cable management systems and enhanced vessel modifications, driving up overall expenditure beyond that of hull-mounted solutions.
Choosing the Right Sonar System
Choosing the right sonar system depends on mission requirements and operating environment; hull sonar offers real-time detection with fixed placement on a vessel, ideal for shallow waters and high maneuverability. Towed array sonar provides enhanced detection range and reduced self-noise, suitable for deep-water operations and long-range submarine tracking. Evaluating factors such as noise interference, deployment complexity, and target detection capabilities ensures optimal sonar performance for specific naval applications.

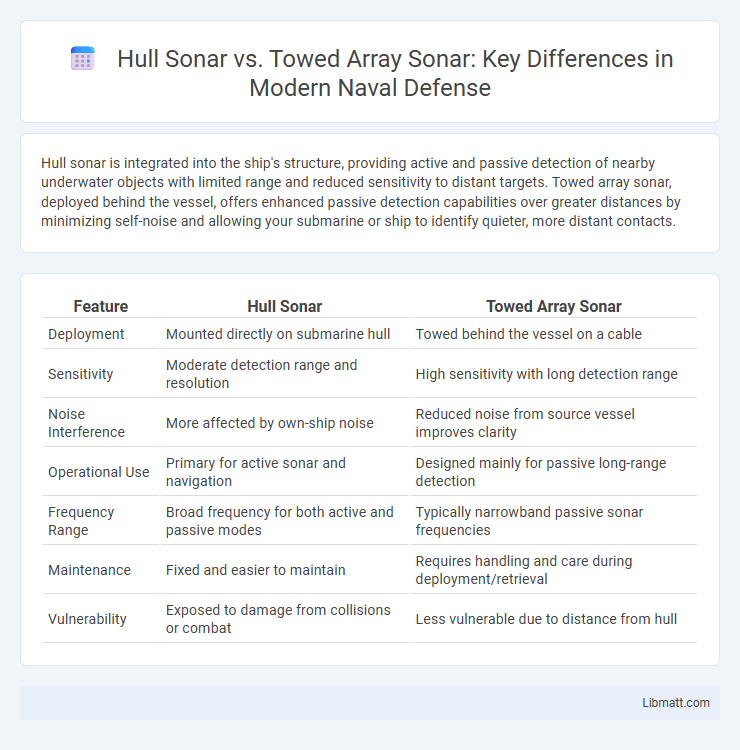

hull sonar vs towed array sonar Infographic
