libmatt.com Shipborne radar provides your vessel with real-time situational awareness over the maritime environment, offering mobility and adaptability in dynamic sea conditions. Ground-based radar delivers fixed, high-altitude coverage for broad area surveillance and airspace management, excelling in range and stability but lacking the flexibility of shipborne systems.
Table of Comparison
| Feature | Shipborne Radar | Ground-Based Radar |
|---|---|---|
| Deployment | Installed on naval vessels, mobile at sea | Fixed or transportable on land |
| Range | Medium to long, affected by sea conditions | Long to very long, optimized by elevation and location |
| Mobility | High mobility, operates during naval missions | Low mobility, primarily stationary |
| Purpose | Air and surface target detection, missile guidance | Air defense, early warning, artillery fire control |
| Environmental Impact | Exposed to maritime weather, corrosion risk | Exposed to land weather, easier maintenance |
| Power Requirements | Ship power supply, limited energy resources | Ground power supply, higher energy availability |
| Survivability | Designed for naval combat, shock and salt tolerant | Hardened against ground attacks, easier concealment |
| Coverage | 360deg rotation for all-around detection at sea | Sector or 360deg, depends on radar type and role |
| Examples | AN/SPY-1, Sea Giraffe AMB | AN/TPS-75, S-400 radar systems |
Introduction to Shipborne and Ground-Based Radar
Shipborne radar operates on naval vessels to detect and track maritime and aerial targets, offering mobility and real-time situational awareness on the high seas. Ground-based radar systems provide fixed, extensive range coverage for air traffic control, missile defense, and weather monitoring, leveraging stable installation for enhanced precision. Your choice between shipborne and ground-based radar depends on mission requirements for mobility, range, and environmental adaptability.
Core Principles of Radar Technology
Shipborne radar and ground-based radar both operate on the core principle of emitting radio waves and detecting their reflections from objects to determine range, speed, and direction. Shipborne radar systems are optimized for maritime environments, often incorporating advanced stabilization and signal processing to compensate for vessel movement and sea clutter. In contrast, ground-based radar systems benefit from fixed installations that allow for larger antenna arrays and higher power outputs, enhancing detection range and resolution for air traffic control and weather monitoring.
Design Differences: Shipborne vs Ground-Based Radar
Shipborne radar systems are engineered with compact, corrosion-resistant materials and stabilized platforms to counteract constant ship motion and harsh marine environments, ensuring accurate target detection at sea. Ground-based radar designs emphasize larger antennas and higher power outputs to maximize range and resolution over fixed, stable platforms, often incorporating advanced signal processing for terrain clutter suppression. The contrast in environmental challenges and operational mobility directly influences the structural robustness, size, and stabilization technology deployed in each radar type.
Mobility and Deployment Flexibility
Shipborne radar systems offer superior mobility and deployment flexibility, enabling continuous operation in dynamic maritime environments and rapid repositioning as tactical situations evolve. Ground-based radar installations are typically fixed or semi-permanent, limiting their ability to relocate quickly and respond to changing threat vectors. This inherent mobility advantage of shipborne radars is critical for naval operations requiring real-time situational awareness across vast oceanic theaters.
Environmental Challenges and Adaptations
Shipborne radar systems face intense environmental challenges such as saltwater corrosion, constant motion from waves, and severe weather conditions, necessitating robust waterproofing and vibration stabilization technologies. Ground-based radar benefits from a more stable platform but must adapt to terrain obstacles, atmospheric attenuation, and urban electromagnetic interference through advanced signal processing and elevated mounting. Both radar systems utilize adaptive calibration and environmental sensors to maintain operational accuracy under their respective environmental stressors.
Detection Range and Coverage Capabilities
Shipborne radar systems typically offer enhanced detection range over water due to the radar's elevated position on the ship's mast and fewer obstructions, often reaching up to 250 nautical miles for large target detection. Ground-based radar benefits from higher power and larger antenna arrays, enabling broader coverage and better target resolution across diverse terrains, with ranges extending beyond 300 nautical miles in optimal conditions. Both radar types employ advanced signal processing to optimize coverage, but environmental factors such as sea clutter and terrain masking significantly influence their effective detection capabilities.
Target Tracking and Identification Features
Shipborne radar offers advanced target tracking and identification features optimized for maritime environments, including the ability to track fast-moving vessels and distinguish between multiple contacts over fluctuating sea conditions. Ground-based radar systems provide comprehensive coverage with higher stability for long-range target identification, often incorporating more powerful signal processing for accurate classification of aerial and terrestrial targets. Your choice between these radars depends on operational requirements, as shipborne radar excels in dynamic, close-range maritime tracking while ground-based systems dominate in broad surveillance and fixed-target monitoring.
Power Supply and Operational Sustainability
Shipborne radar systems rely on the vessel's onboard power generation, typically drawing from diesel generators or integrated power systems, which provide consistent energy supply crucial for sustained maritime operations. Ground-based radars access stable grid electricity or backup generators, ensuring high operational reliability with less dependency on limited fuel reserves compared to shipborne units. The sustainability of shipborne radar power is influenced by vessel endurance and fuel capacity, whereas ground-based radar benefits from continuous power with minimal interruptions in fixed installations.
Applications in Military and Civilian Sectors
Shipborne radar systems excel in maritime surveillance, target tracking, and navigation support for naval vessels, enhancing situational awareness in complex sea environments. Ground-based radar plays a crucial role in airspace monitoring, missile defense, and weather forecasting, providing comprehensive coverage and early warning capabilities over land territories. Both technologies contribute significantly to civilian applications such as air traffic control and disaster management, leveraging their unique deployment environments to optimize detection and response efforts.
Comparative Advantages and Limitations
Shipborne radar offers superior mobility and real-time maritime situational awareness, enabling effective detection of surface and aerial targets in dynamic ocean environments, while ground-based radar provides extensive coverage and higher stability with less interference from sea conditions. Limitations of shipborne radar include vulnerability to sea clutter and limited range compared to fixed installations, whereas ground-based radar systems face challenges in detecting low-flying targets due to terrain masking and require significant infrastructure. Optimal radar deployment often integrates both systems, leveraging shipborne radar's agility and ground-based radar's persistent surveillance to enhance overall defense capabilities.

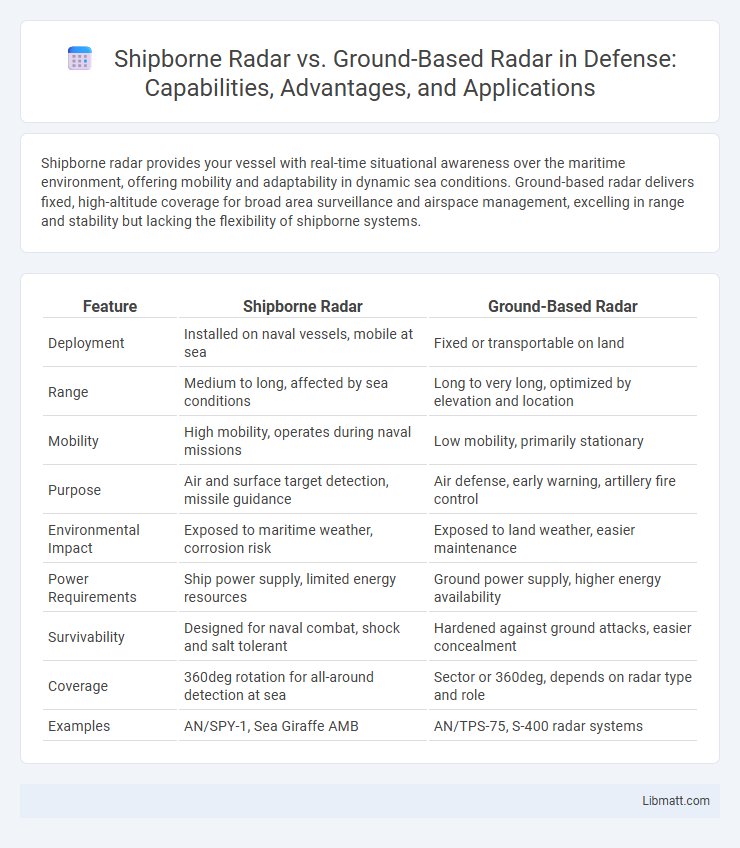

shipborne radar vs ground-based radar Infographic
