libmatt.com Reactive power measures the energy stored and released by inductive or capacitive elements in an AC circuit, while real power represents the actual work done or energy consumed by resistive loads. Understanding the difference helps you optimize electrical system efficiency and reduce energy losses.
Table of Comparison
| Aspect | Reactive Power (kVAR) | Real Power (kW) |
|---|---|---|
| Definition | Power stored and released by inductors and capacitors | Power actually consumed or converted into work |
| Measurement Unit | kilovolt-amperes reactive (kVAR) | kilowatts (kW) |
| Function | Maintains voltage levels for energy transfer | Performs useful work like lighting and heating |
| Phase Relationship | Out of phase with voltage, leads or lags | In phase with voltage |
| Impact on Energy Cost | Can increase losses, no direct energy cost | Directly affects billing, consumes energy |
| Source | Inductive and capacitive loads | Resistive loads |
| Role in Power Factor | Causes low power factor | Contributes to high power factor |
Introduction to Real Power and Reactive Power
Real power, measured in watts (W), represents the actual energy consumed by electrical devices to perform work, such as lighting or heating. Reactive power, expressed in volt-amperes reactive (VAR), oscillates between the source and load, sustaining the magnetic and electric fields necessary for equipment like motors and transformers to operate efficiently. Understanding the distinction between these powers is essential for optimizing power systems and maintaining voltage stability in alternating current (AC) networks.
Defining Real Power: Understanding Active Energy
Real power, also known as active power, measures the actual energy consumed by electrical devices to perform work, expressed in watts (W). This energy directly contributes to the operation of motors, lights, and appliances by converting electrical energy into mechanical motion, heat, or light. Understanding real power is essential for accurate billing and efficient energy management in power systems.
Explaining Reactive Power: The Invisible Component
Reactive power represents the invisible energy oscillating between the source and load, essential for maintaining voltage levels and enabling the functioning of inductive devices like motors and transformers. Unlike real power, which performs actual work measured in watts (W), reactive power is measured in volt-amperes reactive (VAR) and does not contribute to net energy consumption. Managing reactive power efficiently helps optimize your power system's stability and reduces energy losses in electrical networks.
Mathematical Representation: Real vs Reactive Power
Real power (P), measured in watts (W), represents the actual energy consumed and is mathematically expressed as P = VI cos(th), where V is voltage, I is current, and th is the phase angle between them. Reactive power (Q), measured in volt-amperes reactive (VAR), represents energy stored and released in the system's inductive and capacitive components, calculated as Q = VI sin(th). The relationship between real power, reactive power, and apparent power (S) forms a right triangle represented by S2 = P2 + Q2, central to AC circuit analysis.
The Role of Power Factor in Electrical Systems
Power factor plays a crucial role in electrical systems by measuring the efficiency with which real power is converted from apparent power, reflecting the phase difference between voltage and current. Reactive power, caused by inductive or capacitive loads, does not perform useful work but contributes to increased current flow, leading to energy losses and higher demand charges. Improving power factor by minimizing reactive power enhances system efficiency, reduces transmission losses, and optimizes the utilization of electrical infrastructure.
Impact of Real and Reactive Power on Efficiency
Real power, measured in watts (W), performs actual work in electrical systems and directly affects system efficiency by delivering usable energy to loads. Reactive power, measured in volt-amperes reactive (VAR), does not perform work but supports voltage levels necessary for equipment operation, influencing system stability but causing additional losses and reducing overall efficiency. Managing the balance between real and reactive power through power factor correction enhances energy efficiency and reduces transmission losses in power networks.
Measuring Real and Reactive Power in Circuits
Measuring real power in circuits involves using wattmeters that capture the actual energy consumed by resistive loads, calculated as the product of voltage, current, and the cosine of the phase angle (power factor). Reactive power measurement requires instruments like VAR meters, which determine the power stored and released by inductive or capacitive components, calculated using the sine of the phase angle. Accurate assessment of both powers demands synchronized voltage and current readings to analyze phase differences critical for power factor correction and efficient energy management.
Applications and Importance of Reactive Power
Reactive power is essential in maintaining voltage levels necessary for the efficient operation of electrical equipment and power systems, especially in applications like industrial motors, transformers, and transmission lines. Its role in supporting the magnetic fields required by inductive devices ensures stability and reduces losses in power delivery. Understanding how reactive power interacts with real power helps you optimize energy consumption and improve the reliability of your electrical infrastructure.
Managing and Balancing Power in Electrical Networks
Reactive power and real power are critical components in managing and balancing electrical networks, where real power performs actual work while reactive power supports voltage stability. Effective management of these powers ensures optimal load distribution and minimizes energy losses, enhancing system reliability. Your ability to control reactive power through devices like capacitors and inductors directly impacts network efficiency and power quality.
Key Differences Between Real Power and Reactive Power
Real power (measured in watts, W) represents the actual energy consumed by electrical devices to perform work, while reactive power (measured in volt-amperes reactive, VAR) does not perform work but sustains the electric and magnetic fields necessary for AC power systems. Real power flows from the source to the load, causing energy conversion, whereas reactive power oscillates between the source and reactive components like inductors or capacitors, affecting voltage stability. The distinction impacts power factor, where optimal real power utilization reduces losses and improves system efficiency, and excess reactive power can lead to voltage drops and increased transmission costs.

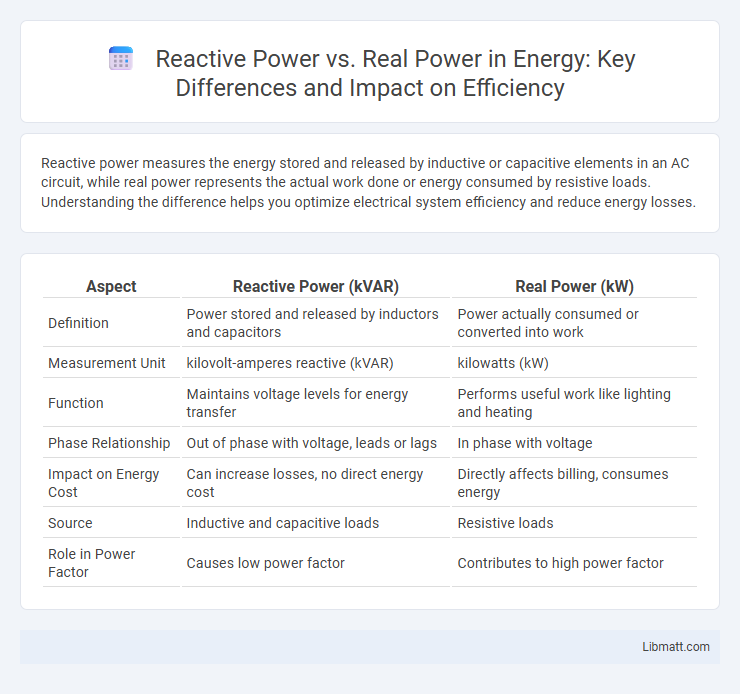

Reactive Power vs Real Power Infographic
