libmatt.com Standard Test Condition (STC) measures solar panel performance at 25degC, 1000 W/m2 irradiance, and AM 1.5 spectrum, providing a consistent baseline for comparison. Nominal Operating Cell Temperature (NOCT) reflects real-world conditions, estimating your solar panel's temperature under typical sunlight and ambient settings to better predict actual output.
Table of Comparison
| Parameter | Standard Test Condition (STC) | Nominal Operating Cell Temperature (NOCT) |
|---|---|---|
| Definition | Laboratory conditions for rating solar panels | Real-world operating temperature under typical solar exposure |
| Irradiance | 1000 W/m2 | 800 W/m2 |
| Cell temperature | 25degC | ~45degC (varies by module) |
| Air temperature | 25degC | 20degC |
| Wind speed | 1 m/s | 1 m/s |
| Purpose | Performance benchmarking | Estimate real operating performance |
Introduction to PV Module Performance Metrics
Standard Test Condition (STC) and Nominal Operating Cell Temperature (NOCT) are key metrics in evaluating photovoltaic (PV) module performance. STC specifies module output under controlled conditions of 1000 W/m2 irradiance, 25degC cell temperature, and 1.5 air mass, serving as a baseline for rating power output. NOCT reflects the module temperature under typical outdoor conditions (800 W/m2 irradiance, 20degC ambient temperature, 1 m/s wind speed), providing realistic insight into actual operating efficiency and temperature-related power losses.
Understanding Standard Test Conditions (STC)
Standard Test Conditions (STC) refer to a set of fixed laboratory parameters including a solar irradiance of 1000 W/m2, a module temperature of 25degC, and an air mass of 1.5, which are used to measure photovoltaic cell performance. These conditions provide a consistent baseline for comparing solar panel efficiency but often differ from real-world environments where Nominal Operating Cell Temperature (NOCT) typically reflects higher, more variable temperatures. Understanding STC is critical for accurately assessing and predicting solar panel output under idealized conditions versus actual field performance.
Defining Nominal Operating Cell Temperature (NOCT)
Nominal Operating Cell Temperature (NOCT) is defined as the temperature a solar cell reaches under specific conditions: 800 W/m2 irradiance, 20degC ambient temperature, 1 m/s wind speed, and open-circuit operation. Unlike Standard Test Conditions (STC) which use 1000 W/m2 irradiance and 25degC ambient temperature for rating modules, NOCT reflects more realistic, everyday operating environments for solar panels. Understanding NOCT helps you estimate actual panel temperatures and performance deviations from ideal lab conditions.
Key Differences Between STC and NOCT
Standard Test Condition (STC) specifies solar panel performance under fixed conditions: 1000 W/m2 irradiance, 25degC cell temperature, and 1.5 air mass, ensuring uniform comparison benchmarks. Nominal Operating Cell Temperature (NOCT) represents real-world operating temperature of solar cells, measured at 800 W/m2 irradiance, 20degC ambient temperature, 1 m/s wind speed, reflecting typical on-site conditions. The key difference lies in STC's controlled laboratory setting versus NOCT's field-based, practical temperature estimation affecting panel efficiency and power output evaluations.
Importance of STC in Solar Module Rating
Standard Test Condition (STC) provides a consistent benchmark for comparing solar module performance by specifying irradiance at 1000 W/m2, cell temperature at 25degC, and air mass of 1.5, ensuring reliable and uniform efficiency ratings. Nominal Operating Cell Temperature (NOCT) reflects real-world operating conditions typically around 45degC, which impacts the module's actual power output due to temperature-related efficiency losses. Understanding STC is crucial for you to evaluate solar panels effectively, as it offers a standard metric for rating and comparing different modules before accounting for real-life temperature variations represented by NOCT.
Real-World Relevance of NOCT
Nominal Operating Cell Temperature (NOCT) reflects the realistic temperature solar panels reach under typical outdoor conditions, unlike Standard Test Conditions (STC), which are idealized lab settings with fixed irradiance and temperature values. NOCT provides more accurate insight into your solar panel's performance by simulating actual environmental factors such as ambient temperature, wind speed, and solar irradiance. This makes NOCT crucial for predicting real-world energy yield and system efficiency throughout varying weather conditions.
Impact of Environmental Factors on STC vs. NOCT
Standard Test Condition (STC) measures solar panel performance under fixed settings of 1000 W/m2 irradiance, 25degC cell temperature, and air mass 1.5. Nominal Operating Cell Temperature (NOCT) reflects real-world environmental factors like ambient temperature, wind speed, and irradiance, typically resulting in higher cell temperatures and lower efficiency compared to STC. Understanding the impact of these variables helps you predict actual solar panel output more accurately under varying outdoor conditions.
How STC and NOCT Affect System Design
Standard Test Conditions (STC) provide a baseline for rating solar panel performance under ideal parameters--1000 W/m2 irradiance, 25degC cell temperature, and AM 1.5 spectrum--while Nominal Operating Cell Temperature (NOCT) reflects realistic operating conditions typically around 45degC under 800 W/m2 irradiance and 20degC ambient temperature. Designing your solar energy system requires consideration of NOCT to accurately predict energy output, as panels operate at higher temperatures in the field, reducing efficiency compared to STC ratings. Incorporating NOCT allows for more reliable system sizing and performance estimation, ensuring optimal energy yield under actual environmental conditions.
Choosing Between STC and NOCT for Performance Evaluation
When evaluating photovoltaic module performance, choosing between Standard Test Conditions (STC) and Nominal Operating Cell Temperature (NOCT) depends on the application focus; STC offers a controlled environment with 1000 W/m2 irradiance, 25degC cell temperature, and 1.5 air mass for baseline comparison. NOCT better reflects real-world conditions, typically involving 800 W/m2 irradiance, 20degC ambient temperature, and 1 m/s wind speed, providing insight into expected module output during typical operation. Selecting STC is ideal for standard laboratory testing and manufacturer rating comparisons, while NOCT is preferred for realistic performance assessment under actual field conditions.
Conclusion: Optimizing Solar System Performance with STC and NOCT
Standard Test Conditions (STC) provide a benchmark with controlled temperature, sunlight intensity, and air mass for comparing solar panel performance, while Nominal Operating Cell Temperature (NOCT) reflects realistic operating temperatures under normal outdoor conditions. Understanding the differences between STC and NOCT is crucial for accurate prediction of energy output, as panels typically operate at higher temperatures than STC, reducing efficiency. Optimizing solar system performance involves selecting panels with favorable NOCT ratings and incorporating thermal management strategies to bridge the gap between ideal STC ratings and actual field conditions.

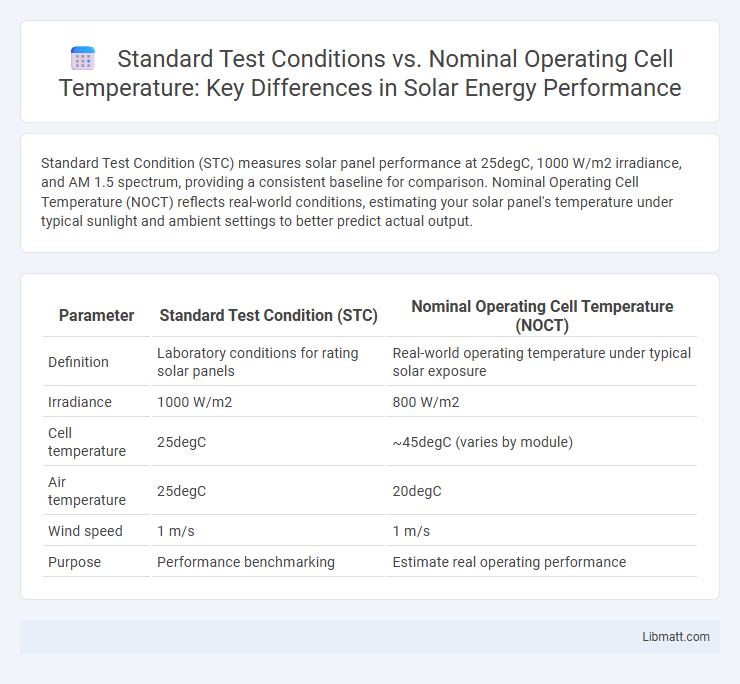

Standard test condition vs Nominal operating cell temperature Infographic
