libmatt.com Rudder stock is the vertical shaft that connects the rudder to the steering mechanism, providing the pivot point for turning the boat. Pintle is a pin or bolt fixed on the rudder or hull that fits into a gudgeon, allowing the rudder to swing freely while securely attached; understanding these components helps you maintain effective steering and control.
Table of Comparison
| Feature | Rudder Stock | Pintle |
|---|---|---|
| Definition | Main vertical shaft supporting the rudder blade and connecting to the steering mechanism | Pin or bolt acting as a hinge for the rudder to pivot on the sternpost or gudgeon |
| Function | Transmit steering torque from the helm to the rudder blade | Provide rotational pivot point for rudder movement |
| Location | Inside rudder, extending through hull or rudder trunk | Attached to sternpost or gudgeon, connecting rudder and hull |
| Material | High-strength steel or bronze alloys | Corrosion-resistant steel or bronze |
| Load Bearing | Bears torsional and bending loads from steering | Bears shear loads, supports weight and pivot action |
| Maintenance | Inspect for wear, corrosion, alignment | Lubrication, check for wear and secure fittings |
| Criticality | Essential for steering system integrity and vessel control | Vital for smooth and reliable rudder movement |
| Common Issues | Corrosion, bending, shaft misalignment | Wear, corrosion, loosening of hinge pins |
Introduction to Rudder Stock and Pintle
Rudder stock and pintle are essential components in maritime steering systems, with the rudder stock serving as the vertical shaft connecting the rudder blade to the steering mechanism. The pintle consists of hinges or pins that allow the rudder to pivot smoothly on the vessel's sternpost or transom, enabling precise directional control. Understanding the role of both parts is crucial for maintaining your ship's steering efficiency and ensuring safe navigation.
Definition and Functions of Rudder Stock
Rudder stock is the vertical shaft that connects the rudder to the steering mechanism, enabling controlled rotation for precise navigation. It functions as the primary structural component transmitting steering commands from the helm to the rudder blade. Unlike the pintle, which serves as a hinge pin allowing the rudder to pivot, the rudder stock provides the essential axis and torque transfer for effective steering control.
Definition and Functions of Pintle
A pintle is a hinge pin or pivot used in maritime applications to attach and allow rotation of the rudder, enabling precise steering control. It functions as a crucial mechanical component that supports the rudder blade while allowing it to swing freely for directional adjustments. Unlike the rudder stock, which is the vertical shaft connected to the rudder blade and steering mechanism, the pintle specifically secures the rudder to the vessel's sternpost or transom.
Key Structural Differences
Rudder stock is a vertical axle that supports and allows the rudder to pivot, typically designed with a solid, cylindrical shape for strength and stability. In contrast, a pintle is a pin or bolt that fits into a gudgeon to form a hinge, enabling the rudder to swing freely while providing ease of installation and removal. Understanding these key structural differences helps you choose the right component based on the flexibility and durability required for your vessel's steering system.
Installation Methods: Rudder Stock vs Pintle
Rudder stock installation involves securing a vertical shaft through the rudder and hull, typically requiring precise alignment and sealing to prevent water intrusion. Pintle installation uses a two-part hinge system where the pintle pins mount on the boat and fit into gudgeons attached to the rudder, allowing for easier removal and maintenance. Your choice between rudder stock and pintle installation depends on factors like boat type, ease of access, and desired steering response.
Durability and Maintenance Considerations
Rudder stocks typically feature robust materials such as stainless steel or aluminum alloys, providing high durability and resistance to corrosion in marine environments, which reduces long-term maintenance requirements. Pintles and gudgeons used in pintle rudder systems often require regular inspection and lubrication to prevent wear and ensure smooth operation, especially in saltwater conditions. Your choice between the two should factor in the ease of access for maintenance and the expected lifespan under varying usage scenarios.
Performance Impact on Vessel Handling
Rudder stock provides a solid and rigid connection between the rudder and steering mechanism, enhancing steering accuracy and responsiveness for improved vessel handling. Pintle hinges allow smoother rudder rotation with reduced friction, contributing to better maneuverability in tight navigation conditions. Choosing between rudder stock and pintle systems significantly influences steering performance, especially in varying sea states and vessel sizes.
Applications in Modern and Traditional Vessels
Rudder stocks are essential in modern vessels for precise steering control, commonly used in large ships and advanced yachts due to their robust and corrosion-resistant materials such as stainless steel. Pintle rudders, favored in traditional and smaller boats, offer simple design and easy maintenance, making them ideal for wooden sailing vessels and small fishing boats. Both systems impact vessel maneuverability, with rudder stocks supporting hydraulic or electric actuators in contemporary vessels, while pintle hinges rely on mechanical linkages in classic maritime designs.
Cost Implications and Material Choices
Rudder stock and pintle differ significantly in cost implications and material choices, with rudder stocks typically requiring durable metals like stainless steel or bronze for strength and corrosion resistance, which can increase initial expenses. Pintles, often made from similar materials but in smaller quantities, generally have lower costs due to their simpler design and reduced material requirements. Understanding these distinctions helps you optimize budget allocations while ensuring the longevity and reliability of your steering components.
Choosing Between Rudder Stock and Pintle: Decision Factors
Choosing between rudder stock and pintle depends on factors such as vessel size, steering requirements, and installation complexity. Rudder stock offers integrated steering with higher durability for larger boats, while pintle systems provide simpler mounting and easier maintenance for smaller craft. Assess your vessel's operational conditions and maintenance capabilities to determine the optimal steering component for reliable performance.

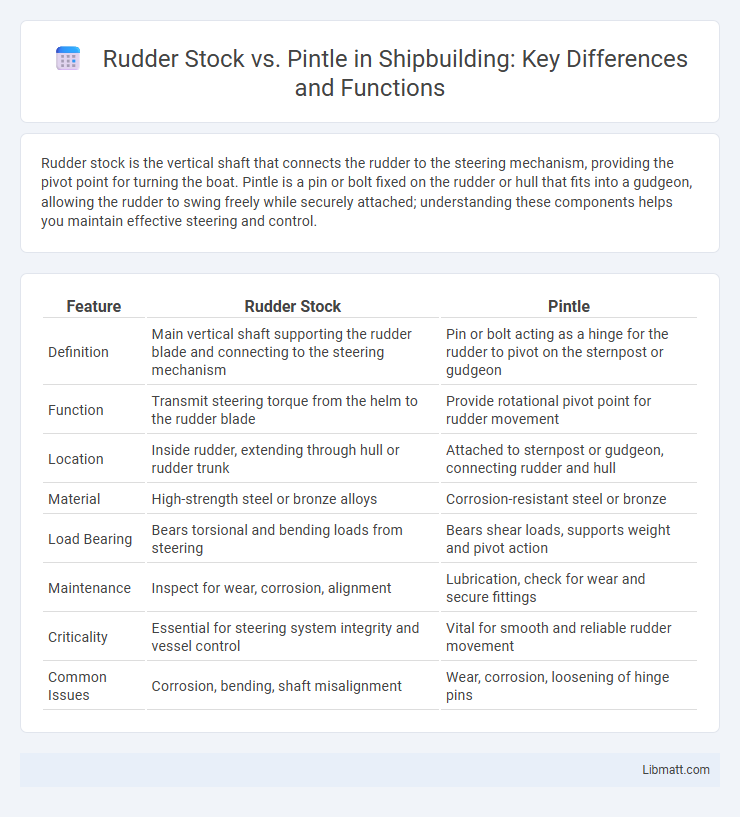

Rudder stock vs pintle Infographic
