libmatt.com The ship righting arm (GZ) measures the lever arm that generates the restoring moment to return a vessel to upright, directly influencing stability at various angles of heel. Metacentric height (GM) quantifies initial static stability by calculating the distance between the center of gravity and the metacenter, serving as a key indicator of a ship's ability to resist small tilts.
Table of Comparison
| Aspect | Ship Righting Arm (GZ) | Metacentric Height (GM) |
|---|---|---|
| Definition | Horizontal distance between the center of gravity (G) and the buoyant force line (Z) when the ship heels. | Vertical distance between the center of gravity (G) and the metacenter (M). |
| Purpose | Measures the ship's ability to generate a righting moment to return to an upright position. | Indicates initial stability and stiffness of the ship at small angles of heel. |
| Units | Meters (m) | Meters (m) |
| Angle Dependence | Varies with the angle of heel; GZ curve plotted against heel angle shows stability at various heel angles. | Defined for small angles of heel; mainly initial stability measurement. |
| Significance | Directly relates to the righting moment (Righting Moment = Displacement x GZ). | Higher GM means greater initial stability but can cause rapid rolling motion. |
| Practical Use | Used in stability assessments during operation to evaluate safe heel limits. | Used in design phase to ensure sufficient initial stability. |
| Measurement | Derived from inclining experiment or hydrostatic calculations at various heel angles. | Calculated from ship's center of gravity and metacenter position at upright condition. |
Introduction to Ship Stability Concepts
Ship righting arm and metacentric height are fundamental parameters in understanding ship stability, where the righting arm (GZ) measures the lever arm that creates a restoring moment when a vessel heels. Metacentric height (GM) represents the initial stability and is the vertical distance between the center of gravity (G) and the metacenter (M), indicating the ship's ability to resist overturning. Your grasp of these concepts ensures accurate assessment of a ship's safety and performance under various loading and sea conditions.
Defining Righting Arm (GZ)
The righting arm (GZ) represents the horizontal distance between the ship's center of gravity and the buoyancy force when heeled, crucial for assessing stability. It quantifies the ship's ability to return to an upright position after tilting, directly influencing safety and handling in rough seas. Understanding GZ alongside metacentric height helps you evaluate the vessel's initial stability and overall resistance to capsizing.
Understanding Metacentric Height (GM)
Metacentric height (GM) measures a ship's initial stability by indicating how far the metacenter is above the center of gravity, with a larger GM signaling stronger righting ability. The ship righting arm (GZ) represents the lever arm that produces the righting moment when the vessel heels, directly influenced by GM and the ship's heel angle. Understanding GM helps you assess how quickly and effectively your ship will return to an upright position after being tilted by external forces.
Physical Principles Behind GZ and GM
The righting arm (GZ) and metacentric height (GM) are critical stability parameters governed by the buoyant force and center of gravity interactions in a floating vessel. GZ represents the horizontal distance between the center of gravity (G) and the center of buoyancy (B) when the ship heels, creating a righting moment that helps return the ship to an upright position. GM is the vertical distance between G and the metacenter (M), where a positive GM indicates stable equilibrium by ensuring that buoyant forces generate a restoring moment corresponding to small angular displacements.
Mathematical Relationship: Righting Arm vs Metacentric Height
The righting arm (GZ) is a function of the metacentric height (GM) and the ship's heel angle (th), mathematically expressed as GZ = GM x sin(th). Metacentric height is a key stability parameter representing the initial transverse stability and determines the magnitude of the righting lever at small angles of heel. Your understanding of this relationship is crucial for assessing a vessel's ability to resist capsizing and maintain stability under various loading and environmental conditions.
Role of GZ Curve in Stability Analysis
The righting arm (GZ) curve represents the ship's ability to return to an upright position by showing the lever arm generated at various heel angles, directly influencing stability analysis. Metacentric height (GM) provides an initial stability measure by quantifying the distance between the center of gravity and the metacenter, but the GZ curve offers a more comprehensive assessment of stability throughout the ship's range of heel. Understanding your vessel's GZ curve is crucial for predicting safe operational limits and ensuring compliance with stability criteria in maritime safety regulations.
Impact of Metacentric Height on Ship Behavior
Metacentric height (GM) directly influences a ship's righting arm, determining its initial stability and resistance to rolling. A larger GM results in a stronger righting arm, providing quicker recovery from tilting and less susceptibility to capsizing in rough seas. Conversely, a small GM leads to a weaker righting arm, causing slower roll periods and increased risk of excessive rolling motions that can compromise safety.
Operational Significance: GZ or GM?
The righting arm (GZ) directly measures a ship's stability at specific heel angles, reflecting the vessel's ability to return upright after being tilted, which is crucial during dynamic operations and extreme conditions. Metacentric height (GM) offers a quick assessment of initial stability at small angles of heel, providing valuable insight during standard loading and calm water conditions. Operational decision-making prioritizes GZ for real-time stability evaluation under varying loads and sea states, while GM serves as a preliminary stability indicator during design and loading assessments.
Design Considerations for Optimal Stability
The design considerations for ship righting arm and metacentric height focus on optimizing initial stability to prevent excessive rolling and ensure safety in various sea conditions. A higher metacentric height (GM) increases the righting arm, producing stronger righting moments that enable the vessel to return quickly to an upright position after heeling. Balancing adequate GM with passenger comfort and structural integrity is crucial, as an excessively high metacentric height can cause rapid, uncomfortable motions, while insufficient GM compromises stability and increases capsizing risk.
Conclusion: Choosing the Right Stability Criterion
Selecting the appropriate stability criterion depends on the vessel's operational context, where the righting arm (GZ) provides a direct measure of the ship's ability to return to an upright position at specific heel angles. The metacentric height (GM) offers a quick assessment of initial stability but does not account for stability at larger angles of heel. Prioritizing the righting arm curve ensures comprehensive evaluation of stability under various conditions, leading to safer and more effective ship design and operation.

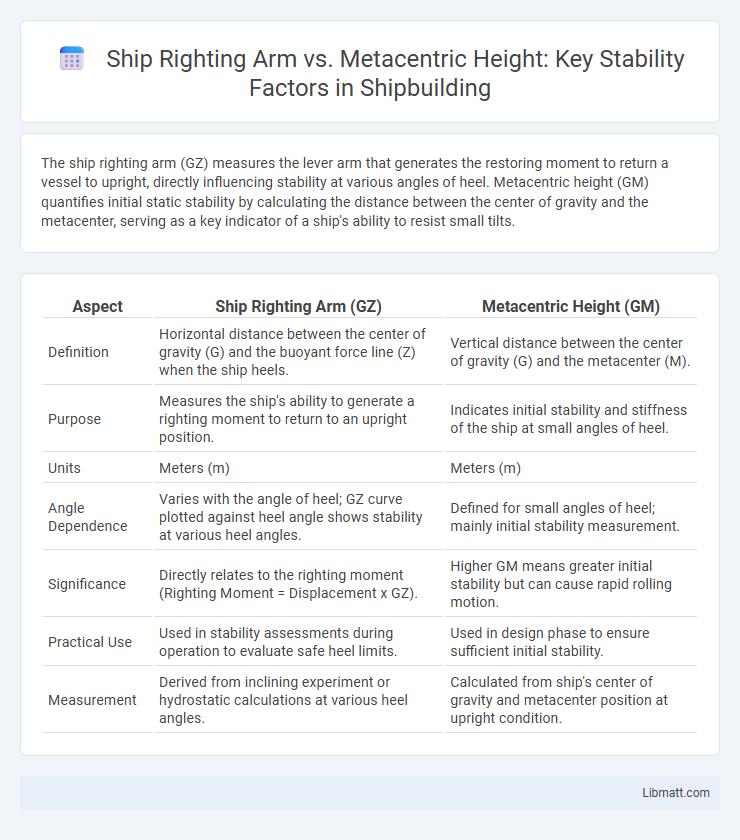

Ship righting arm vs metacentric height Infographic
