libmatt.com Ramjets operate efficiently at supersonic speeds by compressing incoming air through their intake design without moving parts, while scramjets excel at hypersonic velocities by allowing airflow to remain supersonic throughout the engine. Your choice depends on mission speed requirements: ramjets suit speeds up to Mach 6, whereas scramjets are optimized for speeds beyond Mach 6.
Table of Comparison
| Feature | Ramjet | Scramjet |
|---|---|---|
| Operating Speed | Mach 2 to Mach 6 | Mach 5 to Mach 15+ |
| Airflow | Subsonic combustion | Supersonic combustion |
| Combustion Chamber | Slows air to subsonic speeds before combustion | Maintains supersonic airflow during combustion |
| Thrust Mechanism | Compression from high-speed intake airflow | Direct supersonic combustion pressure |
| Efficiency Range | Optimal Mach 3-4 | Optimal Mach 6-10 |
| Use Cases | High-speed missiles, experimental aircraft | Hypersonic vehicles, space access propulsion |
| Complexity | Relatively simpler design | High engineering complexity |
| Fuel Type | Hydrocarbon fuels, hydrogen | Hydrocarbon fuels, hydrogen |
Introduction to Ramjets and Scramjets
Ramjets and scramjets are air-breathing jet engines designed for high-speed flight, with ramjets operating efficiently at supersonic speeds between Mach 3 and Mach 6, while scramjets function effectively at hypersonic speeds above Mach 6. Both engines compress incoming air through high-speed airflow without moving parts, but scramjets maintain supersonic airflow throughout the engine, enhancing performance at extreme velocities. Understanding these differences is crucial for advancing your knowledge of aerospace propulsion technologies used in missiles, spaceplanes, and high-speed aircraft.
Principles of Operation: Ramjet vs Scramjet
Ramjets operate by compressing incoming air through the vehicle's high-speed forward motion, slowing it down to subsonic speeds before combustion, resulting in efficient thrust at supersonic speeds between Mach 3 and Mach 6. Scramjets, or supersonic combustion ramjets, maintain supersonic airflow throughout the engine, enabling combustion at hypersonic speeds above Mach 6 without the drag caused by air deceleration. Your choice between these engines depends on the required speed regime and mission profile, as ramjets excel in lower supersonic ranges while scramjets dominate hypersonic flight capabilities.
Design Differences Between Ramjets and Scramjets
Ramjets operate by decelerating incoming air to subsonic speeds before combustion, featuring simpler designs with no moving parts and relying on high-speed airflow for compression, making them efficient at supersonic speeds up to Mach 6. Scramjets, in contrast, allow airflow to remain supersonic throughout the engine, requiring advanced inlet design and specialized combustors to handle supersonic combustion, optimizing performance at hypersonic speeds above Mach 6. Understanding these design differences helps you evaluate propulsion systems for applications ranging from high-speed aircraft to space access vehicles.
Speed and Performance Capabilities
Ramjets operate efficiently at speeds between Mach 3 and Mach 6, utilizing subsonic airflow within the engine, while scramjets excel at hypersonic speeds above Mach 6 by maintaining supersonic airflow throughout combustion. The performance of ramjets peaks below the regime where scramjets become efficient, with scramjets enabling sustained flight at speeds up to Mach 15 or higher due to superior thermal and aerodynamic management. Your choice between these propulsion systems depends on required speed, with scramjets offering unparalleled performance for ultra-high-speed air and space travel.
Fuel Efficiency Comparison
Ramjets achieve higher fuel efficiency at subsonic to supersonic speeds by utilizing atmospheric oxygen for combustion, allowing for simpler engine designs and lower fuel consumption in those speed ranges. Scramjets operate efficiently at hypersonic speeds (Mach 5 and above) by maintaining supersonic airflow inside the combustion chamber, resulting in better thermal efficiency and reduced drag, but often require more advanced materials and fuels due to extreme temperatures. Fuel efficiency comparison shows ramjets excel in moderate speed regimes, while scramjets outperform at higher speeds where conventional ramjet efficiency drops significantly.
Applications in Aerospace and Defense
Ramjets excel in subsonic to supersonic speeds (Mach 3), making them ideal for missiles, cruise missiles, and unmanned aerial vehicles requiring efficient propulsion in medium-speed regimes. Scramjets operate efficiently at hypersonic speeds (Mach 5+), enabling advanced aerospace applications such as hypersonic cruise missiles, spaceplanes, and reusable launch vehicles with minimal atmospheric drag. Both propulsion systems drive innovation in defense technologies by enhancing speed, range, and maneuverability of modern weapons and aircraft.
Advantages of Ramjet Engines
Ramjet engines offer significant advantages such as simplicity and efficiency at supersonic speeds due to their lack of moving parts and reliance on high-speed airflow for compression. They provide better fuel efficiency compared to turbojets in the Mach 3 range, making them ideal for cruise missiles and high-speed aircraft. Your choice of propulsion system can benefit from ramjets when sustained supersonic flight and straightforward design are priorities.
Benefits of Scramjet Technology
Scramjet technology offers significant benefits over ramjet engines, including the ability to operate efficiently at hypersonic speeds above Mach 5, enabling faster and more fuel-efficient air-breathing propulsion. Unlike ramjets, scramjets maintain supersonic airflow through the combustion chamber, reducing drag and thermal stress, which enhances high-speed performance and thermal management. These advantages make scramjets ideal for applications such as hypersonic missiles, space access vehicles, and rapid global travel.
Technical Challenges and Limitations
Ramjets face technical challenges such as limited operational speed ranges between Mach 3 and Mach 6, due to inefficient combustion at supersonic speeds and the need for subsonic airflow in the combustion chamber. Scramjets overcome these limitations by enabling supersonic combustion, but they require advanced materials to withstand extreme thermal loads and precise fuel injection to maintain stable combustion at hypersonic speeds above Mach 6. Your design considerations must account for these factors, as ramjets struggle with high-speed efficiency while scramjets demand cutting-edge technology and rigorous testing for reliable performance.
Future Prospects for Ramjet and Scramjet Development
Ramjet and scramjet technologies hold significant promise for advancing hypersonic flight and space access, with scramjets offering higher speeds by enabling supersonic combustion, making them suitable for next-generation aerospace vehicles. Future development will focus on improving fuel efficiency, thermal management, and material resilience to withstand extreme conditions at Mach 5 and above. Your understanding of these propulsion systems can drive innovation in military, commercial, and space exploration applications, shaping the future of high-speed travel.

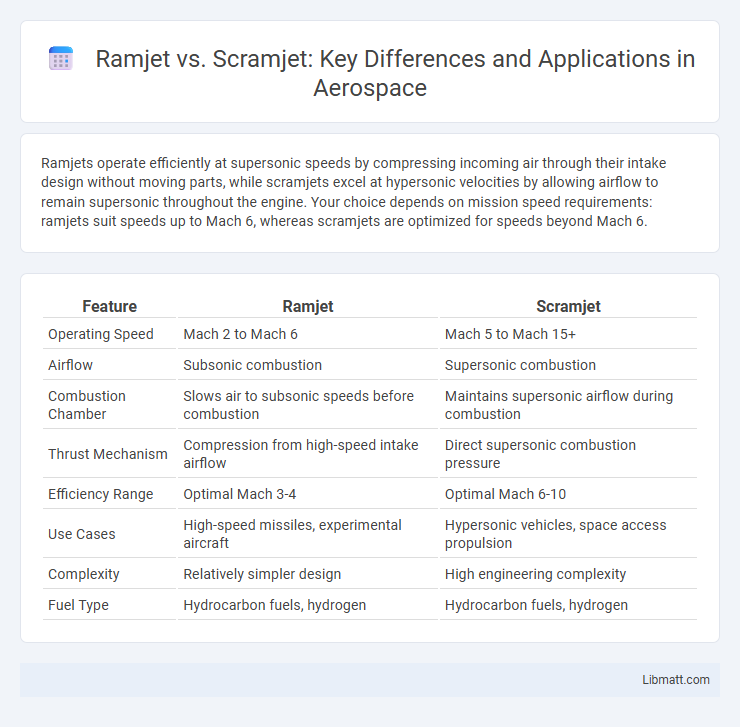

Ramjet vs Scramjet Infographic
