libmatt.com The Atkinson cycle improves fuel efficiency by extending the expansion stroke compared to the Otto cycle, which balances power and efficiency with equal compression and expansion strokes. Your choice between these cycles depends on whether you prioritize fuel economy or performance in engine design.
Table of Comparison
| Feature | Atkinson Cycle | Otto Cycle |
|---|---|---|
| Engine Type | Variable valve timing, extended expansion stroke | Traditional four-stroke |
| Thermal Efficiency | Higher due to longer expansion | Lower compared to Atkinson |
| Power Output | Lower peak power | Higher peak power |
| Fuel Consumption | More fuel-efficient | Less fuel-efficient |
| Use Case | Hybrid vehicles, fuel economy focused | Conventional gasoline vehicles |
| Emissions | Lower CO2 output | Higher CO2 output |
| Complexity | More complex valve timing mechanisms | Simpler design |
Introduction to Atkinson and Otto Cycles
The Atkinson cycle and Otto cycle are both combustion engine cycles used in internal combustion engines, with key differences in performance and efficiency. The Otto cycle, commonly found in conventional gasoline engines, features equal compression and expansion strokes, optimizing power output. The Atkinson cycle, often utilized in hybrid vehicles, extends the expansion stroke relative to compression, enhancing fuel efficiency by reducing heat loss and improving thermal efficiency.
Historical Development of Engine Cycles
The Atkinson cycle, patented by James Atkinson in 1882, was designed to improve engine efficiency by extending the expansion stroke relative to the compression stroke, contrasting with the Otto cycle developed by Nikolaus Otto in 1876, which established the standard for four-stroke internal combustion engines. The Otto cycle revolutionized engine design with its consistent compression and expansion strokes, enabling widespread adoption in early automobiles. Advances in materials and electronic controls have allowed modern engines to combine Atkinson cycle principles, enhancing fuel economy in hybrid vehicles while retaining Otto cycle performance characteristics for power output.
Basic Principles of the Otto Cycle
The Otto cycle operates on a four-stroke process involving intake, compression, combustion, and exhaust phases, where air-fuel mixture is compressed and ignited to produce power. It relies on constant volume combustion, enabling high thermal efficiency through rapid pressure and temperature rise during ignition. The cycle's design prioritizes maximizing power output within a fixed compression ratio, distinguishing it from the Atkinson cycle's emphasis on efficiency through extended expansion.
Fundamentals of the Atkinson Cycle
The Atkinson cycle improves engine efficiency by extending the expansion stroke relative to the compression stroke, allowing more complete energy extraction from combustion gases compared to the Otto cycle. This is achieved through a unique piston or valve timing mechanism that delays the intake valve closing, reducing pumping losses and increasing thermal efficiency. Your vehicle's fuel economy benefits from the Atkinson cycle's ability to convert more fuel energy into useful work, especially in hybrid and low-load applications.
Key Differences Between Atkinson and Otto Cycles
The Atkinson cycle features an extended expansion stroke compared to the Otto cycle, resulting in improved thermal efficiency and better fuel economy. The Otto cycle uses a fixed compression ratio with separate compression and power strokes, while the Atkinson cycle achieves a higher expansion-to-compression ratio by controlling valve timing. Consequently, Atkinson engines produce lower power density but higher efficiency, making them common in hybrid vehicles, whereas Otto engines prioritize power output and are widely used in conventional gasoline-powered cars.
Efficiency Comparison: Atkinson vs Otto Cycle
The Atkinson cycle achieves higher thermal efficiency than the Otto cycle by utilizing a longer expansion stroke relative to the compression stroke, which allows more complete energy extraction from the combustion process. This design reduces pumping losses and improves fuel economy, making Atkinson engines ideal for hybrid vehicles where efficiency trumps power density. In contrast, the Otto cycle delivers higher power output due to a shorter expansion stroke but experiences lower overall efficiency because of increased heat losses and incomplete work recovery.
Applications in Modern Automotive Engines
The Atkinson cycle enhances fuel efficiency by optimizing expansion stroke duration, making it ideal for hybrid vehicles where fuel economy is prioritized over peak power. The Otto cycle remains the standard for conventional gasoline engines, delivering higher power output suitable for performance-oriented and non-hybrid vehicles. Understanding the differences helps you choose the right engine type for applications balancing efficiency and power demands.
Advantages and Disadvantages of Each Cycle
The Atkinson cycle offers improved thermal efficiency and better fuel economy by increasing expansion ratio relative to compression ratio, reducing pumping losses and heat rejection. However, it delivers lower power output and torque compared to the Otto cycle due to its reduced effective compression stroke. The Otto cycle provides higher power density and performance, making it suitable for conventional gasoline engines, but it suffers from lower efficiency and increased emissions compared to the Atkinson cycle.
Atkinson vs Otto Cycle: Environmental Impact
The Atkinson cycle engine delivers improved fuel efficiency and reduced carbon emissions compared to the Otto cycle engine due to its longer expansion stroke, which allows more complete combustion and less wasted energy. This results in lower greenhouse gas emissions and better fuel economy, making Atkinson cycle engines a preferred choice for hybrid and eco-friendly vehicles. In contrast, the Otto cycle engine, common in conventional gasoline cars, produces higher CO2 emissions due to its shorter expansion stroke and less efficient fuel use.
Future Trends and Technological Innovations
The Atkinson cycle engine is gaining traction in hybrid vehicles due to its higher thermal efficiency and lower fuel consumption compared to the traditional Otto cycle. Innovations like variable valve timing and advanced combustion control are enhancing the Atkinson cycle's performance, making it a key player in reducing emissions and improving fuel economy. Your next vehicle may benefit from these technologies as automakers increasingly prioritize fuel efficiency and environmental sustainability in future powertrain designs.

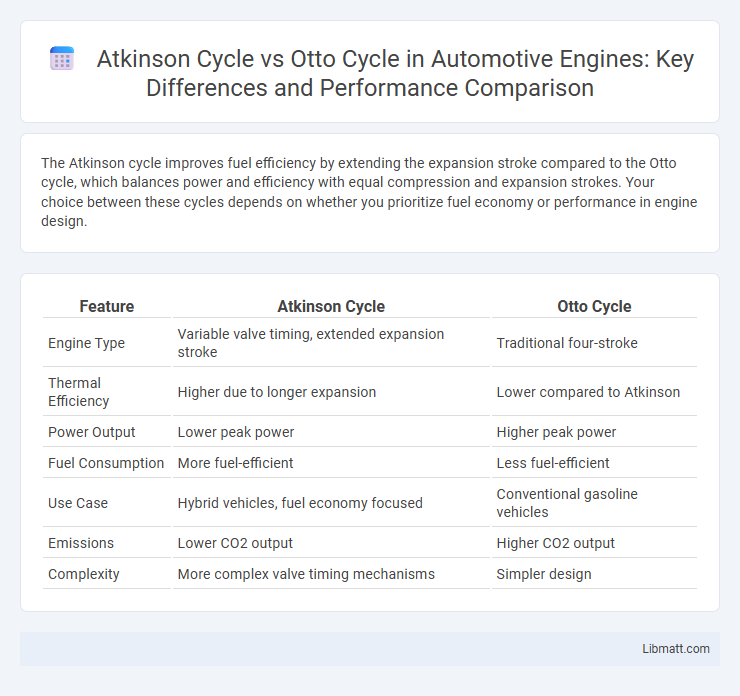

Atkinson cycle vs Otto cycle Infographic
