libmatt.com Curtain walls are non-load-bearing exterior facades that span multiple floors and are typically anchored to the building structure, providing a continuous glass or metal skin, while window walls are prefabricated panels installed floor-to-floor that function as operable or fixed windows within the building envelope. Understanding the differences helps you choose the right system for aesthetics, energy efficiency, and structural requirements in your architectural project.
Table of Comparison
| Feature | Curtain Wall | Window Wall |
|---|---|---|
| Definition | Non-structural exterior cladding system spanning multiple floors | Exterior glazing system installed floor by floor, aligned with floor slabs |
| Structural Role | Fixed to building frame; transfers wind load to structure | Attached to floor slabs; limited load transfer, mainly weather barrier |
| Installation | Pre-fabricated large panels installed from outside | Typically installed from inside floor slabs in smaller sections |
| Cost | Higher upfront cost due to customization and complexity | Generally lower cost and faster installation |
| Energy Efficiency | Superior thermal and air infiltration control possible | Good but often less airtight than curtain walls |
| Design Flexibility | Highly customizable with various materials and shapes | More limited design options, usually rectangular panels |
| Maintenance | Easier access for facade cleaning and repairs | More challenging due to attachment inside floor slabs |
| Typical Use | High-rise commercial and institutional buildings | Mid-rise residential and commercial buildings |
Introduction to Curtain Wall vs Window Wall
Curtain walls are non-structural, exterior cladding systems typically made of glass, metal, or stone, spanning multiple floors to protect buildings from weather while allowing natural light. Window walls consist of panels installed between floors within the building's structural frame, providing a seamless and energy-efficient solution for daylighting and ventilation. Understanding the differences helps you choose the best option based on building design, performance requirements, and aesthetic preferences.
Defining Curtain Wall Systems
Curtain wall systems are exterior building envelopes composed of lightweight aluminum frames and glass panels that do not carry any structural load other than their own weight and environmental forces. Unlike window walls, curtain walls span multiple floors and are attached to the building's structural frame, providing continuous weather resistance and aesthetic appeal. Understanding this distinction helps you select the optimal facade solution for your building's performance and design requirements.
Understanding Window Wall Systems
Window wall systems consist of factory-assembled panels installed between floor slabs, creating a continuous vertical enclosure that offers enhanced thermal performance and airtightness compared to traditional curtain walls. Unlike curtain walls, which are supported by a building's structural frame, window walls transfer loads directly to floor slabs, simplifying installation and reducing construction time. These systems improve energy efficiency through superior insulation and integrated glazing options, making them ideal for high-rise residential and commercial buildings aiming for sustainable design.
Key Structural Differences
Curtain walls are non-load-bearing exterior cladding systems attached to the building's structural frame, spanning multiple floors and providing weather resistance and thermal insulation. Window walls are also non-load-bearing but typically installed floor-to-floor within individual window openings, offering a more modular and cost-effective solution. The key structural difference lies in curtain walls' capacity to act as a continuous facade system, while window walls are segmented and supported by the slab edges.
Installation Methods Compared
Curtain walls are typically installed using a multi-step process involving mounting the entire frame to the building structure before attaching glass panels, which requires extensive coordination and scaffolding. Window walls are installed floor-by-floor between slabs, allowing for quicker installation with less impact on the building envelope due to their modular and pre-fabricated units. The curtain wall's installation is generally more complex and time-consuming, while window walls offer faster installation times and easier replacement or maintenance.
Aesthetic and Design Considerations
Curtain walls offer a sleek, uninterrupted glass facade that enhances a building's modern aesthetic and allows for expansive views with minimal framing visible. Window walls, installed between floors, provide a more segmented appearance with visible mullions and a defined frame line, giving your building a structured and modular look. Both systems cater to different design needs, with curtain walls favoring seamless transparency and window walls balancing visibility with structural rhythm.
Performance and Energy Efficiency
Curtain walls provide superior thermal insulation due to continuous framing and integrated air barriers, effectively reducing heat transfer and enhancing energy efficiency in large buildings. Window walls are segmented assemblies installed within floor slabs, often leading to higher thermal bridging and potential air leakage, which can compromise overall performance. Optimizing curtain wall designs with high-performance glazing and thermal breaks significantly improves energy savings compared to standard window wall systems.
Cost and Budget Implications
Curtain walls typically involve higher upfront costs due to their structural complexity and extensive use of materials like aluminum framing and insulated glass units, impacting overall budget planning for large-scale commercial buildings. Window walls offer a more cost-effective solution, with lower installation and material expenses, making them attractive for mid- to high-rise residential projects where budget constraints are critical. Analyzing long-term maintenance costs and energy efficiency also influences the total cost of ownership between curtain wall and window wall systems.
Common Applications and Best Uses
Curtain walls are commonly used in high-rise commercial buildings and skyscrapers, providing continuous exterior cladding that supports large glass panels and enhances natural light while maintaining structural integrity. Window walls are typically applied in mid-rise residential or commercial buildings where cost efficiency and ease of installation are priorities, offering individual framing around each window unit without spanning multiple floors. Curtain walls are best suited for projects requiring expansive, uninterrupted glass surfaces, whereas window walls excel in buildings needing modular, operable window systems that simplify maintenance and replacement.
Choosing Between Curtain Wall and Window Wall
Choosing between curtain wall and window wall systems depends on factors like building height, design flexibility, and budget. Curtain walls offer extensive customization and superior thermal performance for high-rise buildings, while window walls provide cost-effective installation and ease of maintenance suitable for mid-rise structures. Evaluating project-specific requirements such as structural support, energy efficiency, and aesthetic goals ensures the optimal facade solution.

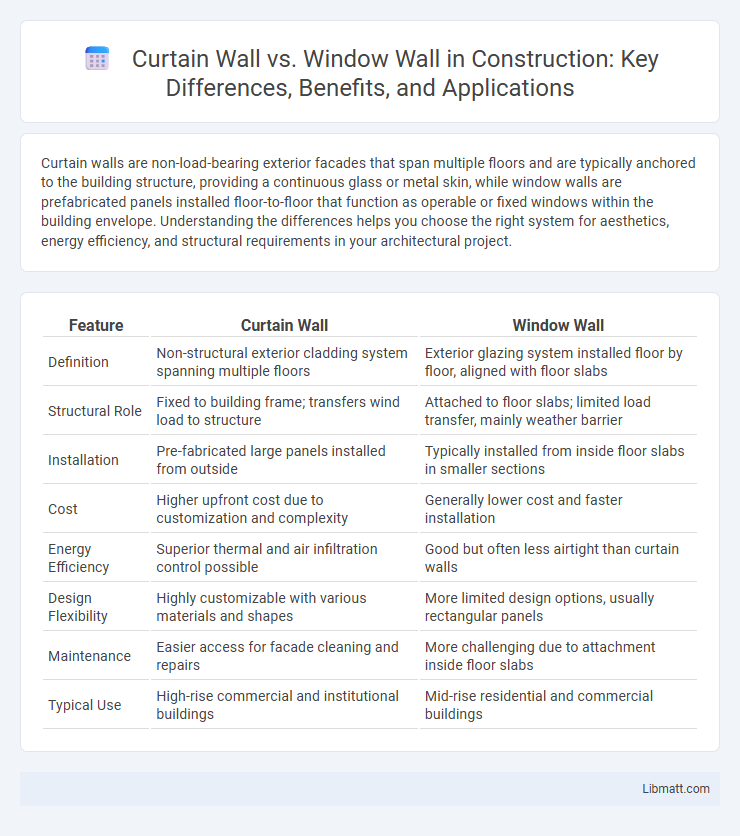

Curtain wall vs Window wall Infographic
