libmatt.com A slab on grade is a concrete foundation poured directly on the ground, providing stability and cost-efficiency for structures built on firm soil. Suspended slabs, elevated above the ground using beams or columns, offer better insulation and moisture protection, making them ideal for uneven terrain or areas prone to flooding.
Table of Comparison
| Feature | Slab on Grade | Suspended Slab |
|---|---|---|
| Definition | Concrete slab poured directly on ground. | Concrete slab supported by beams or columns above ground. |
| Foundation | Directly rests on soil. | Requires structural support system. |
| Cost | Generally lower due to less material and labor. | Higher due to additional materials and formwork. |
| Thermal Performance | Better earth contact for heat retention. | Potential for heat loss due to air exposure beneath. |
| Moisture Protection | Requires vapor barriers and drainage to prevent moisture rise. | Less risk of ground moisture infiltration. |
| Load Capacity | Suitable for light to moderate loads. | Capable of supporting heavy loads and multiple floors. |
| Insulation | Often requires perimeter insulation. | Can incorporate insulation below slab easily. |
| Construction Speed | Faster due to simple formwork. | Slower because of formwork and supports installation. |
| Common Applications | Residential homes, garages, patios. | Multi-storey buildings, bridges, commercial structures. |
| Maintenance | Minimal, but risk of cracking due to ground movement. | Requires inspection of structural supports. |
Introduction to Slab on Grade and Suspended Slab
Slab on grade is a concrete slab poured directly onto the ground, providing a cost-effective and stable foundation ideal for warm climates and non-frost areas. Suspended slabs are elevated concrete floors supported by beams or columns, offering structural flexibility for multi-story buildings and better resistance to ground movement. Your choice depends on soil conditions, load requirements, and construction budget.
Definition and Key Differences
A slab on grade is a concrete floor poured directly on prepared ground, providing a solid base for structures and suitable for warmer climates with stable soil conditions. Suspended slabs are elevated concrete floors supported by beams or columns, allowing for spaces beneath and enhanced load-bearing capacity in multi-story buildings. Key differences include foundation contact, structural support requirements, thermal insulation properties, and suitability based on soil stability and building design.
Structural Design Considerations
Slab on grade requires careful attention to soil bearing capacity, moisture control, and subgrade compaction to ensure even load distribution and prevent settlement, while suspended slabs demand robust beam and column reinforcement to support tensile stresses and accommodate bending moments. Temperature and shrinkage reinforcement are crucial in suspended slabs to avoid cracking, whereas slab on grade often incorporates vapor barriers and insulation to mitigate ground moisture and thermal transfer. Structural design for suspended slabs involves detailed load analysis for spanning capabilities, whereas slab on grade focuses on optimizing thickness and reinforcement for ground load transmission.
Material Requirements and Costs
Slab on grade requires less formwork and reinforcement, reducing overall material costs compared to suspended slabs, which need more concrete, steel reinforcement, and complex support systems. Suspended slabs demand higher-quality materials and additional labor due to the need for falsework and shoring, increasing total project expenses. Your choice impacts budget significantly, with slab on grade offering a cost-effective solution for ground-level construction.
Installation Process Overview
Slab on grade involves pouring concrete directly onto a prepared ground base, requiring site excavation, compacted soil, and vapor barriers before concrete placement and curing. Suspended slab installation entails constructing formwork and falsework to support the concrete above ground or lower floors, followed by reinforcement installation and careful concrete pouring to ensure structural integrity. Both methods require precise leveling and curing processes, but suspended slabs demand more complex engineering and temporary support systems.
Thermal and Moisture Performance
Slab on grade offers superior thermal mass by directly contacting the ground, which helps regulate indoor temperatures and enhances energy efficiency, while suspended slabs typically require additional insulation to prevent heat loss. Moisture performance in slab on grade is managed through vapor barriers and proper site drainage to mitigate ground moisture infiltration, whereas suspended slabs generally have better natural ventilation underneath, reducing the risk of moisture accumulation and related issues. Understanding these differences helps you select the appropriate slab type for optimal thermal comfort and moisture control in your building project.
Load-Bearing Capacity
Slab on grade offers high load-bearing capacity by directly transferring structural loads to the earth, making it ideal for supporting heavy vertical loads in residential and commercial buildings. Suspended slabs rely on supporting beams or columns to carry loads, which allows for greater flexibility in design but may require additional reinforcement for heavy load applications. The load-bearing capacity of suspended slabs can be optimized through material selection and structural engineering, whereas slab on grade performance heavily depends on soil bearing characteristics.
Suitability for Soil and Site Conditions
Slab on grade foundations are ideal for stable, well-draining soil types and sites with minimal slope, providing direct contact with the ground that simplifies construction and reduces costs. Suspended slabs suit variable or expansive soils and uneven terrain by elevating the structure, preventing moisture issues and minimizing soil movement impacts. Selecting the appropriate slab type depends on your site's soil bearing capacity, drainage, and topography for long-lasting structural integrity.
Maintenance and Durability
Slab on grade offers low maintenance and high durability due to its direct contact with the ground, reducing exposure to environmental elements and minimizing structural movement. Suspended slabs require more regular inspection and maintenance to address potential issues such as moisture infiltration, cracks, and load-induced stress. Your choice impacts long-term upkeep, with slab on grade being more resilient in stable soil conditions while suspended slabs suit uneven terrain but may need frequent repairs.
Choosing the Right Slab for Your Project
Choosing the right slab for your project requires understanding the benefits of slab on grade versus suspended slabs. Slab on grade is economical and ideal for stable ground conditions with minimal excavation, providing direct contact with the soil for efficient load transfer and thermal mass. Suspended slabs offer flexibility over uneven terrain or basements, allowing for better control of moisture and insulation, making it essential to consider soil type, load requirements, and site conditions when selecting the best option for your construction needs.

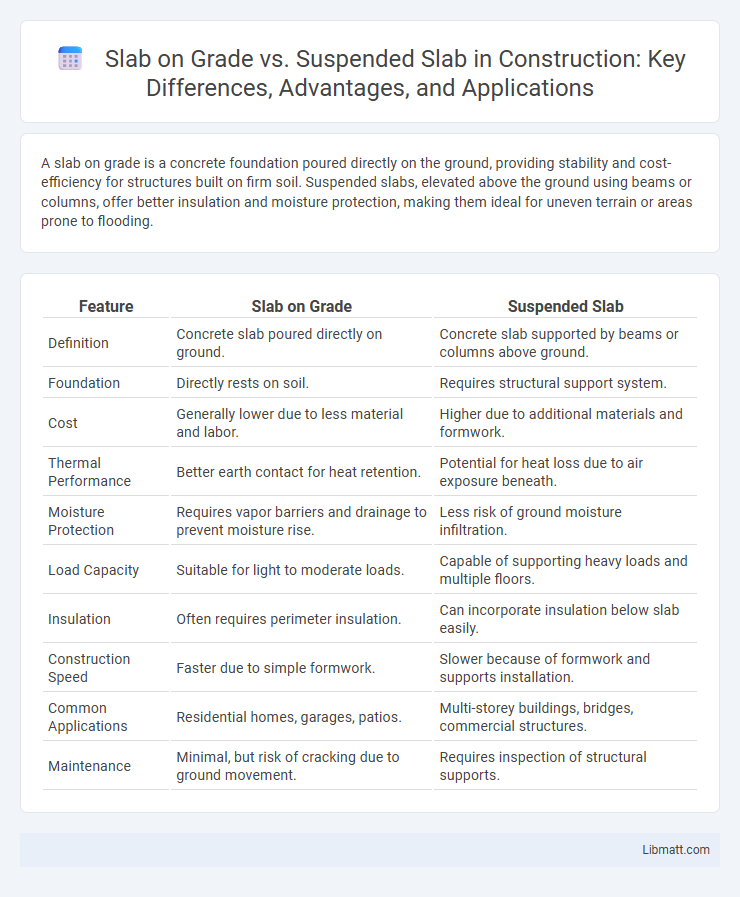

Slab on grade vs Suspended slab Infographic
