libmatt.com AESA (Active Electronically Scanned Array) radars offer superior target detection, faster beam steering, and increased reliability compared to PESA (Passive Electronically Scanned Array) systems, which rely on a single transmitter. Your choice between AESA and PESA impacts radar performance, with AESA providing enhanced multi-target tracking and resistance to jamming.
Table of Comparison
| Feature | AESA (Active Electronically Scanned Array) | PESA (Passive Electronically Scanned Array) |
|---|---|---|
| Technology | Active transmit/receive modules (TRMs) with individual control | Single transmitter with phase shifters for beam steering |
| Beam Steering | Electronic, rapid, multiple beams simultaneously | Electronic, slower, single beam at a time |
| Reliability | High; failure of some modules doesn't degrade performance significantly | Lower; single transmitter failure cripples entire array |
| Range & Sensitivity | Longer range, higher sensitivity due to low noise amplifiers | Shorter range, less sensitive |
| Maintenance | Complex due to numerous modules | Simpler, fewer components |
| Cost | Higher due to advanced technology and numerous modules | Lower cost, simpler design |
| Stealth & Jamming | Superior resistance; frequency agility and low sidelobes | More vulnerable to jamming and detection |
| Applications | Advanced fighter radars, missile defense, electronic warfare | Older generation radars, cost-sensitive applications |
Introduction to AESA and PESA Radar Technologies
AESA (Active Electronically Scanned Array) radar technology uses multiple small transmit/receive modules to electronically steer the radar beam, offering rapid beam switching, higher resolution, and improved target tracking compared to PESA (Passive Electronically Scanned Array) radars, which rely on a single transmitter with phase shifters to steer the beam. AESA radars provide enhanced resistance to jamming and better reliability due to their distributed architecture, making them preferred in modern military and aerospace applications. Understanding the differences between AESA and PESA can help you evaluate radar system performance for advanced surveillance and defense needs.
Fundamental Principles: How AESA and PESA Work
Active Electronically Scanned Arrays (AESA) utilize numerous small solid-state transmit/receive modules to electronically steer the radar beam without moving parts, enabling rapid beam shaping and multiple simultaneous beams. Passive Electronically Scanned Arrays (PESA) rely on a single central transmitter feeding multiple phase shifters to steer the beam electronically by adjusting signal phases, but only support one beam at a time. AESA's distributed architecture enhances reliability and sensitivity, while PESA's simpler design limits flexibility and speed in beam steering.
Key Differences Between AESA and PESA
AESA (Active Electronically Scanned Array) radar uses multiple small transmit/receive modules to steer beams electronically, offering faster target tracking and better resistance to jamming. In contrast, PESA (Passive Electronically Scanned Array) radar relies on a single transmitter with a phase shifter to steer the beam, resulting in slower beam steering and lower reliability. Your choice between AESA and PESA impacts radar performance, with AESA providing superior agility, enhanced detection capabilities, and greater operational flexibility.
Performance Comparison: Range, Accuracy, and Reliability
Active Electronically Scanned Array (AESA) radars outperform Passive Electronically Scanned Array (PESA) systems in range and accuracy due to their ability to emit multiple frequencies simultaneously, enhancing target detection and tracking precision. AESA radars offer superior reliability through distributed transmitter modules, reducing the risk of complete system failure compared to the single transmitter design in PESA radars. Range for AESA typically extends beyond PESA capabilities, with AESA systems achieving detection ranges over 200 km, accuracy improvements of up to 30%, and greater resistance to electronic jamming, solidifying their operational advantage.
Electronic Warfare Capabilities: AESA vs PESA
AESA radar systems offer superior electronic warfare capabilities compared to PESA due to their ability to rapidly shift frequencies, making them more resistant to jamming and interception. AESA's multiple transmit/receive modules enable simultaneous electronic attack and radar functions, enhancing situational awareness and threat response. Your electronic warfare strategy benefits from AESA's agility and reliability, providing a significant tactical advantage over PESA systems.
Cost and Maintenance Considerations
AESA radars generally have higher initial costs due to complex solid-state components but benefit from lower maintenance expenses because of modular design and reduced mechanical parts. PESA systems are often less expensive upfront but require more frequent maintenance and component replacements, leading to increased long-term costs. The reduced downtime and enhanced reliability of AESA radars contribute to overall cost savings during their operational lifecycle.
Applications in Military and Civil Aviation
AESA radars provide superior target tracking, electronic countermeasures, and multi-target engagement capabilities compared to PESA, making them essential for advanced military fighter jets and missile defense systems. Civil aviation benefits from AESA through improved weather radar accuracy and enhanced air traffic control, supporting safer and more efficient flight operations. Your choice between AESA and PESA depends on whether cutting-edge performance or cost-effectiveness and legacy system compatibility are prioritized.
Future Trends in Radar Technology
AESA (Active Electronically Scanned Array) radars offer superior target detection, faster beam steering, and enhanced jam resistance compared to traditional PESA (Passive Electronically Scanned Array) systems. Future trends in radar technology emphasize the integration of AI for predictive analytics and adaptive signal processing, leveraging AESA's modular architecture for improved reliability and multi-function capabilities. Your radar systems will benefit significantly from AESA advancements, providing increased situational awareness and operational efficiency in complex environments.
Notable Aircraft Equipped with AESA and PESA Radars
Notable aircraft equipped with AESA radars include the F-22 Raptor, F-35 Lightning II, and the Saab JAS 39 Gripen, which benefit from enhanced target tracking and electronic warfare capabilities. PESA radar systems are prominently featured on older models like the MiG-29 and Dassault Mirage 2000, providing reliable but less flexible detection compared to AESA technology. Your choice between AESA and PESA can impact mission effectiveness due to differences in radar agility, power, and signal processing.
Conclusion: Which Radar Technology Leads?
AESA radar technology leads with superior target detection, faster scanning, and enhanced electronic countermeasure resistance compared to PESA. Your radar systems benefit from AESA's multiple transmit/receive modules, resulting in higher reliability and improved situational awareness. While PESA remains cost-effective, AESA sets the benchmark in performance and adaptability for modern defense applications.

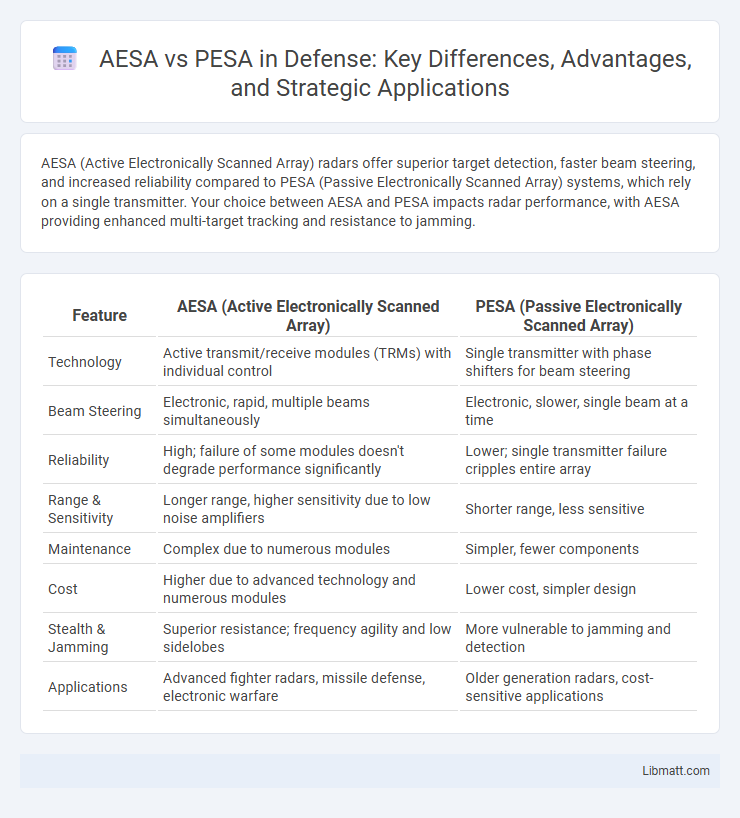

AESA vs PESA Infographic
