libmatt.com Fixed tilt solar panels offer a cost-effective, low-maintenance option by remaining stationary at a set angle, while single axis tracking systems increase energy capture by following the sun's path throughout the day. Your choice depends on budget constraints and desired energy efficiency, with tracking systems typically providing higher output but requiring more investment and upkeep.
Table of Comparison
| Feature | Fixed Tilt | Single Axis Tracking |
|---|---|---|
| Definition | Solar panels mounted at a fixed angle. | Solar panels mounted on a motorized axis that rotates to follow the sun. |
| Energy Efficiency | Lower energy yield; average 15-20% less compared to tracking. | Higher energy yield; increases output by 15-25% over fixed tilt. |
| Installation Cost | Lower upfront cost due to simpler design. | Higher initial investment due to tracking system complexity. |
| Maintenance | Minimal maintenance required. | Requires regular maintenance for moving parts. |
| Land Use Efficiency | Requires more space for same energy output. | Improves land utilization by increasing energy density. |
| Best Application | Suitable for small-scale or budget-constrained projects. | Ideal for large-scale solar farms maximising energy output. |
Introduction to Solar Panel Mounting Systems
Solar panel mounting systems include fixed tilt and single axis tracking designs, each optimizing energy capture differently. Fixed tilt mounts position panels at a set angle, maximizing sun exposure based on geographic location with minimal maintenance and cost. Single axis tracking systems rotate panels east to west, increasing energy yield by up to 25-35% by following the sun's path throughout the day.
What is Fixed Tilt in Solar Installations?
Fixed tilt in solar installations refers to solar panels mounted at a set angle that does not move throughout the day, optimized to capture the maximum sunlight based on the site's latitude and seasonal solar path. This type of mounting system offers lower installation and maintenance costs compared to tracking systems, making it a cost-effective choice for many residential and commercial solar projects. Fixed tilt systems typically have lower energy yield than single axis tracking but provide reliable, stable energy output with minimal mechanical complexity.
Understanding Single Axis Tracking Technology
Single axis tracking technology improves solar energy capture by rotating panels on one axis, typically aligned north-south, to follow the sun's path throughout the day. This system boosts energy output by 15-25% compared to fixed tilt setups, which remain static at a set angle. Understanding how single axis tracking adjusts to seasonal and daily solar angles can help you optimize your solar installation's efficiency and return on investment.
Energy Production: Comparing Output Efficiency
Fixed tilt solar systems typically produce between 75% to 85% of the energy output of single-axis tracking systems, which adjust panel angles throughout the day to capture optimal sunlight. Single-axis tracking increases energy yield by approximately 15% to 25%, especially in regions with high direct sunlight exposure, enhancing overall system efficiency. The choice between the two depends largely on site-specific solar irradiance and economic considerations related to installation and maintenance costs.
Installation and Maintenance Requirements
Fixed tilt solar systems require simpler installation and lower maintenance due to their stationary design, making them ideal for locations with limited space or budget constraints. Single axis tracking systems enhance energy capture by following the sun's movement, but they demand more complex installation and regular maintenance to ensure mechanical parts operate smoothly. You should weigh the increased energy yield of tracking systems against their higher installation and upkeep costs to choose the best fit for your solar project.
Cost Analysis: Upfront and Long-Term Investment
Fixed tilt solar systems require lower upfront costs due to simpler installation and fewer mechanical components, making them a budget-friendly option for initial investment. Single axis tracking systems involve higher upfront expenses but increase energy yield by up to 25%, improving long-term return on investment through enhanced efficiency. Your choice depends on balancing initial budget constraints with potential long-term savings and energy production gains.
Site Suitability and Geographic Considerations
Fixed tilt solar systems are ideal for sites with limited space or those facing constraints due to shading and structural limitations, offering a lower initial investment and simpler maintenance. Single axis tracking systems significantly boost energy yield in locations with high direct sunlight and wide daily sun paths, especially in regions closer to the equator or with clear skies. Your choice should consider geographic factors such as latitude, solar irradiance, and weather patterns to maximize efficiency and return on investment.
Impact on Land Use and Space Optimization
Fixed tilt solar systems generally require less land compared to single axis tracking due to their static panel arrangement, which allows for denser row spacing and simpler land grading. Single axis tracking systems improve energy yield by following the sun's movement, but their rotating panels need greater spacing to avoid shading, increasing overall land use and potentially impacting space optimization negatively. Your land use efficiency will depend on balancing energy output goals with available space, as fixed tilt provides compact installation benefits while single axis maximizes generation over a larger footprint.
Reliability and System Longevity
Fixed tilt solar systems offer enhanced reliability due to their simpler design, minimizing mechanical failures and reducing maintenance requirements. Single axis tracking systems increase energy yield but introduce moving components, which may lead to higher wear and more frequent servicing, potentially affecting system longevity. Optimizing system longevity involves balancing initial energy gains from tracking technology with the robustness and fewer failure points offered by fixed tilt installations.
Choosing the Right System: Key Decision Factors
Choosing between fixed tilt and single axis tracking solar systems depends on factors like site latitude, available space, and budget constraints. Fixed tilt systems offer lower installation costs and simpler maintenance, ideal for smaller or budget-limited projects. Single axis tracking increases energy yield by 15-25% through dynamic sun following but requires higher upfront investment and more complex infrastructure.

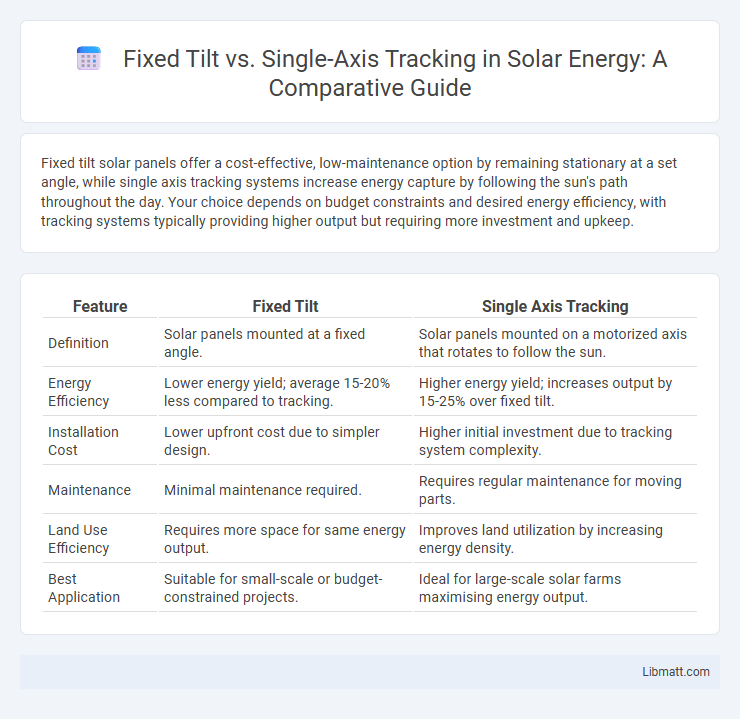

Fixed tilt vs Single axis tracking Infographic
