libmatt.com NIR spectroscopy utilizes near-infrared light to analyze molecular overtones and combinations, offering rapid, non-destructive measurements primarily for moisture, fat, and protein content. FTIR spectroscopy employs mid-infrared light and Fourier-transform techniques to provide detailed molecular fingerprinting, making it highly effective for identifying functional groups and chemical structures in complex samples.
Table of Comparison
| Feature | NIR Spectroscopy | FTIR Spectroscopy |
|---|---|---|
| Wavelength Range | 780 nm - 2500 nm (Near-Infrared) | 2500 nm - 25,000 nm (Mid to Far-Infrared) |
| Primary Use | Moisture, fat, protein analysis in food | Molecular functional groups identification, chemical composition |
| Sample Preparation | Minimal, non-destructive | Usually requires sample preparation |
| Speed | Rapid, suitable for on-line analysis | Moderate speed, lab-based |
| Spectral Data | Broad overtone and combination bands | Sharp fundamental absorption bands |
| Penetration Depth | Deeper penetration, bulk analysis | Surface or thin film analysis |
| Cost | Generally lower cost | Higher cost due to complex optics |
| Applications in Food | Quantitative compositional analysis, quality control | Qualitative analysis, contaminant detection |
Introduction to NIR and FTIR Spectroscopy
Near-Infrared (NIR) Spectroscopy utilizes the near-infrared region (780-2500 nm) to analyze molecular overtones and combination vibrations, providing rapid, non-destructive measurements ideal for quality control and process monitoring. Fourier-Transform Infrared (FTIR) Spectroscopy employs an interferometer to collect high-resolution spectral data across the mid-infrared range (4000-400 cm-1), enabling detailed molecular fingerprinting and functional group identification. Your choice between NIR and FTIR depends on the sample type, required sensitivity, and specific analytical objectives in applications such as pharmaceuticals, agriculture, or materials science.
Fundamental Principles: NIR vs FTIR
Near-infrared (NIR) spectroscopy operates by measuring overtones and combination vibrations of molecular bonds, primarily involving C-H, N-H, and O-H groups, which results in broader and less distinct absorption bands. Fourier-transform infrared (FTIR) spectroscopy captures fundamental vibrational modes by measuring the mid-infrared region, providing highly specific and sharp absorption peaks characteristic of molecular functional groups. The fundamental difference lies in NIR's reliance on overtone and combination bands leading to rapid, non-destructive analysis with lower resolution, while FTIR utilizes precise fundamental vibrations for detailed molecular identification and quantification.
Key Differences in Instrumentation
NIR spectroscopy utilizes near-infrared light, typically in the 780-2500 nm range, with simpler instrumentation such as diode array detectors or photodiodes for rapid scanning, while FTIR employs mid-infrared light (4000-400 cm-1) and uses an interferometer combined with a Michelson interferometer and a pyroelectric or mercury cadmium telluride (MCT) detector for high-resolution spectral analysis. FTIR instruments generate spectra through Fourier transformation of the raw interferogram, enabling precise wavelength measurement, whereas NIR instruments rely on direct absorption measurements or partial least squares algorithms for data interpretation. The robustness and portability of NIR devices contrast with the typically larger, more sensitive, and complex laboratory-based FTIR spectrometers.
Spectral Range and Analytical Capabilities
Near-Infrared (NIR) spectroscopy operates within the spectral range of approximately 780 to 2500 nm, excelling in rapid, non-destructive analysis of organic compounds and moisture content in various samples. Fourier-Transform Infrared (FTIR) spectroscopy covers a broader mid-infrared range from about 4000 to 400 cm-1, offering detailed molecular fingerprinting and identification of functional groups in complex mixtures. Your choice between NIR and FTIR should consider these spectral ranges and their respective analytical strengths for precise qualitative and quantitative analyses.
Sample Preparation Requirements
NIR spectroscopy generally requires minimal or no sample preparation, allowing direct analysis of solids, liquids, or powders with little to no alteration. FTIR spectroscopy often demands more extensive sample preparation, such as creating KBr pellets, thin films, or using attenuated total reflectance (ATR) accessories to obtain accurate spectra. This difference impacts throughput and suitability for rapid or in-line process analysis.
Sensitivity and Specificity Comparison
NIR spectroscopy offers rapid, non-destructive analysis with moderate sensitivity, ideal for bulk sample measurements but limited in molecular specificity compared to FTIR. FTIR provides higher specificity through detailed molecular fingerprinting and superior sensitivity for detecting functional groups, making it more effective for complex mixture analysis. Your choice between NIR and FTIR depends on the balance between speed and the need for precise molecular identification in your application.
Applications in Various Industries
Near-infrared (NIR) spectroscopy excels in food quality control, pharmaceutical analysis, and agricultural monitoring due to its rapid, non-destructive measurement capabilities. Fourier-transform infrared (FTIR) spectroscopy is preferred in chemical, polymer, and environmental industries for detailed molecular characterization and identification of complex materials. Your choice between NIR and FTIR depends on whether you need fast, bulk analysis or precise molecular fingerprinting in your industry applications.
Advantages and Limitations of Each Technique
Near-infrared (NIR) spectroscopy offers rapid, non-destructive analysis with minimal sample preparation and deeper penetration into samples, making it ideal for bulk material assessment and real-time monitoring. Fourier-transform infrared (FTIR) spectroscopy provides higher spectral resolution and detailed molecular fingerprinting, enabling precise qualitative and quantitative analysis of complex samples. NIR's limitations include lower sensitivity to minor components and overlapping bands, while FTIR can be hindered by sample thickness, strong water absorption, and the need for more extensive sample preparation.
Cost and Practical Considerations
Near-infrared (NIR) spectroscopy generally offers lower upfront costs and faster analysis times compared to Fourier-transform infrared (FTIR) spectroscopy, making it more suitable for high-throughput and on-site applications. FTIR instruments, while typically more expensive, provide higher spectral resolution and greater sensitivity, essential for detailed molecular characterization in research settings. Your choice depends on balancing budget constraints with the level of analytical precision required for your specific application.
Choosing Between NIR and FTIR: Decision Factors
Choosing between NIR and FTIR spectroscopy depends on factors such as sample type, analysis speed, and required spectral resolution. NIR spectroscopy excels in rapid, non-destructive analysis of bulk materials with minimal sample preparation, while FTIR provides higher spectral resolution and detailed chemical information suited for complex molecular characterization. Instrument cost, measurement environment, and data interpretation capabilities also influence the optimal technique choice for specific applications.

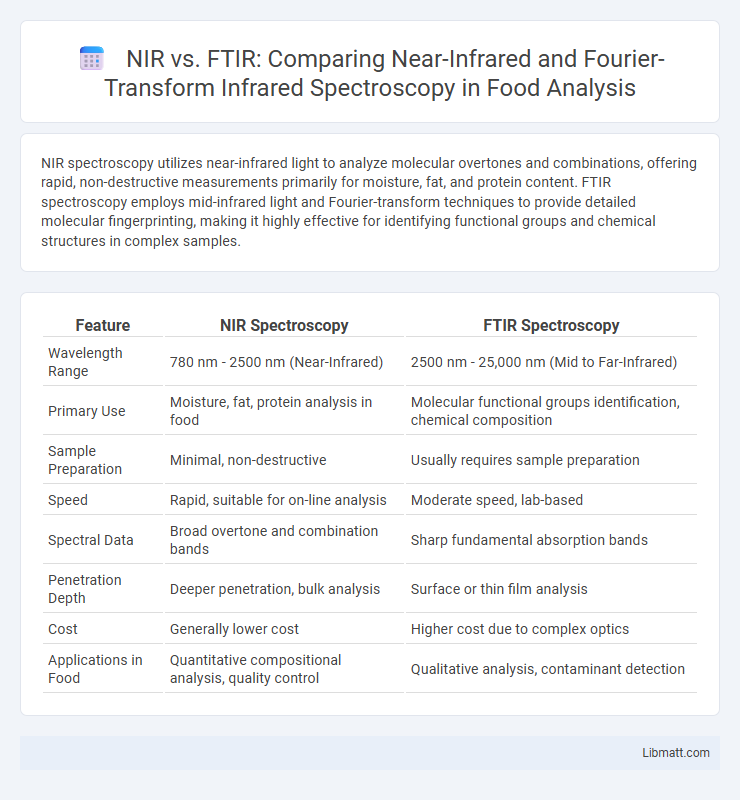

NIR vs FTIR (near-infrared vs Fourier-transform infrared spectroscopy) Infographic
