libmatt.com The shock layer forms where a supersonic flow undergoes a sudden change in pressure, temperature, and velocity across a shock wave, resulting in a thin region of compressed fluid. The boundary layer, by contrast, is a thin region adjacent to a solid surface where viscous forces cause velocity gradients and flow deformation, affecting drag and heat transfer on Your aerodynamic surfaces.
Table of Comparison
| Aspect | Shock Layer | Boundary Layer |
|---|---|---|
| Definition | Region of compressed, high-temperature gas between shock wave and body surface | Thin layer of fluid near surface with velocity gradient due to viscous effects |
| Location | Immediately downstream of the shock wave | Adjacent to the aerodynamic surface |
| Flow Characteristics | High pressure, temperature, density changes; largely inviscid | Velocity changes from zero (no-slip) to free-stream; dominated by viscosity |
| Thickness | Relatively thick, varies with Mach number and shape | Extremely thin, on the order of millimeters to micrometers |
| Physical Impact | Causes aerodynamic heating and pressure rise | Generates skin friction drag and affects heat transfer |
| Relevance in Aerospace | Crucial for hypersonic vehicle design and thermal protection | Essential for drag reduction and thermal management |
Introduction to Shock Layer and Boundary Layer
Shock layers form when a supersonic flow encounters an obstacle or sudden change, resulting in an abrupt compression and increase in pressure, temperature, and density. Boundary layers develop along solid surfaces where viscous forces cause the fluid velocity to transition from zero at the wall (no-slip condition) to the free stream velocity, creating velocity gradients and shear stress. Understanding the distinct physical phenomena in shock layers and boundary layers is crucial for aerodynamic design and flow control in high-speed and viscous flow applications.
Fundamental Differences Between Shock Layer and Boundary Layer
The shock layer forms a thin region of abrupt property changes such as pressure, temperature, and density occurring when supersonic flow encounters a shock wave, characterized by near-instantaneous transitions. The boundary layer, conversely, is a viscous layer adjacent to a solid surface where velocity gradients develop gradually due to friction, affecting flow separation and drag. Understanding these fundamental differences helps you optimize aerodynamic performance and thermal protection in high-speed vehicles.
Formation and Development of Shock Layers
Shock layers form rapidly when supersonic flow encounters a sudden disturbance, causing an abrupt increase in pressure, temperature, and density across an extremely thin region. This rapid compression contrasts with the boundary layer, which develops gradually due to viscous effects as fluid flows over a surface, resulting in a velocity gradient near the wall. The shock layer thickness is typically on the order of mean free paths, whereas the boundary layer grows downstream and is influenced by Reynolds number and surface roughness.
Formation and Characteristics of Boundary Layers
Boundary layers form when a fluid flows over a solid surface, causing a gradient in velocity from zero at the surface due to the no-slip condition to the free stream velocity away from the surface. This thin region is characterized by viscous effects dominating fluid behavior, leading to velocity, temperature, and pressure gradients. You should understand that boundary layers significantly influence drag, heat transfer, and overall aerodynamic performance in engineering applications.
Physical Properties: Thickness, Temperature, and Density Profiles
Shock layers exhibit abrupt changes in physical properties over very thin regions, characterized by sharp increases in temperature and density compared to boundary layers, which transition more gradually. The thickness of shock layers is typically on the order of a few mean free paths, resulting in steep gradients, while boundary layers extend over much larger distances with smoother property variations. Understanding these distinctions in thickness, temperature, and density profiles is crucial for optimizing high-speed aerodynamic designs and managing heat transfer in Your applications.
Governing Equations and Flow Regimes
The shock layer is governed by the compressible Navier-Stokes equations with strong discontinuities, typically modeled using the Rankine-Hugoniot conditions across the shock, reflecting supersonic to subsonic flow transitions. The boundary layer follows the boundary layer equations derived from the Navier-Stokes system under the assumption of viscous, incompressible or mildly compressible laminar or turbulent flow near solid surfaces. Flow regimes in the shock layer involve supersonic to subsonic shocks with rapid property changes, while boundary layers exhibit subsonic, viscous-dominated regimes characterized by velocity gradients and shear stresses close to the wall.
Effects on Aerodynamic Performance and Heat Transfer
Shock layers cause sudden pressure and temperature increases that significantly impact aerodynamic performance by increasing drag and inducing flow separation, while boundary layers influence lift and skin friction drag based on their thickness and laminar or turbulent state. Heat transfer rates escalate sharply in shock layers due to abrupt compressive heating, whereas boundary layers affect thermal insulation and heat conduction, with turbulent layers enhancing convective heat transfer to your aircraft surface. Managing the interaction between shock and boundary layers is crucial for optimizing both aerodynamic efficiency and thermal protection in high-speed flight conditions.
Role in Hypersonic and Supersonic Flows
Shock layers in hypersonic and supersonic flows act as thin, high-gradient regions where abrupt changes in pressure, temperature, and density occur, significantly impacting aerodynamic heating and wave drag. Boundary layers develop downstream of shock layers, representing viscous regions where velocity gradients influence skin friction and thermal conduction on vehicle surfaces. The interplay between shock layers and boundary layers is critical for predicting vehicle stability, heat transfer rates, and aerodynamic performance at Mach numbers typically above 5 for hypersonic and between Mach 1 and 5 for supersonic regimes.
Engineering Challenges and Design Considerations
Shock layers generate intense pressure gradients and rapid temperature changes that challenge material integrity and thermal management in high-speed aerospace engineering. Boundary layers influence drag and heat transfer, requiring precise control through surface design and flow manipulation to optimize aerodynamic performance. Engineers must balance shock wave mitigation with boundary layer stability to enhance vehicle durability, fuel efficiency, and safety in supersonic and hypersonic flight regimes.
Future Research and Technological Advancements
Future research on shock layers emphasizes enhanced computational fluid dynamics models to accurately predict high-speed aerodynamic phenomena and reduce uncertainties in hypersonic vehicle design. Technological advancements in experimental diagnostics, such as ultra-fast laser imaging and adaptive sensors, enable precise measurements of shock layer behavior under extreme conditions. Integrating machine learning techniques with shock and boundary layer analyses promises optimized control strategies to improve efficiency and thermal protection systems in aerospace applications.

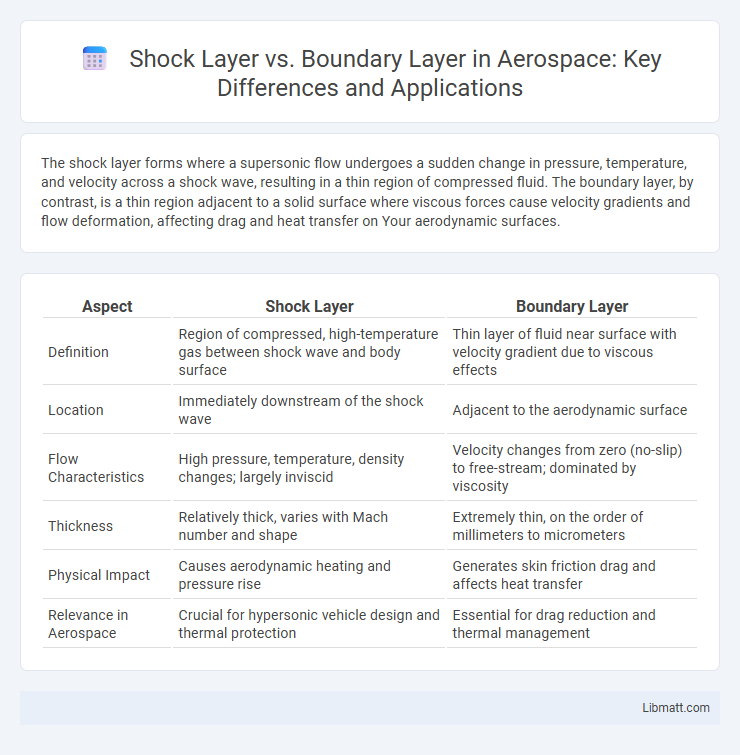

shock layer vs boundary layer Infographic
