OBD1 vs. OBD2 in Automotive Technology: Key Differences, Benefits, and Applications

OBD2 offers enhanced diagnostic capabilities and standardized data protocols compared to OBD1, making it easier for mechanics and car owners to identify and address vehicle issues efficiently. Your vehicle's diagnostic experience improves with OBD2 systems due to their broader compatibility and real-time monitoring features.

Table of Comparison

Introduction to OBD Systems

On-Board Diagnostics (OBD) systems monitor vehicle performance and emissions through standardized data protocols. OBD1, introduced in the 1980s, provided basic engine diagnostics with manufacturer-specific data formats, limiting cross-brand compatibility. OBD2, mandated from 1996 onward, offers enhanced diagnostic capabilities, universal standardized codes, and real-time data access, enabling you to efficiently monitor and troubleshoot vehicle systems.

What is OBD1?

OBD1 (On-Board Diagnostics 1) is an early automotive diagnostic system introduced in the 1980s that monitors vehicle emissions and engine performance through manufacturer-specific protocols. It primarily uses simple trouble codes and lacks standardized connectors, making diagnostic tools less compatible across different car brands. Understanding OBD1 helps you recognize the evolution of vehicle diagnostics and why modern OBD2 systems offer more comprehensive and universal monitoring capabilities.

What is OBD2?

OBD2 (On-Board Diagnostics II) is a standardized automotive protocol introduced in 1996 that monitors vehicle performance and emissions systems, providing real-time data and diagnostic trouble codes (DTCs). Compared to OBD1, OBD2 offers enhanced capabilities such as a universal connector, standardized communication protocols (e.g., CAN, ISO 9141), and comprehensive data access for engine and emission control units. This system enables technicians and vehicle owners to diagnose and repair issues more efficiently, improving emissions control and vehicle reliability.

Key Differences Between OBD1 and OBD2

OBD1 and OBD2 differ primarily in diagnostic capabilities, with OBD1 offering limited, manufacturer-specific codes, while OBD2 provides standardized codes across all vehicles. OBD2 supports real-time data monitoring and advanced diagnostics, enabling mechanics to identify issues more accurately and efficiently. The OBD2 system also includes a universal 16-pin connector and mandatory emission-related diagnostics, which were not present in OBD1 systems.

Diagnostic Capabilities: OBD1 vs OBD2

OBD2 offers enhanced diagnostic capabilities compared to OBD1 by providing standardized trouble codes that cover a wider range of vehicle systems, including emissions, engine, transmission, and ABS. Unlike OBD1, which had manufacturer-specific codes and limited real-time data, OBD2 supports real-time monitoring and standardized protocols for faster and more accurate fault detection. Your vehicle's diagnostic process is more efficient with OBD2, enabling mechanics to quickly identify and address issues with detailed data from sensors and onboard systems.

Compatibility and Vehicle Coverage

OBD1 systems are typically compatible with vehicles manufactured before 1996, primarily covering models from the early to mid-1990s with manufacturer-specific protocols. OBD2 offers broader compatibility, supporting all vehicles sold in the US from 1996 onward, including most makes and models worldwide due to standardized protocols. Ensuring your diagnostic tool matches your vehicle's OBD generation maximizes accuracy and coverage during troubleshooting.

Emissions Control and Compliance

OBD1 systems provide basic emissions monitoring and diagnostics but have limited capabilities in detecting a wide range of pollutants compared to OBD2. OBD2 enhances emissions control by continuously monitoring critical systems and components, offering real-time data for comprehensive compliance with tighter environmental regulations. Your vehicle's shift from OBD1 to OBD2 ensures improved accuracy in emissions detection, helping to maintain cleaner air and meet modern standards.

Ease of Use and Accessibility

OBD2 systems offer greater ease of use and accessibility compared to OBD1, featuring standardized connectors and protocols that work universally across most vehicles manufactured after 1996. With OBD2, you can quickly connect a scanner without special tools or modifications, whereas OBD1 often requires different adapters or more complicated wiring due to manufacturer-specific designs. Your ability to diagnose and troubleshoot vehicle issues improves significantly with OBD2's streamlined interface and widespread compatibility.

Performance and Data Collection

OBD2 offers enhanced performance and more comprehensive data collection compared to OBD1, providing real-time monitoring of engine parameters and improved diagnostic capabilities. OBD2 systems support standardized trouble codes and access to a broader range of sensors, enabling more accurate identification of vehicle issues and better emissions control. Your vehicle's maintenance and troubleshooting become more efficient with OBD2's advanced data collection and faster communication protocols.

Choosing Between OBD1 and OBD2

Choosing between OBD1 and OBD2 depends on the vehicle's model year and diagnostic needs, with OBD1 primarily used in cars manufactured before 1996 and OBD2 adopted universally after 1996 due to standardized protocols and improved diagnostic capabilities. OBD2 offers enhanced real-time data access, comprehensive fault code coverage, and compatibility with a wide range of scan tools, making it ideal for modern diagnostics and emissions testing. For classic car restorers or maintenance of older vehicles, OBD1 remains relevant but requires specific interface tools tailored to manufacturer-specific protocols.

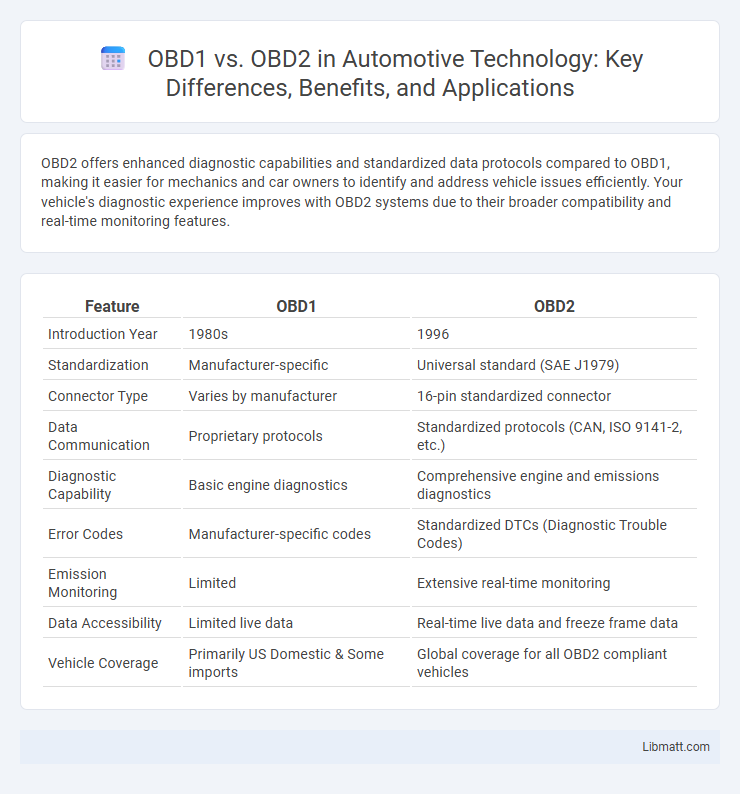

OBD1 vs OBD2 Infographic
