libmatt.com A blower door test measures your building's airtightness by using a powerful fan to depressurize the space and identify leaks, providing quantifiable data on energy loss. A smoke pencil test visually pinpoints specific air leaks by releasing smoke near potential gaps, making it ideal for quickly locating drafts without detailed measurement.
Table of Comparison
| Aspect | Blower Door Test | Smoke Pencil Test |
|---|---|---|
| Purpose | Measures building airtightness and identifies leaks. | Detects localized air leaks and airflow directions. |
| Method | Uses a calibrated fan to pressurize or depressurize the building. | Releases smoke to visualize air movement near potential leaks. |
| Scope | Whole-building airtightness assessment. | Spot-checks specific areas or components. |
| Accuracy | Quantitative and standardized measurement. | Qualitative, visual indication only. |
| Equipment | High-cost, specialized blower door system. | Low-cost, portable smoke pencil device. |
| Time Required | Typically 1-2 hours per test. | Minutes per location checked. |
| Use Case | Mandatory in energy audits and building code compliance. | Preliminary leak detection and detailed inspection. |
Introduction to Air Leakage Testing
Air leakage testing is crucial for identifying gaps in building envelopes that compromise energy efficiency and indoor air quality. The blower door test quantitatively measures the overall airtightness by creating a pressure difference and detecting airflow rates, while the smoke pencil test visually pinpoints specific leaks by releasing smoke near gaps. Your choice between these tests depends on whether you need comprehensive measurement or precise leak location.
What is a Blower Door Test?
A Blower Door Test is a diagnostic tool used to measure the airtightness of a building by depressurizing or pressurizing the structure with a powerful fan mounted in a door frame. This test identifies air leakage points, helping improve energy efficiency, indoor air quality, and comfort by detecting drafts and sealing issues. Unlike the Smoke Pencil Test, which visually detects minor airflow leaks with smoke, the Blower Door Test provides quantifiable data on the overall building envelope performance.
What is a Smoke Pencil Test?
A Smoke Pencil Test is a diagnostic tool used to detect air leaks by emitting a visible smoke stream near windows, doors, or seams in a building's envelope. This test provides a quick and visual indication of drafts, revealing areas where air infiltration occurs, which helps improve energy efficiency and indoor air quality. Unlike the comprehensive Blower Door Test that measures overall building airtightness, the Smoke Pencil Test targets specific leak sites for precise identification and sealing.
Purpose and Applications of Each Test
Blower door tests measure the airtightness of buildings by depressurizing the structure to identify leaks and quantify overall air infiltration, making them essential for energy efficiency assessments and building code compliance. Smoke pencil tests visualize air movement at specific locations, helping you pinpoint local leaks, drafts, or ventilation issues during targeted inspections or HVAC diagnostics. Each test complements the other, with blower door tests providing comprehensive envelope data while smoke pencils offer precise, localized leak detection.
Accuracy and Reliability Comparison
Blower door tests provide highly accurate and reliable measurements of a building's overall air leakage by quantifying airflow at specific pressure differences, making them ideal for comprehensive diagnostics. Smoke pencil tests offer localized visual identification of air leaks but lack the quantitative precision and repeatability of blower door tests. For thorough air infiltration analysis, your best choice is the blower door test due to its superior accuracy and consistent reliability.
Tools and Equipment Required
The blower door test requires a calibrated fan mounted in a temporary frame, pressure gauges, and a manometer to measure air leakage rates accurately. In contrast, the smoke pencil test utilizes a handheld smoke emitter that releases a thin stream of smoke to visually detect air leaks around windows, doors, and other small openings. Both tools provide essential but different data, with the blower door test quantifying overall building airtightness and the smoke pencil test pinpointing precise leak locations.
Testing Process: Step-by-Step Guide
The blower door test involves sealing your building and using a calibrated fan to depressurize the space, measuring air leakage through pressure differences detected by gauges. In contrast, the smoke pencil test uses a handheld device that emits a thin stream of smoke to visually identify air leaks around windows, doors, and other penetrations, allowing you to pinpoint specific problem areas. Both tests complement each other by providing quantitative data from the blower door and qualitative leak detection from the smoke pencil.
Cost Considerations: Blower Door vs Smoke Pencil
Blower door tests typically involve higher upfront costs due to specialized equipment priced between $3,000 and $10,000, making them a more significant investment compared to smoke pencil tests, which are relatively inexpensive and use simple tools costing under $100. While blower door tests provide comprehensive, quantitative data on building airtightness, smoke pencil tests offer quick, qualitative detection of specific air leaks at a fraction of the cost. Choosing between these methods depends on your budget constraints and whether you require detailed diagnostics or rapid, low-cost identification of airflow issues.
Pros and Cons of Each Method
The blower door test provides precise measurement of a building's air leakage by depressurizing the structure, making it highly effective for identifying overall envelope tightness but requires specialized equipment and trained personnel. The smoke pencil test is a quick, low-cost method that visually detects air leaks around specific components, which helps pinpoint localized issues but lacks the quantitative data provided by blower door tests. Your choice depends on whether you need detailed leakage rates for energy audits or a simple tool to find draft sources during routine inspections.
Choosing the Right Test for Your Needs
Selecting between a blower door test and a smoke pencil test depends on the precision and scale of air leakage detection you require. A blower door test provides comprehensive, quantitative data on overall building airtightness, making it ideal for energy audits and compliance assessments. Your choice should align with whether you need detailed whole-building analysis or quick, localized airflow visualization.

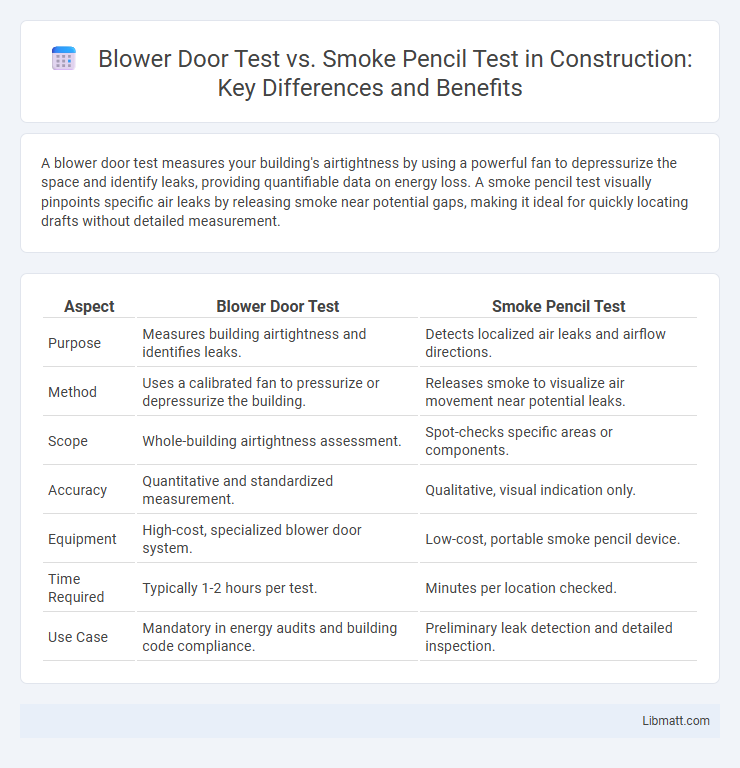

Blower door test vs Smoke pencil test Infographic
