libmatt.com An overflow scupper is a horizontal drainage outlet designed to prevent water accumulation on flat roofs or balconies by allowing excess water to flow over the edge, while an overflow drain is typically a vertical or side-mounted pipe system that directs water away from sinks, tubs, or basins to prevent flooding. Understanding how each functions helps you choose the right solution for effective water management and protection against water damage.
Table of Comparison
| Feature | Overflow Scupper | Overflow Drain |
|---|---|---|
| Definition | External opening on edge of a roof or deck allowing water to exit | Internal plumbing device that collects and drains excess water |
| Location | Perimeter edges or parapet walls | Within roof or floor structure |
| Function | Directs overflow water outside, preventing pooling | Channels overflow water to drainage system |
| Installation | Simple installation on external structure | Requires plumbing connections and integration |
| Maintenance | Easier to inspect and clear blockages | Requires access to drains and pipes for cleaning |
| Cost | Generally lower initial cost | Higher installation and maintenance costs |
| Common Applications | Flat or low-slope roofs, balconies, terraces | Commercial roofs, green roofs, plaza decks |
| Water Flow Capacity | Variable, depends on scupper size and design | Controlled flow, regulated by drain size and piping |
Introduction to Overflow Scupper and Overflow Drain
Overflow scuppers are external drainage outlets designed to prevent water accumulation on flat roofs or decks by channeling excess water off the surface, typically through wall openings. Overflow drains function as internal drainage systems integrated into roof or basin structures, capturing and directing surplus water into plumbing or stormwater management systems. Both overflow scuppers and overflow drains are crucial for effective water management, reducing potential damage from ponding and enhancing structural durability.
Definition and Basic Function
An overflow scupper is a specific type of drainage outlet designed to prevent water from pooling on flat roofs or decks by allowing excess water to escape before it reaches a critical level. An overflow drain, in contrast, serves as a secondary drainage system in plumbing or roofing setups, activated only when the primary drain is blocked or overwhelmed. Both components protect structures from water damage by redirecting surplus water, but overflow scuppers are typically open to the exterior, while overflow drains are often integrated within the plumbing system.
Key Differences Between Overflow Scupper and Overflow Drain
Overflow scuppers and overflow drains both manage excess water but differ notably in design and application. Overflow scuppers are openings built into parapet walls or railings, primarily used for stormwater drainage in rooftop or balcony settings, allowing water to escape directly outside. Overflow drains are typically integrated into the floor or surface, channeling water through internal piping systems, making them ideal for indoor or below-grade areas requiring controlled drainage.
Common Applications in Building Design
Overflow scuppers and overflow drains are essential components in building design for managing excess water on rooftops and balconies, preventing water damage and structural issues. Overflow scuppers are commonly used in flat roof systems where water needs to be directed off the roof edge, especially in commercial and industrial buildings, while overflow drains are typically installed in balconies, terraces, and planter boxes to provide controlled water drainage. Your choice between these systems depends on the specific architectural requirements and the need for effective water management to maintain building integrity.
Installation Requirements
Overflow scuppers require precise placement on the sidewalls of bathtubs or basins to effectively manage excess water, often needing waterproof sealing and adherence to local plumbing codes. Overflow drains typically demand more complex installation, integrating a secondary drainage path within the bathtub structure, which requires alignment with the main drain and proper venting to prevent airlocks. Ensuring your bathroom's design accommodates these installation specifics will prevent water damage and maintain optimal drainage performance.
Material Options and Durability
Overflow scuppers are typically made from durable materials like stainless steel, aluminum, or cast iron, offering excellent resistance to corrosion and weather elements. Overflow drains often feature PVC or ABS plastic constructions, which are lightweight and cost-effective but may lack the long-term durability of metal scuppers. Choosing the right material for your overflow system impacts its lifespan and maintenance needs significantly.
Pros and Cons of Overflow Scuppers
Overflow scuppers provide effective water drainage from flat roofs by allowing water to exit through openings in the parapet walls, preventing water accumulation and potential roof damage. Their main advantage is simplicity and low maintenance compared to overflow drains, but they may be less effective in heavy rainstorms or clogged conditions. Your choice depends on roof design and weather patterns, weighing ease of installation against potential for slower drainage.
Advantages and Disadvantages of Overflow Drains
Overflow drains prevent water spillage by allowing excess water to flow out before reaching dangerous levels, reducing flood risk and property damage. They are easy to install in bathtubs or sinks but may require regular maintenance to prevent clogs and ensure proper drainage. Unlike overflow scuppers, overflow drains typically handle lower volumes of water, making them less suitable for high-capacity overflow control in outdoor or industrial settings.
Code Compliance and Industry Standards
Overflow scuppers and overflow drains both serve critical roles in preventing water accumulation, but differ in code compliance requirements and industry standards. Overflow scuppers must meet specific dimensional and placement standards outlined in the International Plumbing Code (IPC) and often require integration with roofing and deck drainage systems to ensure proper water discharge. Overflow drains are typically governed by the Uniform Plumbing Code (UPC) and must comply with strict criteria for flow capacity, backflow prevention, and sealing to prevent leakage and contamination, ensuring robust code adherence and safety.
Choosing the Right Solution for Your Project
Choosing between an overflow scupper and an overflow drain depends on your project's specific water management needs and structural design. Overflow scuppers are ideal for flat roofs or terraces where water must be quickly directed off the edge, while overflow drains excel in pools and basins, providing efficient internal water removal. Understanding your project's drainage requirements ensures you select the best solution to prevent water damage and maintain structural integrity.

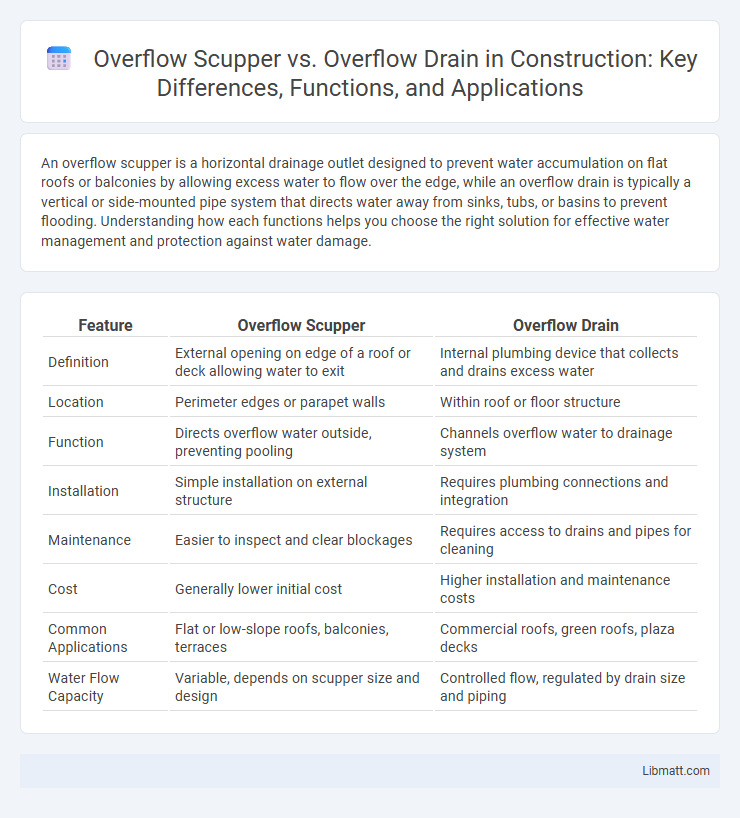

Overflow scupper vs overflow drain Infographic
