libmatt.com Segmental retaining walls use interlocking concrete blocks without mortar, providing flexibility and ease of installation, ideal for landscaping and erosion control. Gravity walls rely on their massive weight, often made of stone or concrete, to resist soil pressure, making them suitable for higher load-bearing and structural support.
Table of Comparison
| Feature | Segmental Retaining Wall | Gravity Wall |
|---|---|---|
| Definition | Modular blocks interlocked without mortar to retain soil. | Massive concrete or stone structure relying on weight for stability. |
| Material | Precast concrete blocks or stone units. | Concrete, stone, or masonry. |
| Height Capability | Up to 4 meters typically. | Can exceed 6 meters with proper design. |
| Installation | Quick, no curing time required. | Longer due to concrete curing and formwork. |
| Drainage | Built-in drainage due to block joints. | Requires additional drainage systems. |
| Flexibility | Highly flexible, handles soil movement well. | Rigid structure, less adaptable to soil shifts. |
| Cost | Moderate; lower labor costs. | Higher cost due to materials and labor. |
| Maintenance | Low; easy block replacement. | Moderate; potential for cracks and repairs. |
| Environmental Impact | Eco-friendly, uses less concrete. | Higher carbon footprint due to mass concrete use. |
Introduction to Segmental Retaining Walls and Gravity Walls
Segmental retaining walls consist of interlocking concrete units that rely on the weight of the units and the soil reinforcement behind them for stability, allowing for flexibility and ease of installation. Gravity walls depend solely on their massive weight and the friction between the wall base and soil to resist lateral earth pressure, typically constructed from concrete, stone, or masonry. Both wall types serve to stabilize slopes and prevent soil erosion, with segmental walls offering modular design advantages and gravity walls providing robust structural mass.
Key Differences Between Segmental and Gravity Walls
Segmental retaining walls consist of interlocking modular units without mortar, allowing flexibility and ease of installation, whereas gravity walls rely on their mass and weight to resist soil pressure. Segmental walls efficiently accommodate differential settlement and are typically constructed using concrete blocks, while gravity walls often use heavy materials like concrete or stone to provide stability. Maintenance is simpler for segmental walls due to their adaptability, contrasting with gravity walls that require substantial foundation work and are less tolerant to ground movement.
Materials Used in Segmental vs Gravity Walls
Segmental retaining walls primarily use interlocking concrete blocks made from high-strength, durable aggregates designed for flexibility and ease of installation. Gravity walls rely on massive materials such as poured concrete, natural stone, or heavy concrete masonry units to resist soil pressure through their own weight. The choice of materials in segmental walls supports modular construction and drainage, while gravity walls depend on mass and rigidity for stability.
Structural Design and Engineering Considerations
Segmental retaining walls rely on interlocking concrete blocks that distribute loads through friction and soil reinforcement, requiring careful geotechnical analysis to ensure stability against sliding and overturning. Gravity walls depend on their massive weight and base dimensions to resist earth pressures, emphasizing the importance of material density and foundation strength in structural design. Engineering considerations for segmental walls include modular block selection and drainage systems, while gravity walls necessitate robust foundation design and adequate wall thickness to prevent structural failure.
Installation Process: Segmental vs Gravity Retaining Walls
Segmental retaining walls feature interlocking modular units that allow for flexible, faster installation with minimal heavy equipment, making them ideal for projects requiring precise adjustments and phased construction. Gravity retaining walls rely on their massive weight to resist pressure, necessitating extensive excavation, formwork, and curing time for concrete or stone placement, resulting in a more labor-intensive and prolonged installation process. The modular nature of segmental walls enables efficient drainage integration and reduces soil compaction compared to the rigid, monolithic structure of gravity walls.
Cost Comparison: Segmental Wall vs Gravity Wall
Segmental retaining walls generally offer a cost advantage over gravity walls due to their modular design, which reduces labor and material expenses. Gravity walls require more substantial materials like poured concrete or massive stone blocks, increasing overall project costs. Your choice will impact your budget significantly, with segmental walls providing an economical solution without compromising structural integrity.
Maintenance Requirements for Each Wall Type
Segmental retaining walls require minimal maintenance due to their interlocking modular blocks that allow for easy replacement and adjustment without major structural work. Gravity walls, constructed from massive materials such as concrete or stone, may demand more frequent inspections and repairs to address potential cracking or erosion caused by soil pressure and weathering. Your choice should consider the long-term maintenance effort aligned with the wall's design and environmental conditions.
Durability and Longevity: Segmental vs Gravity Walls
Segmental retaining walls, constructed from interlocking modular blocks, offer enhanced durability through flexibility, allowing them to withstand ground movement without cracking. Gravity walls rely on their mass and weight to resist pressure, which can lead to cracking and reduced longevity if settling or soil erosion occurs. Your choice affects longevity, with segmental walls typically providing longer-lasting performance in dynamic soil conditions.
Best Applications and Use Cases
Segmental retaining walls excel in residential landscaping and commercial projects requiring flexibility, ease of installation, and drainage control, often used for terracing, garden beds, and low to mid-height slopes. Gravity walls are ideal for heavy load-bearing situations and steep slopes where structural stability is critical, commonly found in highway embankments, large-scale erosion control, and industrial site retention. Selecting the right retaining wall depends on soil conditions, load requirements, and aesthetic preferences specific to the project's environmental and engineering demands.
Choosing the Right Retaining Wall for Your Project
When choosing the right retaining wall for your project, Segmental Retaining Walls (SRWs) offer modular construction, flexibility, and ease of installation, making them ideal for landscaping and residential applications. Gravity walls rely on their massive weight to resist soil pressure, suited for heavy-duty, large-scale projects where space and budget allow for more substantial materials like concrete or stone. Consider soil conditions, wall height, aesthetic preferences, and budget constraints to determine whether the engineered stability of segmental retaining walls or the solid mass of gravity walls best meets your project's requirements.

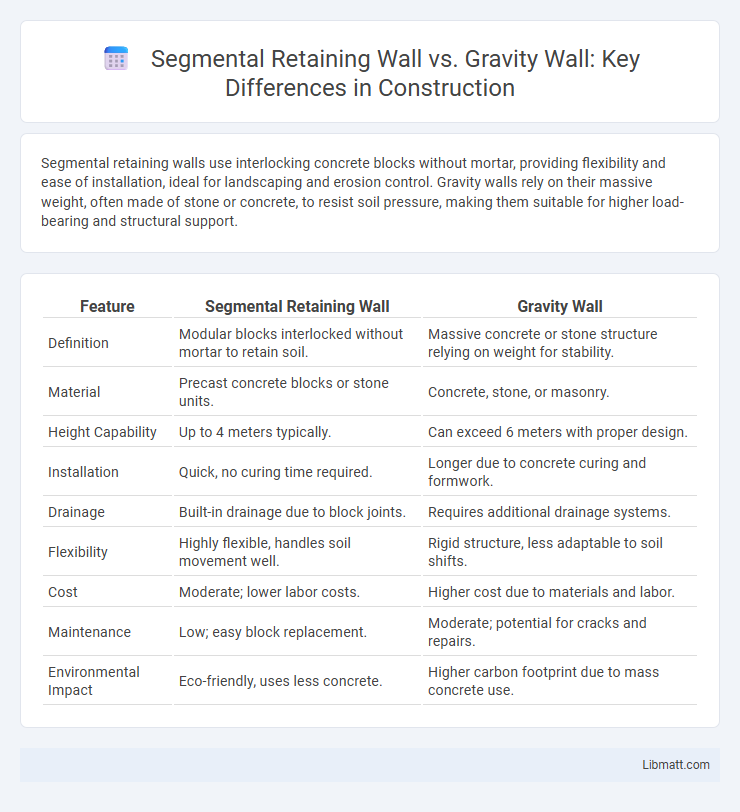

Segmental retaining wall vs gravity wall Infographic
