libmatt.com Synthetic aperture radar (SAR) uses the motion of the radar antenna over a target region to create high-resolution images, while inverse synthetic aperture radar (ISAR) relies on the target's motion to generate detailed images. Your choice depends on whether the radar platform or the target is moving, affecting image clarity and application suitability.
Table of Comparison
| Feature | Synthetic Aperture Radar (SAR) | Inverse Synthetic Aperture Radar (ISAR) |
|---|---|---|
| Principle | Radar platform movement creates synthetic aperture for high-resolution imaging. | Target movement generates the synthetic aperture to form detailed images. |
| Typical Platform | Airborne or Spaceborne radars. | Stationary radar observing moving targets (e.g., ships, aircraft). |
| Imaging Focus | Terrain and stationary object imaging with high spatial resolution. | Imaging of moving targets to analyze target structure and motion. |
| Resolution | High azimuth and range resolution via platform motion. | High resolution primarily dependent on target motion dynamics. |
| Applications | Mapping, reconnaissance, surveillance, ground target detection. | Target identification, tracking, classification in maritime and aerial defense. |
| Motion Dependency | Platform must move; target can be stationary. | Target movement critical; platform is often fixed. |
| Signal Processing | Complex motion compensation for platform trajectory. | Motion estimation of target essential for image formation. |
Introduction to Synthetic Aperture Radar (SAR)
Synthetic Aperture Radar (SAR) is a high-resolution radar imaging technology that uses the motion of the radar antenna over a target region to create detailed two-dimensional or three-dimensional images. Unlike conventional radar, SAR synthesizes a large antenna aperture by processing multiple radar returns, resulting in finer spatial resolution regardless of weather or lighting conditions. Inverse Synthetic Aperture Radar (ISAR) differs by utilizing the target's motion to generate images, making SAR primarily suited for ground mapping and ISAR optimal for moving targets such as ships or aircraft.
Fundamentals of Inverse Synthetic Aperture Radar (ISAR)
Inverse Synthetic Aperture Radar (ISAR) generates high-resolution images of targets by exploiting the relative motion between the radar sensor and the target, unlike Synthetic Aperture Radar (SAR) which relies on the movement of the radar platform itself. ISAR uses Doppler frequency shifts caused by target rotation or motion to synthesize a large aperture, enabling two-dimensional imaging of objects such as ships or aircraft. The fundamental principle behind ISAR involves processing the backscattered radar signals to extract spatial information based on the target's rotational dynamics, resulting in detailed cross-range resolution essential for target identification and classification.
Key Differences Between SAR and ISAR
Synthetic aperture radar (SAR) generates high-resolution images by moving the radar antenna over a target area, effectively synthesizing a large antenna aperture to capture detailed ground imagery. Inverse synthetic aperture radar (ISAR) creates images by exploiting the relative motion of the target itself, typically rotating or translating, to produce detailed imaging of moving objects such as ships or aircraft. SAR is predominantly used for fixed or slowly moving terrain mapping, while ISAR is optimized for dynamic, moving target imaging due to its reliance on target-induced Doppler shifts.
Principles of Operation: SAR vs ISAR
Synthetic Aperture Radar (SAR) operates by moving the radar antenna along a fixed path, typically on an aircraft or satellite, to create high-resolution two-dimensional images by synthesizing a large antenna aperture from the motion. Inverse Synthetic Aperture Radar (ISAR) generates images by exploiting the relative motion between the target and the radar system, often using the target's rotational movement to achieve synthetic aperture effects and produce two-dimensional or three-dimensional images. While SAR relies primarily on platform motion for imaging, ISAR uses target motion, making ISAR particularly suitable for tracking and imaging moving objects such as ships or aircraft.
Imaging Capabilities and Resolution Comparison
Synthetic aperture radar (SAR) utilizes platform motion to generate high-resolution, two-dimensional images of stationary targets by synthesizing a large antenna aperture, enabling detailed terrain mapping and object detection. Inverse synthetic aperture radar (ISAR), on the other hand, leverages the relative motion of the target itself to produce high-resolution images, making it ideal for imaging moving targets like ships or aircraft with fine structural detail. Your choice between SAR and ISAR depends on whether the platform or the target motion will be used for image formation, directly impacting achievable resolution and imaging capabilities.
Application Areas: SAR vs ISAR
Synthetic Aperture Radar (SAR) is primarily used for high-resolution imaging of stationary or slowly moving objects and terrain, making it ideal for applications like topographic mapping, environmental monitoring, and surveillance from airborne or satellite platforms. Inverse Synthetic Aperture Radar (ISAR) excels in imaging targets with relative motion, such as ships, aircraft, and moving vehicles, enabling detailed target recognition and tracking in maritime and defense operations. SAR provides consistent terrain mapping regardless of weather or lighting conditions, while ISAR leverages target motion to generate high-resolution images critical for identifying and classifying moving objects.
Target Motion Effects in SAR and ISAR
Synthetic aperture radar (SAR) and inverse synthetic aperture radar (ISAR) differ primarily in how target motion affects image formation; SAR relies on the motion of the radar platform to synthesize the aperture, while ISAR exploits the relative motion of the target itself. Target motion in SAR can introduce distortions such as blurring or defocusing if not properly compensated, as the platform's trajectory must be accurately known for precise imaging. In ISAR, target motion is the key to generating cross-range resolution, but complex or non-uniform motions require advanced processing techniques to mitigate image degradation and enhance target recognition, improving your situational awareness.
Advantages and Limitations of SAR and ISAR
Synthetic Aperture Radar (SAR) offers high-resolution imaging by moving the radar platform itself, enabling detailed ground mapping regardless of weather or lighting conditions, but it requires substantial data processing and stable platform motion. Inverse Synthetic Aperture Radar (ISAR) generates images by utilizing the relative motion of the target rather than the radar, making it ideal for tracking and identifying moving objects like ships and aircraft, though its resolution depends heavily on target motion and is less effective for static scenes. Your choice between SAR and ISAR depends on whether you prioritize terrain mapping with consistent clarity or target characterization through motion-based imaging.
Technological Developments and Future Trends
Synthetic aperture radar (SAR) has evolved through advancements in signal processing algorithms and miniaturized hardware, enabling high-resolution, all-weather imaging from airborne and satellite platforms. Inverse synthetic aperture radar (ISAR) technology leverages target motion to generate detailed imaging, with recent developments focusing on real-time target recognition and adaptive motion compensation. Future trends in both SAR and ISAR include integration with artificial intelligence for enhanced scene interpretation, deployment on unmanned systems, and improved electromagnetic spectrum utilization for covert and resilient surveillance.
Summary: Choosing Between SAR and ISAR
Synthetic aperture radar (SAR) excels in generating high-resolution images of stationary landscapes by utilizing the motion of the radar platform to simulate a large antenna aperture. Inverse synthetic aperture radar (ISAR) is optimized for imaging moving targets, relying on the target's motion to create detailed cross-range resolution. Selecting between SAR and ISAR depends on whether the focus is on static terrain mapping or dynamic target imaging, with SAR favored for geospatial applications and ISAR preferred for maritime and airborne target identification.

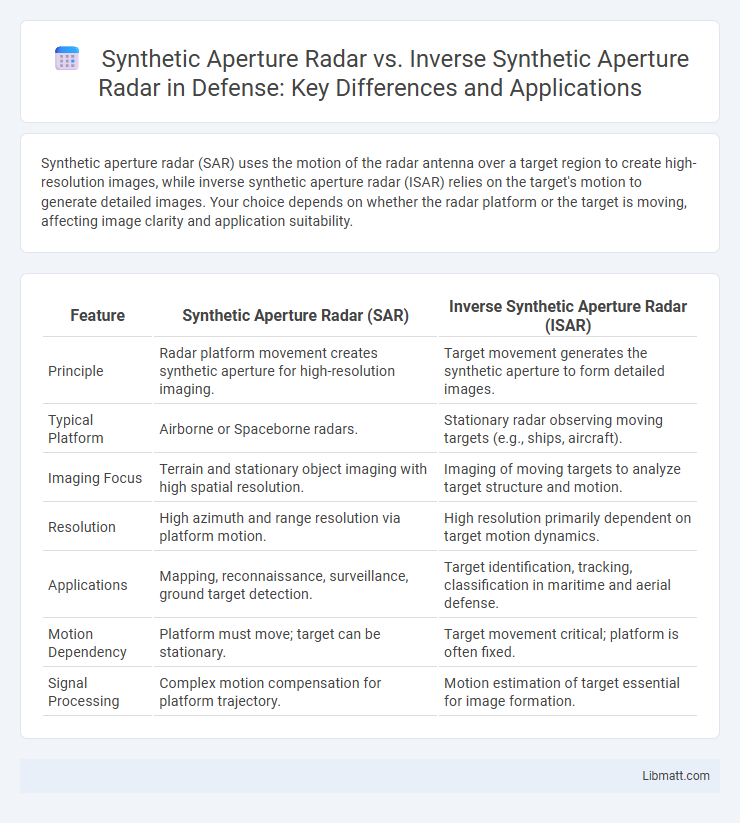

Synthetic aperture radar vs Inverse synthetic aperture radar Infographic
