libmatt.com Current Transformers (CTs) accurately measure high current by producing a reduced current proportional to the primary current, while Voltage Transformers (VTs) provide a scaled-down voltage representation of the primary voltage for monitoring and protection purposes. Your choice depends on whether you need precise current measurement for load monitoring or voltage measurement for system control and metering.
Table of Comparison
| Feature | Current Transformer (CT) | Voltage Transformer (VT) |
|---|---|---|
| Function | Steps down high current to measurable low current | Steps down high voltage to measurable low voltage |
| Primary Parameter | Current | Voltage |
| Output | Proportional current | Proportional voltage |
| Typical Use | Measurement and protection in high-current circuits | Measurement and protection in high-voltage circuits |
| Construction | Low-turn secondary winding, high current on primary conductor | High-turn secondary winding, low current on primary winding |
| Safety | Secondary must not open under load (danger of high voltage) | Secondary side insulated for user safety |
| Accuracy | High accuracy for current measurement and relay operation | High accuracy for voltage measurement |
| Typical Application | Power system protection, energy metering | Power system monitoring, voltage metering |
Introduction to Current Transformers and Voltage Transformers
Current transformers (CTs) are instrument transformers used to measure alternating current (AC) by producing a reduced current accurately proportional to the current in the circuit, enabling safe and convenient monitoring. Voltage transformers (VTs), also known as potential transformers (PTs), are designed to step down high voltages to lower, standardized levels suitable for metering and protective relaying in electrical power systems. Both CTs and VTs provide electrical isolation and enable precise measurement of high voltage or current values without direct contact.
Fundamental Differences between CTs and VTs
Current Transformers (CTs) and Voltage Transformers (VTs) serve distinct functions in electrical systems, with CTs primarily designed to measure high current by producing a reduced proportional current suitable for metering and protection, while VTs convert high voltage to a standardized lower voltage for accurate voltage measurement and relay operation. CTs have low secondary voltage but high current output, whereas VTs generate low current with a voltage output proportional to the primary voltage. Your choice between CTs and VTs depends on whether current or voltage measurement is critical for system monitoring and protection.
Construction and Design Aspects
Current transformers (CTs) consist of a primary winding, typically a single turn or conductor carrying the current to be measured, and a secondary winding with many turns to produce a reduced current proportional to the primary. Voltage transformers (VTs), also known as potential transformers, have a primary winding designed to handle high voltage input and a secondary winding that provides a scaled-down, accurate voltage output for measurement and protection. CTs are generally constructed with a magnetic core to concentrate the magnetic flux generated by the primary current, while VTs feature insulation and physical spacing tailored to withstand high voltage stress and ensure safety in voltage measurement.
Working Principle of Current Transformers
Current transformers (CTs) operate on the principle of electromagnetic induction, where the primary winding carrying the current to be measured creates a magnetic flux in the transformer core. This magnetic flux induces a proportional current in the secondary winding, which is safely measurable by instruments. Your electrical system relies on CTs to accurately step down high currents to lower, standardized values for monitoring and protection.
Working Principle of Voltage Transformers
Voltage transformers operate by stepping down high voltages to measurable lower levels using electromagnetic induction, allowing safe and accurate voltage monitoring in power systems. They consist of primary and secondary windings wrapped around a laminated iron core, where the primary winding receives the high voltage and the secondary winding produces a proportional lower voltage. This precise voltage transformation enables your electrical equipment to operate reliably and supports effective system protection and metering.
Applications in Electrical Power Systems
Current transformers (CTs) are primarily used for measuring high currents and providing input to protective relays and metering devices in electrical power systems, enabling accurate current monitoring and fault detection. Voltage transformers (VTs), also known as potential transformers, are designed to step down high voltages to measurable levels for voltage monitoring, control, and protection purposes in substations and transmission lines. Both devices ensure safe and precise measurement, crucial for the effective operation and protection of power system infrastructure.
Accuracy and Measurement Capabilities
Current transformers (CTs) provide highly accurate measurement of high currents by stepping down current to a standardized low value for metering and protection, with typical accuracy classes ranging from 0.1 to 3.0. Voltage transformers (VTs), also known as potential transformers, deliver precise voltage scaling, maintaining accuracy levels around 0.1 to 0.5 class for voltage measurement and relay operation. While CTs excel in accurate current measurement under high load conditions, VTs are optimized for voltage measurement and insulation, ensuring reliable data for power system analysis and protection schemes.
Safety Considerations and Risks
Current transformers (CTs) and voltage transformers (VTs) each present unique safety considerations and risks in electrical systems. A CT can cause dangerous high voltages if operated with an open secondary circuit, posing significant shock and equipment damage hazards, while a VT primarily carries lower currents but must be handled carefully to avoid insulation failure and short circuits. Ensuring proper installation, maintenance, and adherence to standards helps protect your equipment and personnel from electrical faults associated with both transformer types.
Selection Criteria: When to Use CTs vs VTs
Current Transformers (CTs) are selected primarily for applications requiring precise measurement or protection of high current circuits, such as in power distribution and motor protection systems, where they step down current to a manageable level for metering and relays. Voltage Transformers (VTs), also known as Potential Transformers (PTs), are chosen when accurate voltage measurement and isolation are needed in high voltage networks, enabling safe monitoring and control of voltage levels for metering and protective relays. The selection between CTs and VTs depends on the electrical parameter to be measured--current or voltage--and the necessity for electrical isolation and measurement accuracy in the specific power system application.
Summary Table: CT vs VT Comparison
Current Transformers (CTs) and Voltage Transformers (VTs) serve distinct roles in electrical systems, with CTs primarily measuring high current by stepping it down to a safe level, whereas VTs focus on scaling voltage for metering and protection. CTs feature a primary winding with high current and a secondary winding with low current; VTs have a high voltage primary winding and a low voltage secondary. Your choice between CT and VT depends on whether current or voltage measurement is needed, as summarized in their operational ranges, accuracy classes, and typical use cases.

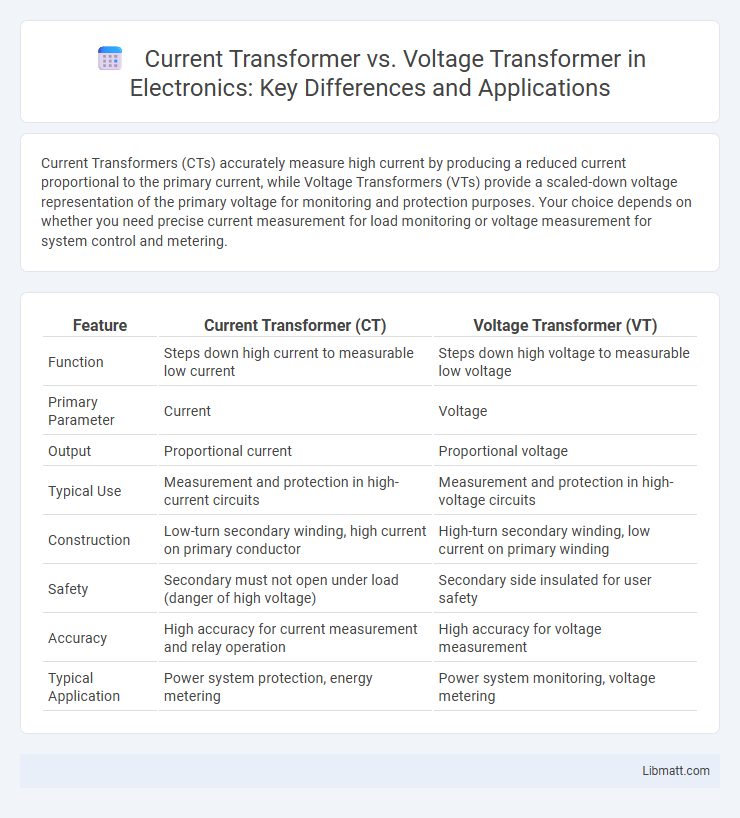

Current Transformer vs Voltage Transformer Infographic
