libmatt.com Ferrite beads suppress high-frequency noise by dissipating it as heat, making them ideal for EMI filtering in sensitive circuits, while inductors store energy in a magnetic field and are used for filtering and energy storage in power supplies. Your choice depends on whether you need noise attenuation with minimal inductance (ferrite bead) or energy storage and precise filtering (inductor).
Table of Comparison
| Feature | Ferrite Bead | Inductor |
|---|---|---|
| Purpose | Noise suppression, high-frequency filtering | Energy storage, filtering, tuning circuits |
| Frequency Range | High-frequency (MHz to GHz) | Low to mid frequency (kHz to MHz) |
| Impedance Characteristics | Resistive at high frequencies | Inductive reactance, frequency dependent |
| Energy Storage | Negligible | Significant magnetic energy storage |
| Core Material | Ferrite ceramic | Ferrite, iron powder, air core |
| Typical Applications | EMI suppression on power lines, signal lines | Filters, oscillators, transformers |
| Size and Cost | Small, low cost | Varies, generally larger and costlier |
| Q Factor | Low Q (lossy) | High Q (energy efficient) |
Introduction to Ferrite Beads and Inductors
Ferrite beads and inductors are essential passive components widely used in electronic circuits for noise suppression and signal filtering. Ferrite beads primarily function by dissipating high-frequency noise energy as heat, effectively reducing electromagnetic interference (EMI) in power lines and signal paths. Inductors store energy in a magnetic field when electrical current passes through, enabling them to filter signals and manage current flow in power supplies and RF circuits.
Core Functional Differences
Ferrite beads primarily act as high-frequency noise suppressors by dissipating electromagnetic interference as heat, while inductors store energy in a magnetic field and filter signals based on inductance. The core material of a ferrite bead is designed for lossy impedance at high frequencies, whereas inductors utilize magnetic cores or air cores to maintain energy without significant power loss. Understanding these core functional differences helps optimize your circuit's noise reduction and signal integrity.
Construction and Material Comparison
Ferrite beads are composed primarily of ferrite, a ceramic-like magnetic material, molded into a bead shape with a central hole for wire winding, offering high-frequency noise suppression through resistive losses. Inductors consist of wire coils wound around magnetic cores made from materials like ferrite or powdered iron, designed to store energy in a magnetic field and provide inductance. While ferrite beads emphasize dissipation of EMI through their lossy magnetic core, inductors focus on energy storage and magnetic coupling with minimal resistive loss.
Typical Applications in Electronics
Ferrite beads are commonly used in electronics to suppress high-frequency noise and EMI in power lines and signal circuits, making them ideal for filtering in consumer electronics, computers, and communication devices. Inductors serve broader purposes such as energy storage in power supplies, tuning circuits in radios, and filtering low-frequency signals in audio equipment. Your choice between a ferrite bead and an inductor depends on the specific frequency range and filtering needs of your electronic application.
Frequency Response and Performance
Ferrite beads exhibit high impedance at high frequencies, effectively suppressing electromagnetic interference (EMI) by dissipating high-frequency noise as heat, making them ideal for filtering signals above 10 MHz. Inductors provide low-frequency energy storage and impedance that increases with frequency but maintain lower loss and higher Q factor, which is crucial for tuning circuits and power applications typically below 1 MHz. The performance of ferrite beads degrades at lower frequencies due to reduced impedance, while inductors deliver consistent reactive performance across a wider frequency range, influencing design choices based on targeted frequency response and noise suppression needs.
EMI Suppression Capabilities
Ferrite beads excel in EMI suppression by absorbing high-frequency noise and dissipating it as heat, making them ideal for filtering broadband interference in electronic circuits. Inductors provide EMI suppression through their ability to store energy in a magnetic field, effectively blocking low-frequency noise while allowing DC current to pass. Your choice between ferrite bead and inductor depends on the specific frequency range and nature of the electromagnetic interference in your application.
Selection Criteria for Designers
Ferrite beads and inductors serve different functions in filtering and noise suppression, with selection criteria based on frequency range, impedance characteristics, and application requirements. For high-frequency noise attenuation in compact circuits, ferrite beads offer low DC resistance and effective suppression without significant inductance, making them ideal for signal line filtering. Your design choice depends on whether you need wideband noise reduction (ferrite bead) or precise inductance for energy storage and filtering (inductor), guided by factors like current rating, insertion loss, and board space.
Advantages and Limitations of Each Component
Ferrite beads offer superior high-frequency noise suppression and are compact, making them ideal for EMI filtering in densely packed circuits, but they exhibit increased insertion loss at lower frequencies. Inductors provide stable inductance with minimal signal loss over a wide frequency range, supporting energy storage and filtering applications effectively; however, they tend to be larger and more expensive, and their effectiveness diminishes at very high frequencies due to parasitic capacitance. Choosing between ferrite beads and inductors depends on specific requirements such as frequency range, size constraints, and cost considerations in signal filtering and noise reduction tasks.
Cost and Availability Considerations
Ferrite beads generally offer lower cost and higher availability due to their simple construction and widespread use in filtering high-frequency noise in electronic circuits. Inductors tend to be more expensive and may have longer lead times because of their precise magnetic core materials and winding processes required for specific inductance values. Selecting ferrite beads or inductors often depends on budget constraints and component sourcing from manufacturers and distributors.
Summary: Choosing Between Ferrite Bead and Inductor
Ferrite beads and inductors serve distinct roles in electronic circuits, with ferrite beads primarily used for high-frequency noise suppression and inductors for energy storage and filtering in power applications. Your choice depends on whether the application demands noise attenuation or reactive energy management, as ferrite beads offer simple impedance increase at high frequencies while inductors provide defined inductance values. Selecting the right component ensures optimal circuit performance and electromagnetic interference (EMI) control.

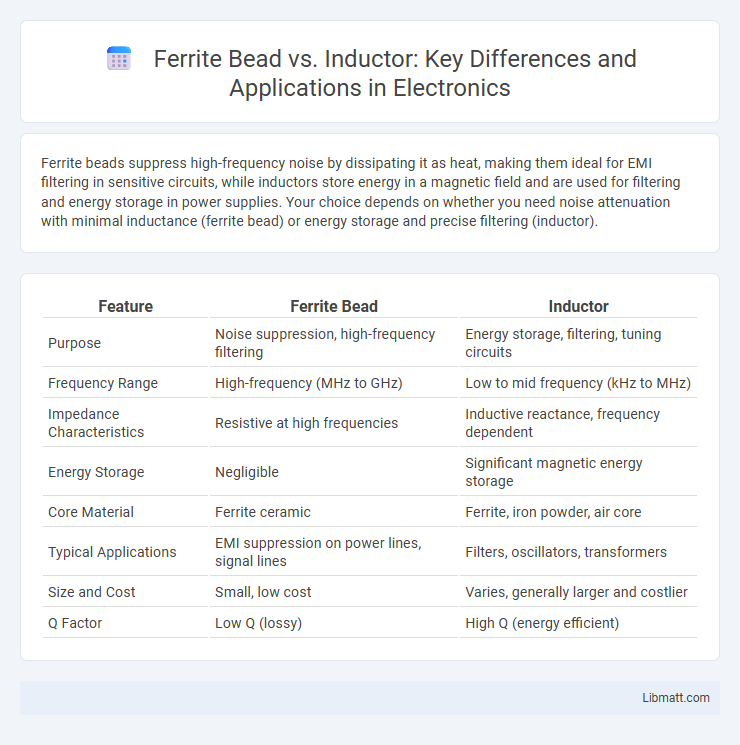

Ferrite Bead vs Inductor Infographic
