libmatt.com Low dropout (LDO) regulators offer the advantage of maintaining a stable output voltage even when the input voltage drops close to the output voltage, making them ideal for battery-powered devices where efficiency and minimal voltage differences are crucial. Standard linear regulators, while simpler and generally less expensive, require a higher voltage difference between input and output, resulting in increased power dissipation and reduced efficiency in low voltage headroom scenarios.
Table of Comparison
| Feature | Low Dropout Regulator (LDO) | Standard Linear Regulator |
|---|---|---|
| Dropout Voltage | Typically < 0.3V, minimal voltage difference required | Usually > 1.5V, higher voltage difference needed |
| Power Efficiency | Higher efficiency at low voltage differentials | Lower efficiency due to larger dropout voltage |
| Application | Battery-powered devices, portable electronics | General-purpose power regulation with ample input voltage |
| Thermal Performance | Lower power dissipation, reduced heat generation | Higher heat dissipation, requires better heat sinking |
| Complexity & Cost | Typically more complex, slightly higher cost | Simpler design, generally lower cost |
| Output Noise | Generally low output noise and ripple | May have higher noise levels |
| Input Voltage Range | Operates efficiently with small input-output voltage difference | Requires larger input voltage above output |
Introduction to Voltage Regulators
Voltage regulators maintain a constant output voltage despite variations in input voltage or load current, ensuring stable power supply for electronic devices. Low dropout (LDO) regulators have a minimal voltage difference between input and output, enabling efficient operation with low input voltages compared to standard linear regulators. Standard linear regulators typically require a larger voltage differential to regulate effectively, resulting in higher power dissipation and less efficiency in low-voltage applications.
Understanding Linear Regulators
Low dropout (LDO) regulators operate with a minimal voltage difference between input and output, enabling efficient power management in low-voltage applications. Standard linear regulators require a higher voltage drop to maintain regulation, resulting in increased power dissipation and lower efficiency. Understanding these differences is crucial for selecting the appropriate regulator to optimize thermal performance and battery life in electronic designs.
What is a Low Dropout (LDO) Regulator?
A Low Dropout (LDO) regulator is a type of linear voltage regulator designed to maintain a stable output voltage with a very small difference between input and output voltages, known as dropout voltage. LDO regulators are ideal for battery-powered devices and applications requiring efficient power management at low voltage differentials. Compared to standard linear regulators, LDOs provide better performance in scenarios where the input voltage is only slightly higher than the desired output voltage, minimizing power loss and heat dissipation.
Standard Linear Regulator Overview
Standard linear regulators provide a simple and cost-effective solution for voltage regulation by maintaining a fixed output voltage from a higher input voltage using a pass element and feedback control. These regulators typically have a dropout voltage of around 1.5 to 2 volts, making them suitable for applications where the input voltage is sufficiently higher than the desired output. Your choice of a standard linear regulator ensures stable voltage with minimal noise, ideal for sensitive analog or digital circuits without the need for complex designs.
Key Differences: LDO vs Standard Linear Regulators
Low dropout (LDO) regulators feature a minimal voltage difference between input and output, enabling efficient power management in low-voltage applications, whereas standard linear regulators typically require a higher voltage differential. LDOs excel in battery-powered and noise-sensitive devices due to lower dropout voltage and improved thermal performance. Standard linear regulators, although simpler and cost-effective, are less efficient under low input-output voltage conditions and generate more heat.
Efficiency Comparison
Low dropout (LDO) regulators offer higher efficiency than standard linear regulators by operating with a much smaller voltage difference between input and output, significantly reducing power dissipation and heat generation. Standard linear regulators typically drop excess voltage as heat, resulting in lower efficiency, especially when the input-to-output voltage differential is large. Efficiency in LDOs can approach 90% or higher under optimal conditions, while standard linear regulators often remain below 60%, making LDOs preferable for battery-powered and heat-sensitive applications.
Dropout Voltage Explained
Dropout voltage refers to the minimum difference between input and output voltage required for a linear regulator to maintain a stable output. Low dropout (LDO) regulators feature a significantly lower dropout voltage compared to standard linear regulators, allowing your device to operate efficiently with input voltages closer to the desired output voltage. This reduced dropout voltage minimizes power loss and heat generation, making LDOs ideal for battery-powered applications where efficiency is crucial.
Applications and Use Cases
Low dropout (LDO) regulators are preferred in battery-powered devices, portable electronics, and RF applications due to their ability to maintain regulation with minimal input-output voltage difference, enhancing power efficiency and extending battery life. Standard linear regulators find broad use in applications where input voltage is sufficiently higher than the output, such as in power supplies for microcontrollers, industrial equipment, and systems requiring simple, low-noise voltage regulation. LDOs are ideal for noise-sensitive circuits and situations demanding low quiescent current, while standard linear regulators are suitable for robust, cost-effective voltage stabilization in less voltage-constrained environments.
Pros and Cons of LDO Regulators
Low dropout (LDO) regulators offer superior efficiency in low voltage differential scenarios compared to standard linear regulators, significantly minimizing power loss and heat generation. However, LDOs often have limited current handling capabilities and may suffer from poor noise rejection at higher frequencies. Standard linear regulators provide simpler design and better transient response but are less efficient due to higher dropout voltage and increased power dissipation.
Choosing the Right Regulator for Your Design
Low dropout (LDO) regulators are ideal for applications requiring a minimal voltage difference between input and output, maximizing efficiency in battery-powered devices. Standard linear regulators offer simplicity and lower cost but suffer from higher dropout voltage, which can limit performance in low-voltage scenarios. You should choose an LDO when optimizing for power efficiency and compact design, while a standard regulator suits designs where cost and heat dissipation are less critical.

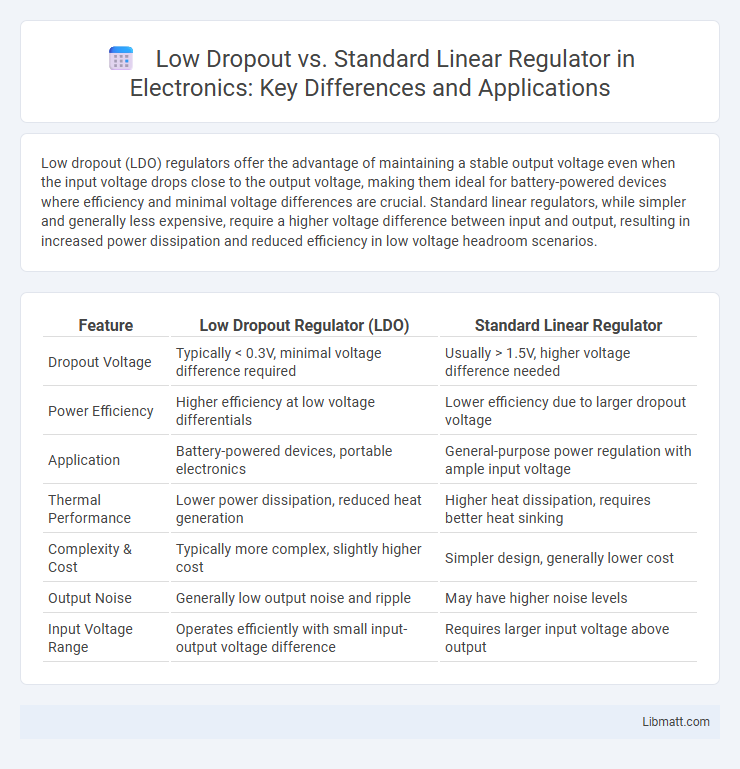

Low dropout vs Standard linear regulator Infographic
