GaN semiconductors offer higher electron mobility and efficiency at high frequencies, making them ideal for RF and power electronics, whereas SiC semiconductors excel in high-voltage and high-temperature environments due to their superior thermal conductivity and breakdown voltage. You can choose GaN for compact, high-speed applications and SiC for robust, high-power systems requiring exceptional durability.
Table of Comparison
Feature | GaN (Gallium Nitride) | SiC (Silicon Carbide) |
---|---|---|
Bandgap Energy | 3.4 eV (Wide bandgap) | 3.3 eV (Wide bandgap) |
Electron Mobility | ~2000 cm2/V*s (High) | ~900 cm2/V*s (Moderate) |
Breakdown Voltage | High (up to 650 V+) | Very High (up to 3300 V+) |
Switching Speed | Very Fast (GHz range) | Fast (MHz range) |
Thermal Conductivity | 1.3-1.9 W/cm*K | 4.9 W/cm*K (Excellent) |
Applications | Power amplifiers, RF devices, fast switching power supplies | High-power converters, inverters, electric vehicles, industrial motors |
Cost | Moderate, growing adoption | Higher, mature technology |
Introduction to GaN and SiC Semiconductors
Gallium Nitride (GaN) and Silicon Carbide (SiC) are wide bandgap semiconductors known for high efficiency and thermal conductivity in power electronics. GaN excels in high-frequency, high-electron-mobility applications, while SiC offers superior robustness for high-voltage environments. Your choice between GaN and SiC depends on the specific demands of power density, switching speed, and thermal management in your semiconductor design.
Material Properties: GaN vs SiC
Gallium Nitride (GaN) exhibits a wider bandgap of approximately 3.4 eV compared to Silicon Carbide's (SiC) 3.26 eV, enabling higher breakdown voltages and better efficiency in high-power applications. GaN offers superior electron mobility reaching 1500 cm2/V*s, which contributes to faster switching speeds than SiC, which typically has electron mobility around 900 cm2/V*s. Thermal conductivity of SiC is higher, about 3.7 W/cm*K, surpassing GaN's 1.3 W/cm*K, making SiC more effective at heat dissipation in high-temperature environments.
Efficiency Comparison in Power Electronics
Gallium Nitride (GaN) semiconductors exhibit higher efficiency than Silicon Carbide (SiC) in power electronics due to their lower on-resistance and faster switching speeds, which reduce energy losses during operation. SiC devices excel in high-voltage applications but typically have higher switching losses compared to GaN, impacting overall efficiency in medium-voltage ranges. Your power electronics design can benefit from choosing GaN for efficiency-driven systems requiring rapid switching, while SiC suits high-power, high-temperature environments.
Thermal Management and Heat Dissipation
Gallium Nitride (GaN) semiconductors exhibit superior thermal conductivity compared to Silicon Carbide (SiC), enabling more efficient heat dissipation and higher power density in electronic devices. SiC devices benefit from a wide bandgap, which provides excellent thermal stability at elevated temperatures, but typically require advanced cooling solutions to manage heat effectively. Your choice between GaN and SiC should consider the thermal management requirements of your application, as GaN offers enhanced heat dissipation capabilities ideal for compact, high-frequency power electronics.
Switching Speed and Frequency Performance
GaN semiconductors exhibit significantly higher switching speeds and frequency performance compared to SiC, enabling devices to operate efficiently at frequencies above 1 MHz. The electron mobility of GaN is greater, resulting in lower on-resistance and reduced switching losses, which enhances overall power efficiency in high-frequency applications. SiC devices, while robust at high voltages, typically operate effectively up to a few hundred kilohertz, making GaN the preferred choice for ultra-high-frequency power electronics and RF amplifiers.
Cost Analysis and Market Availability
GaN semiconductors generally offer lower manufacturing costs due to simpler epitaxial growth and smaller chip sizes compared to SiC devices, which require more expensive substrates and complex fabrication processes. SiC components, while costlier upfront, are widely available in high-power automotive and industrial markets, benefiting from mature supply chains and extensive reliability data. Your choice depends on balancing GaN's cost-efficiency and rapid market growth against SiC's established market presence and robust performance in high-voltage applications.
Reliability and Lifespan Differences
Gallium Nitride (GaN) semiconductors exhibit higher electron mobility and thermal conductivity compared to Silicon Carbide (SiC), contributing to improved efficiency but shorter lifespan under high-voltage stress. SiC devices demonstrate superior reliability in high-temperature environments due to their robust crystal structure and higher breakdown voltage, resulting in longer operational lifespan for power electronics applications. Reliability metrics indicate SiC outperforms GaN for sustained high-power scenarios, while GaN excels in compact, high-frequency designs with moderate thermal demands.
Key Applications for GaN and SiC
GaN semiconductors excel in high-frequency and high-efficiency power electronics for applications such as 5G base stations, fast chargers, and radar systems due to their superior electron mobility and thermal conductivity. SiC devices are ideal for high-voltage and high-temperature environments, making them preferred in electric vehicles, industrial motor drives, and renewable energy inverters. Your choice between GaN and SiC depends on the specific power, frequency, and thermal requirements of each application.
Future Trends in Wide Bandgap Semiconductors
GaN and SiC semiconductors are driving significant advancements in power electronics due to their superior efficiency, thermal conductivity, and high voltage capabilities compared to traditional silicon. Future trends indicate GaN's dominance in high-frequency, low-voltage applications like RF amplifiers and fast chargers, while SiC is preferred for high-power, high-temperature environments such as electric vehicles and industrial motors. Ongoing research focuses on improving material quality, cost reduction, and integration with silicon technology to expand the adoption of these wide bandgap semiconductors across renewable energy, automotive, and telecommunications sectors.
Choosing Between GaN and SiC: Decision Factors
Choosing between Gallium Nitride (GaN) and Silicon Carbide (SiC) semiconductors depends on key factors such as power density, switching frequency, and thermal management requirements. GaN offers higher efficiency and faster switching speeds ideal for compact, high-frequency applications, while SiC excels in high-voltage, high-temperature environments due to its superior thermal conductivity and robustness. Your decision should align with specific application needs, balancing performance benefits against cost and system design complexity.

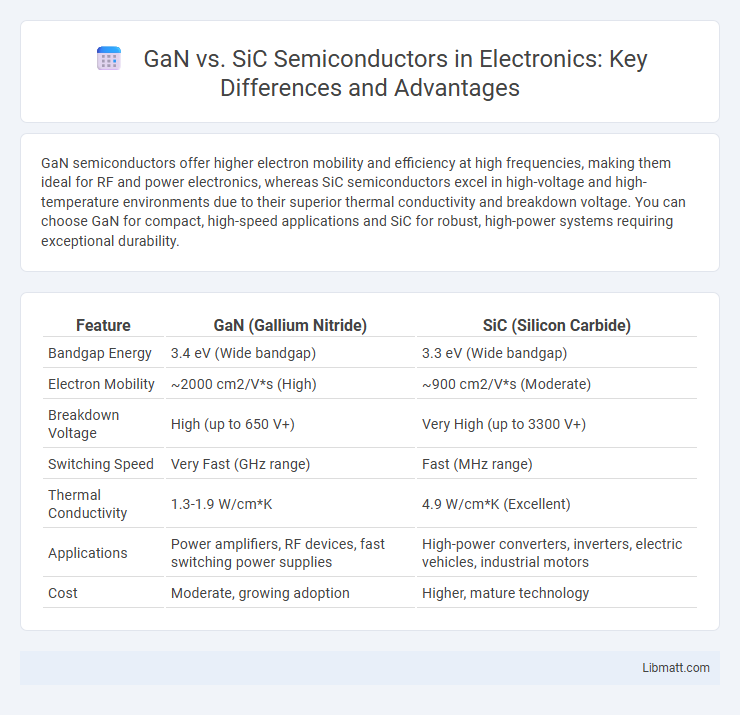

GaN vs SiC semiconductor Infographic
