libmatt.com Open drain outputs allow multiple devices to connect to a shared line by pulling it low, requiring an external pull-up resistor to define the high state. Push-pull outputs actively drive the line both high and low, offering faster switching speeds and stronger signal integrity for your digital circuits.
Table of Comparison
| Feature | Open Drain | Push-Pull |
|---|---|---|
| Output Type | Transistor with open collector or drain; requires external pull-up resistor | Complementary transistors (both high and low drive) |
| Voltage Level | Depends on external pull-up voltage | Directly drives output to supply or ground |
| Current Drive Capability | Limited by pull-up resistor and transistor | High current sinking and sourcing capability |
| Wiring | Allows multiple outputs wired together (wired-AND) | Single output line; no direct wired-AND |
| Power Consumption | Low when output is high due to open switch | Higher due to actively driven output states |
| Applications | Interfacing with different voltage levels, I2C bus, open-collector logic | General purpose digital output, fast switching |
Introduction to Output Drive Configurations
Open drain and push-pull output configurations define how a circuit drives its output signal and interfaces with other components. Open drain outputs can only sink current, requiring an external pull-up resistor to achieve a high state, making them ideal for wired-AND logic or bus communication like I2C. Push-pull outputs actively drive both high and low levels, offering faster switching speeds and stronger signal integrity for driving LEDs or microcontroller pins directly.
What is Open-Drain Output?
Open-drain output is a type of digital output commonly used in integrated circuits where the output transistor can only pull the line to ground or leave it floating, requiring an external pull-up resistor to achieve a high state. This configuration allows multiple open-drain outputs to be connected to a single line for wired-AND logic functionality, often used in I2C bus communication. The key advantage of open-drain outputs is their ability to interface with different voltage levels and implement simple and reliable multi-device signaling without bus contention.
What is Push-Pull Output?
Push-pull output is a type of digital signal output that actively drives the output voltage both high and low, using two transistors working in tandem to source or sink current. This configuration allows for faster switching speeds and sharper signal transitions compared to open drain outputs, which can only pull the line low and rely on external pull-up resistors. Push-pull outputs are commonly used in microcontroller GPIO pins and integrated circuits where precise and reliable signal control is essential.
Key Differences Between Open-Drain and Push-Pull
Open-drain outputs can only sink current, requiring an external pull-up resistor to drive the line high, making them ideal for wired-AND logic and multi-device communication such as I2C buses. Push-pull outputs actively drive both high and low states using complementary transistors, enabling faster switching speeds and stronger signal drive capability for applications demanding rapid signal transitions. The primary distinction lies in their electrical characteristics: open-drain offers high noise immunity and safe sharing of lines, whereas push-pull provides higher output current and faster edge transitions but cannot be safely wired together without additional circuitry.
Electrical Characteristics Comparison
Open drain output features a transistor that either pulls the line to ground or leaves it floating, requiring an external pull-up resistor to achieve a high voltage level, resulting in slower rise times and increased power consumption due to continuous current flow through the resistor. Push-pull output actively drives the line high or low using two transistors, providing faster switching speeds, reduced power dissipation, and improved noise immunity due to tightly controlled voltage levels. The choice between open drain and push-pull impacts signal integrity, speed, and power efficiency in digital communication and interfacing circuits.
Typical Applications for Open-Drain Outputs
Open-drain outputs are typically used in applications requiring wired-AND logic, such as I2C communication buses where multiple devices share a common line for data transfer. They are ideal for driving LED indicators or external transistors because the output transistor can only sink current, preventing damage from voltage conflicts. You benefit from open-drain outputs in systems needing flexible voltage levels and safe inter-device communication.
Typical Applications for Push-Pull Outputs
Push-pull outputs are commonly used in digital circuits where fast switching and low output impedance are critical, such as driving LEDs, relays, and digital logic inputs. This configuration provides both sourcing and sinking current capabilities, ensuring sharper signal transitions and better noise immunity in high-speed communication interfaces. Your designs benefit from push-pull outputs when precise control and quick response times are essential, especially in microcontroller GPIO pins and bus drivers.
Advantages and Limitations of Open-Drain
Open-drain outputs allow multiple devices to share a single communication line without conflict, providing a simple and effective solution for wired-AND logic and bus systems such as I2C. This configuration offers advantages like reduced power consumption during idle states and the ability to interface with different voltage levels. However, open-drain outputs require external pull-up resistors, which can limit signal speed and cause increased power dissipation during switching.
Advantages and Limitations of Push-Pull
Push-pull output drivers offer fast switching speeds and low output impedance, making them ideal for driving loads with precise voltage levels and reduced noise. They provide strong drive capability in both high and low states, enabling efficient signal transmission and minimizing power dissipation. However, push-pull outputs can be susceptible to damage from short circuits and require careful design to avoid shoot-through current during switching transitions.
Choosing Between Open-Drain and Push-Pull Outputs
Choosing between open-drain and push-pull outputs depends on application requirements such as voltage level compatibility and bus configuration. Open-drain outputs are ideal for wired-AND logic and allow multiple devices to share a common line with an external pull-up resistor. Push-pull outputs provide stronger drive capabilities for faster signal transitions and are suitable for driving loads directly without additional components.

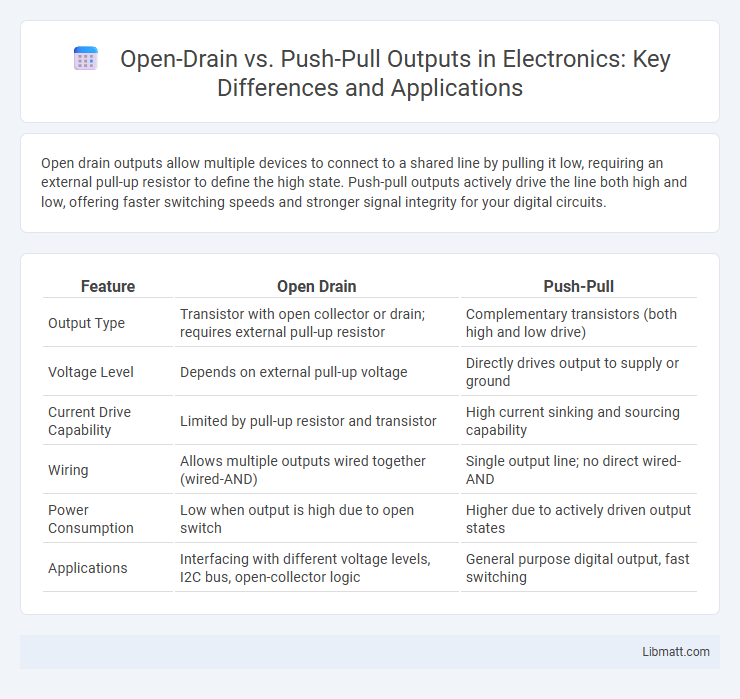

Open drain vs Push-pull output Infographic
