libmatt.com Active filters use powered components like amplifiers to boost signal strength and offer precise control over frequency response, while passive filters rely solely on passive components such as resistors, capacitors, and inductors, providing signal attenuation without amplification. Your choice depends on the need for gain, power consumption, and circuit complexity, with active filters typically preferred for low-frequency applications and passive filters for simplicity and high-frequency use.
Table of Comparison
| Feature | Active Filter | Passive Filter |
|---|---|---|
| Components | Uses operational amplifiers, resistors, and capacitors | Uses only resistors, capacitors, and inductors |
| Power Requirement | Requires external power supply | Does not require external power |
| Gain | Can provide gain (amplification) | Always attenuation (loss of signal strength) |
| Frequency Range | Effective in low to mid frequency ranges | Suitable for high-frequency applications |
| Size and Complexity | More compact, complex due to active components | Bulkier, simpler design |
| Impedance | High input impedance, low output impedance | Generally lower input impedance |
| Linearity and Noise | Better linearity, moderately higher noise | Less linear, lower noise levels |
| Cost | Higher cost due to active elements | Lower cost, passive components only |
Introduction to Active and Passive Filters
Active filters use amplifying components like operational amplifiers along with resistors and capacitors to enhance signal strength and achieve precise frequency response, while passive filters rely solely on passive components such as resistors, capacitors, and inductors without amplification. Active filters offer benefits like gain, improved performance in low-frequency applications, and compact design, whereas passive filters are simpler, require no power supply, and are often more reliable at high frequencies. Your choice between active and passive filters depends on factors like desired frequency range, signal amplification needs, and circuit complexity.
Definition and Basic Concepts
Active filters use amplifying components such as operational amplifiers, transistors, or other active devices to enhance signal processing, enabling gain and improved performance in frequency selection. Passive filters consist solely of passive components like resistors, inductors, and capacitors, relying on their inherent properties to attenuate or pass specific frequency ranges without amplification. The fundamental difference lies in active filters requiring a power supply and offering gain, while passive filters operate without power but may introduce signal loss.
Key Components: Active vs Passive Elements
Active filters rely on components such as operational amplifiers, transistors, resistors, and capacitors, enabling signal amplification and precise control over frequency response. Passive filters consist solely of passive elements like resistors, inductors, and capacitors, which cannot provide gain and often introduce signal attenuation. The inclusion of active components allows active filters to achieve sharper cutoff frequencies and greater flexibility compared to the purely passive elements found in passive filters.
Types of Active and Passive Filters
Active filters include types such as low-pass, high-pass, band-pass, and band-stop filters that use operational amplifiers, transistors, or other active components to amplify and filter signals. Passive filters consist of resistors, capacitors, and inductors and can be categorized into RC (resistor-capacitor), RL (resistor-inductor), and RLC (resistor-inductor-capacitor) filters, which shape signal frequency without amplification. Your choice between active and passive filter types depends on factors like desired gain, frequency range, and power consumption.
Frequency Response Comparison
Active filters use amplifying components such as operational amplifiers, enabling precise control of frequency response with gain and sharper cutoff slopes, achieving higher Q factors than passive filters. Passive filters rely solely on resistors, inductors, and capacitors, resulting in frequency responses limited by component values and inherent losses, causing gentler roll-offs and no signal amplification. The active filter's superior frequency response makes it ideal for applications requiring high selectivity and minimal signal attenuation.
Advantages of Active Filters
Active filters offer significant advantages such as amplification capability, which allows them to boost signal strength without the need for additional power sources. They provide precise frequency control and better performance in terms of gain and stability compared to passive filters, which rely solely on resistors, capacitors, and inductors. Your electronic circuits benefit from active filters' smaller size, lower weight, and improved efficiency in filtering low-frequency signals.
Advantages of Passive Filters
Passive filters offer advantages such as simplicity in design, lower cost, and no need for external power sources, making them highly reliable in various signal conditioning applications. Their components, typically resistors, capacitors, and inductors, provide inherent stability and durability over a wide frequency range. These filters perform well in high-power environments and do not introduce noise or distortion, which is crucial for maintaining signal integrity.
Limitations of Each Filter Type
Active filters require external power sources and may introduce noise or distortion due to their amplifying components, limiting their effectiveness in high-frequency applications. Passive filters, composed solely of resistors, capacitors, and inductors, are inherently limited by component tolerances and cannot provide signal gain, resulting in higher insertion loss and less precise filtering. Your choice depends on the application's frequency range, power constraints, and desired signal quality, as each filter type has inherent trade-offs in performance and complexity.
Applications in Modern Electronics
Active filters, utilizing operational amplifiers, resistors, and capacitors, are widely employed in audio processing, communication systems, and signal conditioning due to their ability to amplify signals and provide precise frequency response control. Passive filters, composed solely of resistors, inductors, and capacitors, are commonly used in RF circuits, power supplies, and simple noise reduction where signal amplification is unnecessary and power efficiency is critical. Modern electronics favor active filters in applications requiring gain and tunability, while passive filters excel in high-frequency circuits and environments demanding minimal power consumption.
Choosing Between Active and Passive Filters
Choosing between active and passive filters depends on factors like signal frequency, power requirements, and desired component size. Active filters use operational amplifiers to provide gain and precise control, making them ideal for low-frequency applications and compact circuit designs. Passive filters, built solely with resistors, capacitors, and inductors, operate without power supply but are bulkier and less effective at low frequencies, suitable for high-frequency or power-intensive applications.

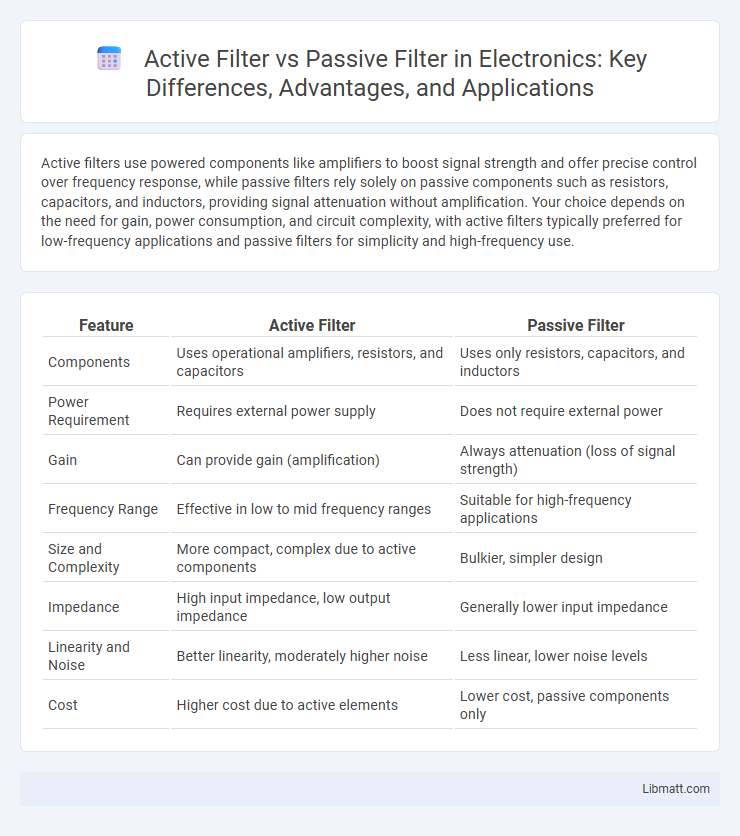

Active filter vs Passive filter Infographic
