libmatt.com ESD (Electrostatic Discharge) refers to the sudden flow of static electricity between two objects, which can damage sensitive electronic components, while EFT (Electrical Fast Transient) involves a series of rapid, high-frequency electrical pulses typically caused by switching devices or lightning strikes. Protecting Your electronic systems requires understanding the distinct impact of ESD and EFT to apply appropriate surge protection and grounding techniques.
Table of Comparison
| Aspect | ESD (Electrostatic Discharge) | EFT (Electrical Fast Transient) |
|---|---|---|
| Definition | Sudden transfer of static electricity between two objects | Rapid bursts of high-frequency electrical noise on power or signal lines |
| Cause | Contact or proximity of charged objects | Switching of inductive loads, relay contact bounce, or lightning |
| Frequency Range | Up to a few MHz | Up to tens of MHz |
| Pulse Duration | Nanoseconds to microseconds | Nanoseconds (5-50 ns), repetitive pulses |
| Energy Level | High voltage, low current | Lower voltage, high current spikes |
| Target | Static sensitive semiconductor components | Power supply and signal lines in electronic equipment |
| Standard Tests | IEC 61000-4-2 | IEC 61000-4-4 |
| Protection Methods | ESD mats, wrist straps, grounding, shielding | EMI filters, transient voltage suppressors, proper cabling |
| Impact | Component damage or data corruption | Interference, malfunction, or data errors |
Understanding ESD: Definition and Causes
Electrostatic Discharge (ESD) occurs when a sudden flow of electricity transfers between two electrically charged objects, often caused by friction, contact, or induction. Common sources include human touch, synthetic materials, and environmental factors such as low humidity, which increase static buildup. Understanding ESD is essential for protecting sensitive electronic components and maintaining device reliability.
What is EFT? An Overview
Electrostatic discharge (ESD) refers to the sudden flow of electricity between two charged objects, while electrical fast transients (EFT) are rapid bursts of high-frequency electrical pulses typically caused by switching actions in electrical circuits. EFT primarily occurs due to inductive switching or relay contact bounce, generating short, repetitive pulses that can disrupt sensitive electronic equipment. Understanding EFT is crucial for designing electromagnetic compatibility (EMC) measures to protect devices from transient disturbances in power and signal lines.
Key Differences Between ESD and EFT
Electrostatic Discharge (ESD) involves the sudden flow of static electricity between two objects, often causing damage to sensitive electronic components, whereas Electrical Fast Transient (EFT) refers to rapid, high-frequency bursts of electrical energy typically induced by switching events in power lines. ESD events are generally characterized by high voltage and low current over a very short duration, while EFT pulses consist of repetitive fast transients with lower voltage but occur in bursts. Protection against ESD focuses on controlling static buildup and discharge paths, whereas EFT protection targets filtering and shielding to mitigate fast transient noise on power and signal lines.
How ESD and EFT Affect Electronic Systems
Electrostatic Discharge (ESD) causes sudden transfer of static electricity that can damage sensitive electronic components, leading to malfunctions or permanent failure. Electrical Fast Transients (EFT) generate rapid bursts of high-frequency noise, disrupting signal integrity and causing erratic behavior in electronic systems. Understanding how your device responds to ESD and EFT is crucial for implementing effective protection measures to maintain reliable operation.
Real-World Examples of ESD and EFT Incidents
Electrostatic Discharge (ESD) incidents often occur when you touch sensitive electronic components without proper grounding, causing immediate device damage or intermittent failures in smartphones and computer chips. Electrical Fast Transients (EFT) typically arise from switching actions in power lines or lightning strikes, leading to voltage spikes that disrupt industrial control systems and communication networks. Understanding these real-world examples helps in designing effective protective measures to safeguard your electronic equipment from such transient electrical events.
Testing Standards for ESD and EFT
Testing standards for Electrostatic Discharge (ESD) primarily follow the ANSI/ESD STM5.1 and IEC 61000-4-2 protocols, which define the voltage levels and waveform characteristics to simulate real-world static discharge events. Electrical Fast Transient (EFT) testing adheres to IEC 61000-4-4 standards, specifying the pulse duration, rise time, and repetition rate to evaluate immunity against rapid electrical bursts typically caused by switching transients. Your compliance with these distinct standards ensures reliable protection of electronic devices from both static discharges and fast transient disturbances.
Protection Methods Against ESD
Protection methods against Electrostatic Discharge (ESD) include the use of grounding techniques, such as wrist straps, conductive mats, and ionizers that neutralize static charge buildup on sensitive electronic components. Electrostatic protection devices like transient voltage suppressors (TVS) and metal oxide varistors (MOV) are commonly integrated into circuits to clamp voltage spikes induced by Electrostatic Fast Transients (EFT). Controlled PCB layout, including proper grounding and shielding, enhances immunity against both ESD and EFT events by minimizing coupling and ensuring rapid dissipation of transient currents.
Effective Strategies to Mitigate EFT
Effective strategies to mitigate Electrical Fast Transients (EFT) include implementing robust shielding techniques, using transient voltage suppressors (TVS), and installing proper grounding and bonding systems to prevent high-frequency noise coupling. Utilizing galvanic isolation and input/output filtering components such as ferrite beads and common mode chokes can also significantly reduce EFT susceptibility in electronic circuits. Proper PCB layout design with short return paths and separation of sensitive signal lines further enhances EFT protection by minimizing the impact of fast transient disruptions.
Designing Circuits for ESD and EFT Immunity
Designing circuits for ESD (Electrostatic Discharge) immunity involves integrating robust protection components like transient voltage suppression diodes and proper grounding techniques to prevent damage from sudden high-voltage spikes. For EFT (Electrical Fast Transient) immunity, circuit designers prioritize filtering strategies, such as low-pass filters and ferrite beads, alongside careful PCB layout to minimize noise coupling and rapid transient interference. Combining these approaches ensures enhanced device reliability in environments prone to both static discharge and fast, repetitive electrical transients.
Future Trends in ESD and EFT Management
Future trends in ESD and EFT management emphasize advanced materials and proactive protection technologies to mitigate risks in increasingly sensitive electronic devices. Integration of AI-driven monitoring systems enhances real-time detection and prevention of electrostatic and electromagnetic disturbances. Your organization can benefit from adopting adaptive solutions that anticipate and respond to evolving threats in semiconductor and electronic manufacturing environments.

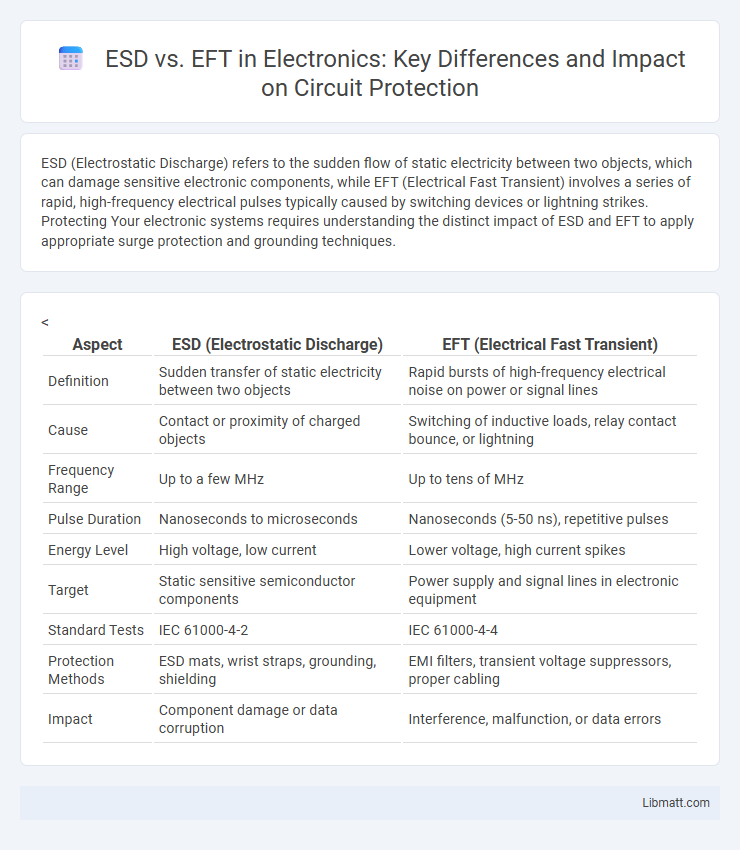

ESD vs EFT Infographic
