libmatt.com Kelvin Sensing enhances measurement accuracy by using separate pairs of wires for current and voltage, eliminating lead resistance effects in precise low-resistance measurements. Your choice between Kelvin Sensing and Kelvin Connection depends on the required precision, as Kelvin Connection refers more broadly to using the four-wire measurement principle for improved accuracy.
Table of Comparison
| Feature | Kelvin Sensing | Kelvin Connection |
|---|---|---|
| Definition | Technique to measure voltage with separate sensing leads for accuracy. | Physical wiring method using separate force and sense leads to eliminate contact resistance errors. |
| Purpose | Accurate voltage measurement in low-resistance circuits. | Improve measurement precision by isolating voltage drops. |
| Typical Use | High-precision electronic instrumentation and material testing. | Four-wire connections in resistance measurements and electrical testing. |
| Advantage | Eliminates lead and contact resistance from voltage measurements. | Separates current flow and voltage sensing paths for error-free readings. |
| Implementation | Uses sensing wires connected directly across the measured component. | Connects force wires to supply current; sense wires measure voltage independently. |
| Common Applications | Kelvin probe, precision digital multimeters, low-resistance measurement. | Four-wire resistance measurement, battery testing, precision sensors. |
Introduction to Kelvin Sensing and Kelvin Connection
Kelvin Sensing and Kelvin Connection both refer to techniques used in precision electrical measurements to eliminate errors caused by lead and contact resistances. Kelvin Sensing involves using separate pairs of current-carrying and voltage-sensing leads to measure voltage drops accurately, enhancing measurement accuracy in low-resistance components. Your choice between the two depends on the measurement setup, with Kelvin Connection specifically referring to the wiring method that enables the Kelvin Sensing technique.
Understanding the Basics of Four-Wire Measurement
Kelvin Sensing and Kelvin Connection both utilize a four-wire measurement technique to enhance measurement accuracy by eliminating lead and contact resistance effects. This method employs separate pairs of current-carrying and voltage-sensing wires, allowing precise voltage measurement across a component without the influence of voltage drops in the current leads. Understanding this fundamental distinction is crucial in applications requiring high-precision resistance measurements, such as in low-ohm resistors and sensitive electronic components.
What is Kelvin Sensing?
Kelvin Sensing is a precise method used to measure voltage by separating the voltage measurement circuit from the current-carrying conductors, minimizing measurement errors caused by lead resistance. This technique employs four-wire connections, where two wires supply current and the other two sense the voltage directly at the load, ensuring highly accurate readings in low-resistance and high-precision applications. Kelvin Sensing is essential in fields such as battery testing, precision power supplies, and semiconductor device testing.
What is a Kelvin Connection?
A Kelvin connection is a four-wire measurement technique used to accurately determine voltage by separating the current-carrying and voltage-sensing paths, eliminating the effect of lead resistance. This method ensures precise readings in low-resistance components or sensors, such as strain gauges and RTDs, by minimizing errors caused by voltage drops along the test leads. Kelvin sensing is critical in applications requiring high-accuracy voltage measurement under load conditions.
Key Differences Between Kelvin Sensing and Kelvin Connection
Kelvin Sensing and Kelvin Connection are crucial techniques in precision electrical measurements, primarily differing in their application and design focus. Kelvin Sensing involves separate pairs of current and voltage leads to minimize measurement errors caused by lead and contact resistance, ensuring highly accurate voltage readings. Kelvin Connection refers to the four-wire setup utilized to implement Kelvin Sensing, providing an essential method for achieving precise resistance and voltage measurements in sensitive electronic testing scenarios.
Applications of Kelvin Sensing in Precision Measurements
Kelvin Sensing enables precise measurement of electrical resistance by eliminating the effect of lead and contact resistance, making it essential in precision applications such as low-resistance measurements in semiconductor devices and superconductors. It is widely used in four-wire sensing setups for accurate current and voltage readings in battery testing, strain gauge measurements, and sensor calibration. The Kelvin Connection method enhances measurement accuracy in high-precision instrumentation by ensuring that the voltage sensing points are independent of the current paths.
Applications of Kelvin Connection in Electrical Testing
Kelvin Connection is widely applied in electrical testing to accurately measure low resistances by eliminating lead and contact resistance errors. This method is crucial in evaluating components such as resistors, connectors, and PCB traces in high-precision electronic devices. You benefit from improved measurement reliability and precision when using Kelvin Connection in quality control and troubleshooting processes.
Benefits and Limitations of Kelvin Sensing vs Kelvin Connection
Kelvin Sensing provides precise voltage measurements by using separate sense leads to eliminate the effect of lead and contact resistances, ensuring accurate readings in low-resistance or high-current applications. Kelvin Connection, on the other hand, involves a four-wire configuration that enables both current and voltage measurement paths to be isolated, enhancing the accuracy of resistance measurements but requiring more complex wiring and setup. Understanding the benefits of reduced measurement error with Kelvin Sensing versus the improved stability and reliability of Kelvin Connection helps you choose the right method for your specific electrical testing needs.
Common Misconceptions About Kelvin Sensing and Connection
Common misconceptions about Kelvin sensing and Kelvin connection often confuse the two as interchangeable terms, though Kelvin sensing specifically refers to the method of using separate sense leads to measure voltage precisely while Kelvin connection pertains to the physical wiring configuration ensuring accurate current and voltage paths. Many assume Kelvin sensing automatically eliminates all measurement errors, but it primarily minimizes errors due to lead resistance and contact resistance rather than environmental or instrument noise. It is crucial to understand that proper Kelvin connection setup is necessary for effective Kelvin sensing, as poor wiring can undermine the technique's accuracy advantages.
Choosing the Right Method: Factors to Consider
Choosing between Kelvin Sensing and Kelvin Connection depends on the precision required in voltage measurement and the complexity of the circuit. Kelvin Sensing uses separate sensing and current-carrying paths to eliminate lead resistance errors, making it ideal for high-accuracy applications such as low-resistance measurements. Kelvin Connection integrates the sensing and current leads but may introduce measurement errors in circuits with significant lead resistance or noise, so it suits less critical or simpler setups.

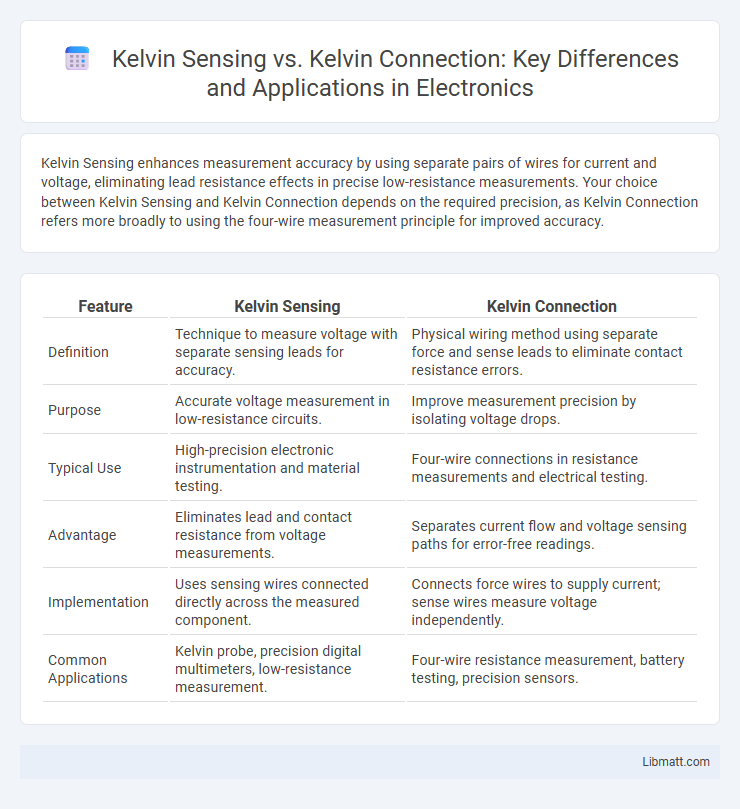

Kelvin Sensing vs Kelvin Connection Infographic
