libmatt.com Direct Current Link offers efficient long-distance power transmission with lower losses and better stability compared to High Voltage Alternating Current Link, which is more suitable for shorter distances and easier integration with existing AC grids. Your choice depends on the application's distance, cost constraints, and system compatibility requirements.
Table of Comparison
| Feature | Direct Current Link (DC Link) | High Voltage Alternating Current Link (HVAC Link) |
|---|---|---|
| Transmission Type | Direct Current (DC) | Alternating Current (AC) |
| Typical Voltage Levels | Up to +-800 kV (+-1000 kV for latest systems) | Up to 765 kV |
| Line Losses | Lower losses over long distances (~3% per 1000 km) | Higher losses due to reactance (~7-10% per 1000 km) |
| Transmission Distance Efficiency | More efficient for long distances above 600 km | Better suited for short to medium distances below 600 km |
| Cost | Higher converter station cost, lower line cost | Lower substation cost, higher line cost |
| Control and Stability | Precise power flow control, enhances grid stability | Less flexible control, susceptible to stability issues |
| Grid Interconnection | Ideal for asynchronous grid coupling | Requires synchronized grids |
| Environmental Impact | Smaller right-of-way, lower electromagnetic field | Wider right-of-way, stronger electromagnetic fields |
| Applications | Intercontinental links, offshore wind farms, long-distance bulk power transfer | Regional transmission, urban distribution, local power systems |
Overview of Power Transmission Technologies
Direct Current (DC) link technology enables efficient long-distance power transmission by minimizing line losses and allowing precise voltage control, making it ideal for interconnecting asynchronous grids. High Voltage Alternating Current (HVAC) link systems dominate traditional power grids due to simpler substation equipment and easier fault detection despite higher reactive power losses over long distances. Advances in power electronics and converter technology have significantly enhanced the feasibility and performance of DC links, whereas HVAC remains prevalent for regional and local grid distribution due to its compatibility with existing infrastructure.
Defining Direct Current (DC) Links
Direct Current (DC) Links provide a stable and efficient way to transmit electrical power by maintaining a constant voltage level, reducing losses over long distances. Unlike High Voltage Alternating Current (HVAC) Links that rely on alternating current and experience reactive power issues, DC Links eliminate phase synchronization problems and enable precise control of power flow. Your choice of a DC Link can improve grid reliability and integration of renewable energy sources due to its enhanced efficiency and controllability.
Understanding High Voltage Alternating Current (HVAC) Links
High Voltage Alternating Current (HVAC) links transmit electrical power using alternating current at voltages typically above 100 kV, enabling efficient long-distance energy transfer with reduced losses. Compared to Direct Current (DC) links, HVAC systems benefit from easier voltage transformation via transformers, which simplifies grid integration and fault isolation. Your choice between DC and HVAC links depends on factors like distance, infrastructure costs, and system stability requirements.
Key Differences Between DC and HVAC Links
Direct Current (DC) links provide stable and constant voltage suitable for long-distance power transmission with minimal losses and efficient control of power flow. High Voltage Alternating Current (HVAC) links, on the other hand, are widely used for regional and local distribution due to their ability to easily transform voltage levels and compatibility with existing AC grid infrastructure. Key differences include the complexity of converters in DC systems versus simpler transformers in HVAC, as well as DC's superiority in reducing reactive power issues and transmission losses over long distances.
Efficiency Comparison: DC Link vs HVAC Link
Direct Current (DC) links generally offer higher efficiency than High Voltage Alternating Current (HVAC) links due to reduced reactive power losses and lower line impedance. DC links eliminate skin effect and capacitive charging currents, which are significant loss factors in HVAC systems over long distances. Consequently, DC transmission provides improved energy transfer efficiency, especially in bulk power and long-distance applications.
Infrastructure and Installation Requirements
Direct Current (DC) link infrastructure demands specialized converter stations at each end, requiring precise control systems and advanced power electronics, whereas High Voltage Alternating Current (HVAC) links primarily involve extensive transformer installations and larger right-of-way corridors. HVAC installations benefit from mature technology with well-established high-voltage equipment but may need more substantial physical land and complex insulation compared to the more compact and efficient DC link infrastructure. Your choice between DC and HVAC links should consider installation costs, space availability, and maintenance complexity inherent to each system's infrastructure.
Cost Analysis: DC vs HVAC Power Transmission
Direct Current (DC) links typically offer lower transmission losses and reduced infrastructure costs over long distances compared to High Voltage Alternating Current (HVAC) links, making DC more cost-effective for bulk power transfer. HVAC systems involve higher expenses due to the need for reactive power compensation, larger towers, and more complex insulation, increasing overall installation and maintenance costs. Your choice depends on distance and capacity requirements, with DC favored for long-haul, high-capacity transmission and HVAC preferred for shorter distances and grid interconnections.
Application Scenarios: When to Choose DC or HVAC
Direct Current (DC) links are preferred for long-distance and underwater power transmission due to lower losses and better voltage control in high-voltage direct current (HVDC) systems. High Voltage Alternating Current (HVAC) links are optimal for shorter distances and where multiple connection points are needed because of easier voltage transformation and compatibility with existing AC infrastructure. Industrial applications and urban grid interconnections often favor HVAC, while intercontinental or offshore wind power integration typically requires DC links for efficiency and stability.
Challenges and Limitations of Each Technology
Direct Current (DC) link technology faces challenges such as complex insulation requirements, converter station costs, and difficulty in interrupting fault currents promptly. High Voltage Alternating Current (HVAC) links encounter limitations like reactive power management, line losses due to skin effect, and the complexity of synchronizing multiple AC sources. Both technologies need optimized solutions for efficient long-distance power transmission and grid stability under varying load conditions.
Future Trends in Power Transmission Systems
Direct Current (DC) Link technology is increasingly favored in future power transmission systems due to its efficiency over long distances, reduced electrical losses, and ability to integrate renewable energy sources seamlessly. High Voltage Alternating Current (HVAC) Links remain essential for regional power distribution but face limitations in long-distance, high-capacity scenarios compared to High Voltage Direct Current (HVDC) solutions. Your energy infrastructure will benefit from the ongoing trend towards hybrid systems combining DC and AC technologies, enhancing grid stability and enabling large-scale renewable integration.

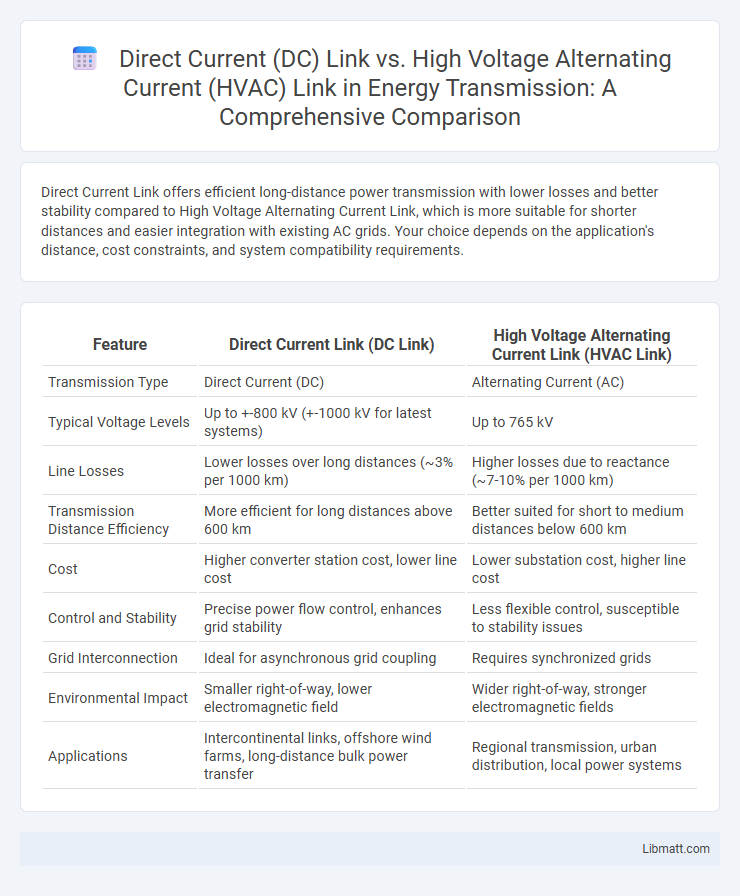

Direct Current Link vs High Voltage Alternating Current Link Infographic
