libmatt.com A series circuit has components connected end-to-end, so the current flows through each component sequentially, causing the total resistance to increase and the voltage to drop across each device. In a parallel circuit, components are connected across the same voltage source, allowing each device to receive the full voltage while the total current is divided among the branches, which can help maintain your circuit's efficiency and functionality.
Table of Comparison
| Feature | Series Circuit | Parallel Circuit |
|---|---|---|
| Current Flow | Same current through all components | Current splits across branches |
| Voltage Distribution | Voltage divides across components | Voltage is the same across all components |
| Total Resistance | Sum of all resistances (R_total = R1 + R2 + ...) | Inverse sum of reciprocals (1/R_total = 1/R1 + 1/R2 + ...) |
| Effect of Component Failure | Circuit breaks, all components stop working | Other branches continue to work |
| Power Distribution | Power varies per component (P = I2R) | Power depends on individual branch voltage and resistance |
| Common Uses | Simple circuits, series lights, batteries in series | Household wiring, parallel LEDs, power distribution |
Introduction to Series and Parallel Circuits
Series circuits consist of components connected end-to-end, forming a single path for current flow, which causes the same current to pass through each component but divides voltage among them. Parallel circuits have multiple branches with components connected across the same voltage source, allowing each branch to receive full voltage while the total current splits among the branches. Understanding these configurations helps you design efficient electrical systems by choosing the appropriate circuit type for your device's power and performance needs.
Basic Definitions and Key Concepts
A series circuit consists of components connected end-to-end, forming a single path for current flow, causing the same current to pass through each element with voltage dividing among them. In a parallel circuit, components are connected across common points, creating multiple paths for current, which results in the same voltage across each component while the total current is the sum of individual branch currents. Key concepts include the impact on total resistance, where series circuits have additive resistance and parallel circuits have reduced total resistance due to reciprocal summation.
Construction of Series Circuits
Series circuits feature components connected end-to-end in a single path, allowing electric current to flow through each component sequentially. The construction involves wiring components so that the output of one component becomes the input of the next, ensuring current is constant throughout the circuit. Understanding this setup helps you design circuits where voltage drops across each component add up to the total voltage supplied.
Structure of Parallel Circuits
Parallel circuits feature multiple branches, each providing separate pathways for current to flow. The voltage across all components in a parallel circuit remains consistent, while the total current divides proportionally based on the resistance of each branch. Understanding the structure of parallel circuits helps you design systems with reliable voltage and independent functionality for each component.
Voltage and Current Distribution
In a series circuit, the current remains constant throughout all components while the voltage divides proportionally based on each component's resistance. In contrast, a parallel circuit maintains the same voltage across all branches, with the total current splitting according to each branch's resistance. Understanding these differences can help you design efficient electrical systems tailored to specific voltage and current requirements.
Advantages of Series Circuits
Series circuits offer the advantage of simplicity in design and ease of implementation, making them ideal for basic electrical applications. The current remains constant throughout all components, enabling straightforward calculation and troubleshooting. This circuit type also requires fewer wires, reducing material costs and minimizing potential points of failure.
Benefits of Parallel Circuits
Parallel circuits offer the significant advantage of independent operation of components, allowing each device to function without affecting others. They provide consistent voltage across all branches, ensuring stable performance for each connected load. This design enhances safety and reliability, as a failure in one branch does not interrupt the entire circuit.
Common Applications in Real Life
Series circuits are commonly used in applications such as Christmas lights and old-fashioned flashlights, where the current flows through one path and a single component failure affects the entire circuit. Parallel circuits find frequent use in household electrical wiring and automotive systems, allowing devices to operate independently and ensuring consistent voltage across all components. The choice between series and parallel circuits depends on the desired control, reliability, and voltage distribution in practical electrical systems.
Energy Efficiency and Power Loss
Series circuits typically experience higher power loss due to the cumulative resistance of each component, reducing overall energy efficiency as current flows through all devices sequentially. Parallel circuits allow current to distribute among multiple paths, minimizing energy loss and enhancing efficiency by maintaining voltage across each branch. Your choice between series and parallel configurations affects energy consumption and power dissipation, making parallel circuits generally more efficient for systems requiring consistent voltage and reduced loss.
Summary Table: Series vs Parallel Circuits
Series circuits have components connected end-to-end, resulting in a single path for current flow where the total resistance equals the sum of individual resistances, and voltage divides across components. Parallel circuits feature components connected across common nodes, providing multiple current paths with total resistance calculated using the reciprocal sum of individual resistances, and voltage remaining constant across each branch. Current in series circuits is uniform, while in parallel circuits, it divides according to branch resistances.

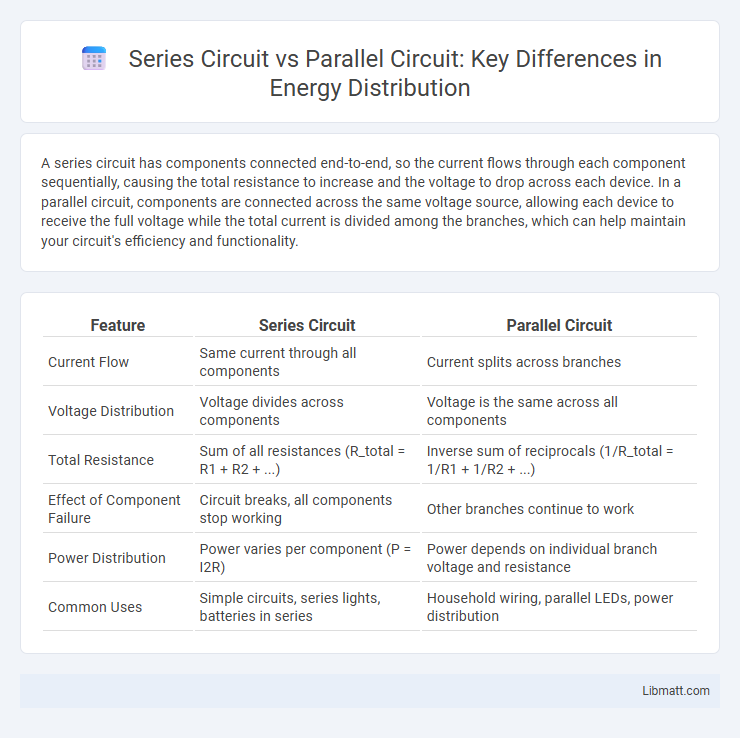

Series circuit vs Parallel circuit Infographic
