libmatt.com Low-E glass features a microscopically thin coating that reduces infrared and ultraviolet light without compromising visible light, enhancing energy efficiency and indoor comfort. Heat reflective glass uses a metallic coating to reflect solar heat away, making it ideal for reducing cooling costs in hot climates while maintaining a stylish appearance.
Table of Comparison
| Feature | Low-E Glass | Heat Reflective Glass |
|---|---|---|
| Definition | Glass coated with a thin metallic layer to minimize ultraviolet and infrared light without compromising visible light transmission. | Glass treated with a reflective coating to reflect a significant portion of solar heat and reduce glare. |
| Solar Heat Gain Coefficient (SHGC) | Typically 0.2 to 0.4, allowing moderate heat transmission. | Lower SHGC, often below 0.25, blocking more solar heat. |
| Visible Light Transmission | High, usually between 70% to 85%. | Moderate to high, but slightly lower than Low-E due to reflective coating. |
| U-Value (Insulation) | Low U-Value (~1.0 W/m2K), excellent thermal insulation. | Moderate U-Value, less insulation compared to Low-E glass. |
| Primary Use | Energy efficiency in cold and temperate climates by reducing heat loss and gain. | Reducing cooling loads in hot climates by reflecting solar heat. |
| Cost | Higher initial cost due to advanced coatings. | Generally lower cost, simpler coating technology. |
| Durability | Coatings are durable but require careful handling to avoid damage. | Reflective coatings are robust but can degrade under harsh conditions. |
Introduction to Low-E Glass and Heat Reflective Glass
Low-E glass features a microscopically thin coating that selectively blocks infrared and ultraviolet light to enhance energy efficiency while maintaining natural daylight. Heat reflective glass incorporates a metallic coating designed to reflect solar heat, reducing cooling loads and glare inside buildings. Both technologies significantly improve thermal comfort and energy savings in residential and commercial glazing applications.
How Low-E Glass Works
Low-E glass works by incorporating a microscopically thin, transparent coating that reflects infrared heat while allowing visible light to pass through, significantly improving energy efficiency in buildings. This coating reduces heat transfer by minimizing solar heat gain in summer and heat loss in winter, maintaining indoor temperature stability. The advanced layering technology enhances thermal insulation without compromising natural daylight, making Low-E glass a superior choice for climate control compared to traditional heat reflective glass.
Heat Reflective Glass: Definition and Functionality
Heat reflective glass is a type of glazing designed to reduce solar heat gain by reflecting a significant portion of the sun's infrared radiation, thereby maintaining cooler indoor temperatures. It uses a special metallic coating that bounces heat away while allowing visible light to pass through, enhancing energy efficiency in buildings. Your choice of heat reflective glass can significantly lower cooling costs and improve comfort in warm climates.
Key Differences Between Low-E and Heat Reflective Glass
Low-E glass features a microscopically thin coating that selectively blocks infrared and ultraviolet light, improving energy efficiency by retaining heat during winter and reflecting solar heat in summer. Heat reflective glass primarily uses a tinted or reflective coating to reduce solar heat gain by reflecting sunlight, which helps keep interiors cooler but may reduce natural light. Your choice depends on whether you prioritize overall energy savings and light transmission with Low-E or enhanced solar heat reduction with heat reflective glass.
Energy Efficiency Comparison
Low-E glass features a microscopically thin metallic coating that significantly reduces infrared and ultraviolet light transmission, boosting energy efficiency by minimizing heat loss in winter and heat gain in summer. Heat reflective glass employs a reflective coating that bounces solar radiation away, primarily reducing cooling costs in hot climates but may trap heat during colder months. Energy efficiency performance depends on geographic location and specific building needs, with Low-E glass offering balanced year-round thermal insulation, while heat reflective glass excels at solar heat rejection.
Impact on Indoor Comfort and Temperature Control
Low-E glass enhances indoor comfort by reflecting infrared heat back inside, maintaining warmth during winter while minimizing heat gain in summer. Heat reflective glass reduces solar heat transmission by reflecting a significant portion of sunlight, keeping interiors cooler in hot climates. Both options improve temperature control, but Low-E glass offers better year-round energy efficiency by balancing heat retention and rejection.
Cost Analysis: Installation and Long-Term Savings
Low-E glass generally has a higher upfront installation cost compared to heat reflective glass due to its advanced coating technology designed to reduce heat transfer and improve energy efficiency. Over time, Low-E glass offers greater long-term savings on heating and cooling bills because it effectively minimizes heat loss in winter and heat gain in summer. Heat reflective glass provides moderate initial savings but typically results in lower energy efficiency, leading to less substantial reductions in utility expenses over the lifespan of the product.
Suitability for Different Climates and Building Types
Low-E glass is ideal for cold and temperate climates, as it minimizes heat loss while allowing natural light, making it suitable for residential and commercial buildings seeking energy efficiency. Heat reflective glass performs best in hot climates by reflecting solar radiation to reduce cooling loads, often used in high-rise office buildings and sun-exposed structures. Your choice depends on the climate and building type, optimizing indoor comfort and energy savings.
Environmental Benefits and Sustainability
Low-E glass significantly reduces energy consumption by minimizing heat transfer, helping to lower carbon footprints and utility bills, which supports your commitment to sustainability. Heat reflective glass blocks solar radiation effectively, reducing cooling loads and enhancing indoor comfort while decreasing reliance on air conditioning systems. Both options contribute to environmental benefits by improving building energy efficiency and promoting long-term ecological responsibility in construction.
Choosing the Right Glass for Your Project
Low-E glass features a microscopically thin metallic coating that reflects infrared heat while allowing visible light, making it ideal for energy-efficient windows in both residential and commercial buildings. Heat reflective glass typically uses a tinted or reflective coating to reduce solar heat gain by reflecting a broader spectrum of sunlight, suited for climates with intense sun exposure. Selecting the right glass depends on project-specific factors like insulation needs, solar control requirements, aesthetic preferences, and budget constraints to optimize energy savings and comfort.

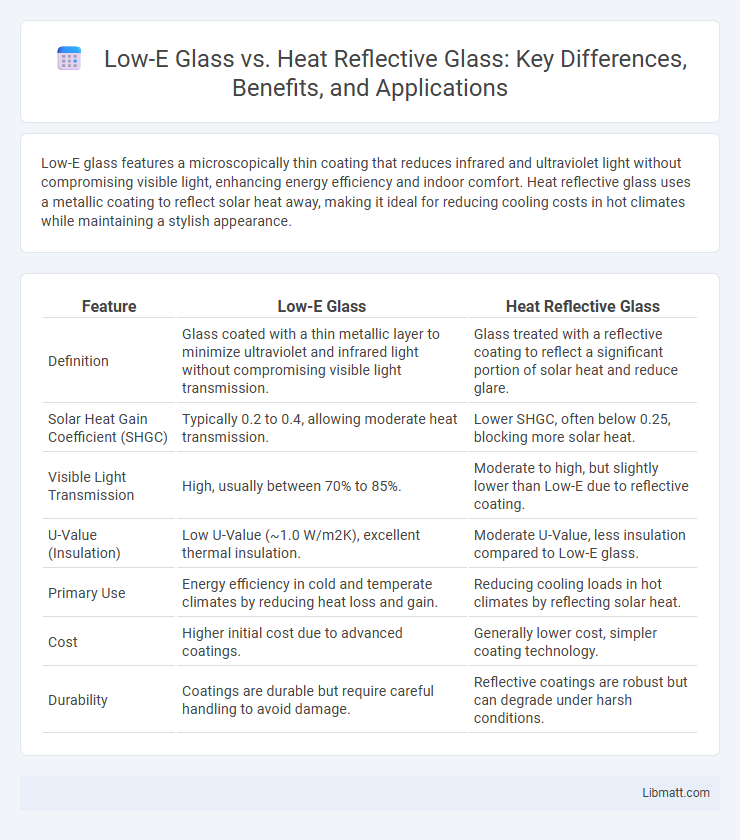

Low-E glass vs heat reflective glass Infographic
