libmatt.com Jack-up rigs are mobile platforms with extendable legs that rest on the seabed, ideal for shallow waters up to 400 feet, while semi-submersible rigs float and are partially submerged, offering stability in deeper waters exceeding 1,500 feet. Your choice depends on water depth, environmental conditions, and project requirements, with jack-up rigs favored for cost-effectiveness in shallow sites and semi-submersibles preferred for harsh weather and depth versatility.
Table of Comparison
| Feature | Jack-up Rig | Semi-submersible Rig |
|---|---|---|
| Structure | Legs that rest on seabed | Floating platform supported by submerged pontoons |
| Water Depth | Up to 150 meters (500 feet) | Up to 2,000 meters (6,500 feet) |
| Mobility | Relatively limited; lower transit speed | High; can be towed or self-propelled |
| Stability | Stable when legs fixed on seabed | Highly stable in rough seas due to submerged hull |
| Deployment Time | Shorter setup time | Longer setup and positioning time |
| Operating Environment | Shallow waters, calm conditions | Deep waters, harsh weather |
| Cost | Lower initial investment | Higher operating and maintenance cost |
| Use Cases | Shallow water drilling and construction | Deepwater drilling and exploration |
Introduction to Offshore Drilling Rigs
Jack-up rigs feature a mobile platform supported by retractable legs that extend to the seafloor, making them ideal for shallow waters up to 400 feet deep. Semi-submersible rigs float on pontoons partially submerged below the water surface, allowing operations in deeper waters exceeding 10,000 feet with excellent stability. These rig types serve critical roles in offshore drilling by enabling exploration and extraction in varying marine environments based on water depth and operational requirements.
What is a Jack-up Rig?
A Jack-up rig is a type of mobile offshore drilling unit equipped with legs that can be lowered to the seabed to elevate the platform above the water surface, providing a stable working environment. This rig is ideal for shallow waters up to around 400 feet, offering efficient drilling operations in coastal and continental shelf areas. Your selection between a Jack-up rig and a semi-submersible rig depends on water depth, environmental conditions, and project requirements.
What is a Semi-Submersible Rig?
A semi-submersible rig is an offshore drilling platform designed to float on large pontoons submerged below the water surface, providing stability in harsh ocean conditions. Unlike jack-up rigs that rest on the seabed with extendable legs, semi-submersibles remain buoyant and are anchored or dynamically positioned over deepwater sites. These rigs are ideal for deepwater drilling due to their ability to withstand waves, wind, and currents while maintaining drilling precision.
Key Design Differences
Jack-up rigs feature a fixed platform with extendable legs that rest on the seafloor, providing stability in shallow waters up to approximately 150 meters. Semi-submersible rigs float on large pontoons submerged below the water surface, stabilized by ballast systems, enabling operation in deep waters exceeding 500 meters. The primary design distinction lies in jack-up rigs' reliance on seabed support versus semi-submersibles' buoyancy and ballast control for stability in deeper environments.
Operating Water Depth Capabilities
Jack-up rigs typically operate in shallow waters up to 150 meters, utilizing extendable legs that rest on the seafloor for stability. Semi-submersible rigs are designed for deeper water applications, commonly operating at depths ranging from 150 to over 3,000 meters due to their buoyant submerged pontoons. The choice between these rig types depends heavily on site-specific water depth, with jack-up rigs favored in continental shelf regions and semi-submersibles suited for deepwater offshore drilling projects.
Mobility and Transportation
Jack-up rigs offer superior mobility for shallow-water operations due to their retractable legs that allow them to be towed and then jacked up onto the seabed, facilitating quick relocation. Semi-submersible rigs excel in deeper waters with better stability but require heavy-lift vessels or self-propulsion combined with tow vessels for transportation over long distances. The choice between these rigs depends heavily on water depth and operational logistics, impacting overall project efficiency.
Stability and Safety Factors
Jack-up rigs provide exceptional stability in shallow waters by anchoring their legs directly to the seabed, minimizing movement and enhancing safety during drilling operations. Semi-submersible rigs, designed for deepwater environments, achieve stability through submerged pontoons that use ballast systems to counteract wave and wind forces, ensuring a steady platform even in rough seas. Both rig types incorporate advanced safety features, but the choice depends on water depth and environmental conditions, with jack-ups excelling in shallow, stable settings and semi-submersibles offering superior stability in deep, turbulent waters.
Cost Considerations
Jack-up rigs generally incur lower operational costs due to their simpler design and shallow-water deployment capabilities, making them more cost-effective for drilling in water depths up to 400 feet. Semi-submersible rigs, while more expensive to build and operate, offer greater stability and versatility in deeper waters exceeding 1,000 feet, justifying their higher initial investment for complex offshore projects. Your choice between the two should consider project depth, duration, and budget constraints to optimize overall cost efficiency.
Typical Use Cases and Applications
Jack-up rigs are primarily used for shallow water drilling operations, making them ideal for coastal and shelf environments with depths up to 400 feet. Semi-submersible rigs operate efficiently in deeper waters, typically ranging from 300 to over 10,000 feet, and are preferred for offshore oil and gas exploration and production in harsh sea conditions. Both rig types support various applications including drilling, well intervention, and platform maintenance, but semi-submersibles provide greater stability in rough weather and deeper water deployments.
Choosing Between Jack-up and Semi-Submersible Rigs
Choosing between jack-up and semi-submersible rigs depends on water depth, operational environment, and project requirements. Jack-up rigs are ideal for shallow waters up to 400 feet, providing stability through extendable legs anchored to the seabed, while semi-submersible rigs excel in deepwater environments beyond 1,000 feet with buoyant pontoons submerged below the surface for enhanced stability in harsh conditions. Your decision should consider cost-efficiency, mobility, and the specific challenges of the offshore site to optimize drilling performance and safety.

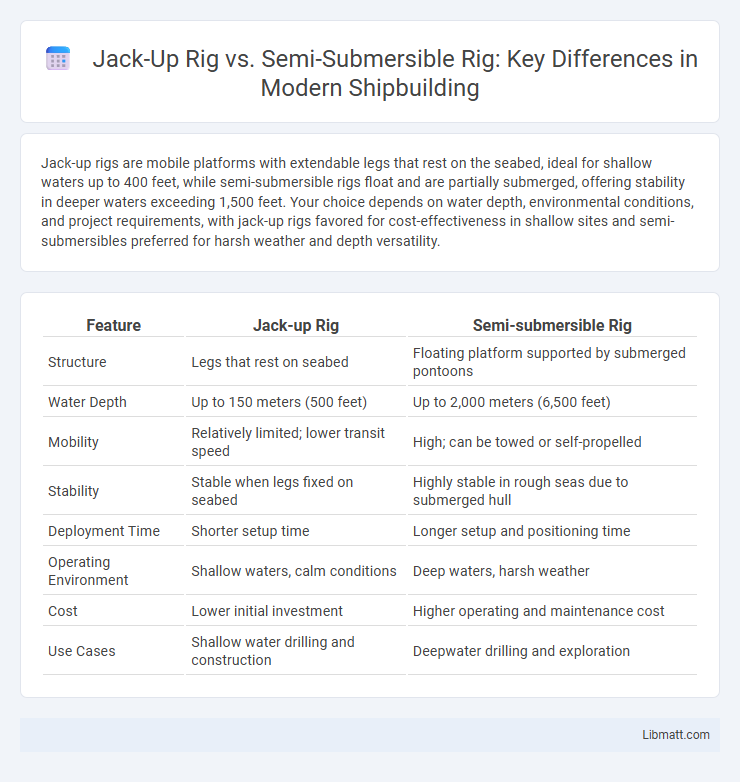

Jack-up rig vs semi-submersible rig Infographic
