libmatt.com ARINC 429 is a simpler, point-to-point data bus standard used primarily for transmitting data between avionics systems with a fixed format and limited speed, while ARINC 629 offers a more advanced, multi-transmitter, and multi-receiver data bus that supports higher data rates and enhanced message flexibility. Understanding the differences between ARINC 429 and ARINC 629 helps you choose the appropriate communication protocol for efficient and reliable avionics integration.

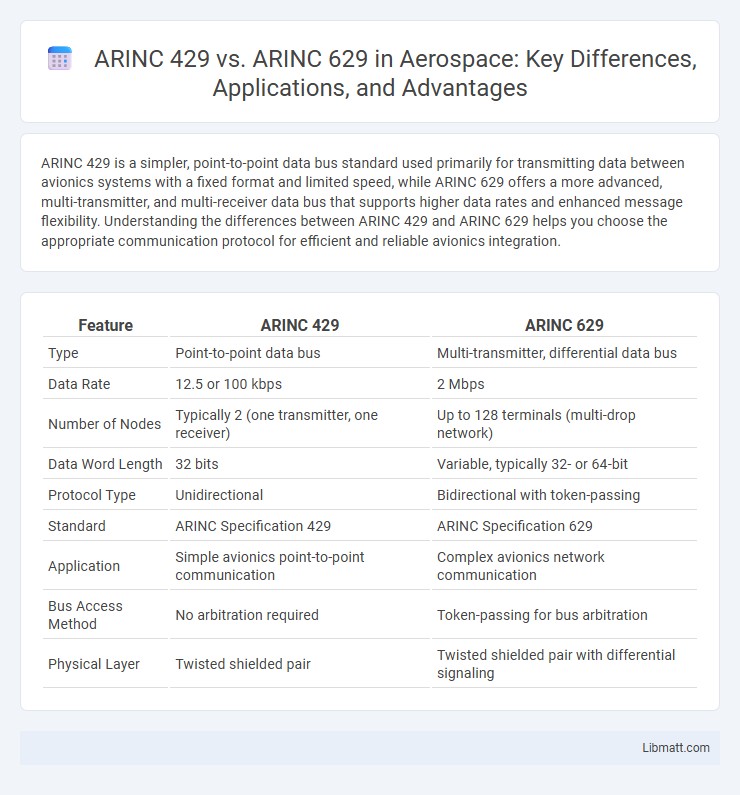

Table of Comparison
| Feature | ARINC 429 | ARINC 629 |
|---|---|---|
| Type | Point-to-point data bus | Multi-transmitter, differential data bus |
| Data Rate | 12.5 or 100 kbps | 2 Mbps |
| Number of Nodes | Typically 2 (one transmitter, one receiver) | Up to 128 terminals (multi-drop network) |
| Data Word Length | 32 bits | Variable, typically 32- or 64-bit |
| Protocol Type | Unidirectional | Bidirectional with token-passing |
| Standard | ARINC Specification 429 | ARINC Specification 629 |
| Application | Simple avionics point-to-point communication | Complex avionics network communication |
| Bus Access Method | No arbitration required | Token-passing for bus arbitration |
| Physical Layer | Twisted shielded pair | Twisted shielded pair with differential signaling |
Introduction to ARINC 429 and ARINC 629
ARINC 429 is a point-to-point data transfer standard primarily used in avionics for simple, unidirectional communication between systems, featuring a fixed word length of 32 bits. ARINC 629, by contrast, supports a multi-transmitter/multi-receiver data bus with a more complex protocol enabling asynchronous data transfer and improved message efficiency through a variable-length message format. Understanding these foundational differences helps you select the appropriate architecture for reliable aircraft data communication systems.
Historical Background and Development
ARINC 429, developed in the 1970s, became the standard for commercial aircraft data buses, enabling reliable point-to-point communication for avionics systems. ARINC 629, introduced in the late 1980s, emerged as a more advanced, multi-transmitter data bus designed to support increased complexity and data volume in modern aircraft networks. Your understanding of these protocols highlights the evolution from simpler, slower communication to more sophisticated, high-speed networking in aerospace avionics.
Key Technical Differences
ARINC 429 utilizes a simple, point-to-point communication protocol with a 12.5 kbps data rate and unidirectional data flow, whereas ARINC 629 implements a more complex, multi-transmitter bus system supporting bidirectional data at up to 2 Mbps. ARINC 429 transfers fixed-length 32-bit words with a single transmitter and multiple receivers per bus, while ARINC 629 allows multiple transmitters on one bus using a deterministic arbitration scheme to avoid collisions. Your system's data throughput and complexity needs will determine whether the simplicity of ARINC 429 or the higher capacity and flexibility of ARINC 629 is the better fit.
Architectural Overview of ARINC 429
ARINC 429 features a point-to-point data bus architecture where a single transmitter communicates with multiple receivers via one-way simplex transmission, ensuring deterministic and reliable avionics data exchange. This architecture supports 32-bit word frames transmitted at standardized speeds of 12.5 or 100 kbps, optimizing integration in commercial aircraft systems. Understanding ARINC 429's structured, unidirectional design enables you to evaluate its suitability compared to the multi-transmitter, multi-receiver, and high-speed bus of ARINC 629.
Architectural Overview of ARINC 629
ARINC 629 features a multi-transmitter data bus architecture supporting up to 128 terminals on a single bus, enhancing scalability compared to ARINC 429's point-to-point configuration. Its self-clocking signaling and time multiplexing approach improve data throughput and reduce wiring complexity. This architectural advancement allows your avionics systems to communicate more efficiently with higher data rates and fault tolerance.
Data Transmission Methods
ARINC 429 employs a unidirectional, point-to-point data transmission method using a fixed 32-bit word format with bipolar Return-to-Zero (RZ) signaling, ensuring simple and reliable communication for avionics systems. In contrast, ARINC 629 utilizes a multidrop data bus approach with self-clocking, Manchester II encoding, supporting multiple transmitters and enhanced data integrity through a decentralized communication protocol. The ARINC 629 bus allows asynchronous message transfers up to 2 Mbps, significantly improving bandwidth and scalability compared to ARINC 429's 12.5 or 100 kbps fixed rates.
Communication Protocols and Speed
ARINC 429 employs a unidirectional, point-to-point communication protocol operating at speeds of 12.5 or 100 kbps, which ensures reliable data transfer between avionics systems through a simple electrical signaling method. ARINC 629 uses a bidirectional, multi-transmitter protocol with a higher data rate of up to 2 Mbps, enabling a more efficient, shared data bus suitable for complex aircraft systems. The increased speed and flexibility of ARINC 629 support advanced avionics integration and real-time data exchange far beyond the capabilities of ARINC 429.
Application Use Cases in Aviation
ARINC 429 is primarily used for point-to-point data transmission in commercial aircraft for systems like navigation and flight management. ARINC 629 enables a multi-transmitter data bus architecture ideal for complex systems requiring high data throughput and flexibility, such as large commercial and military aircraft avionics. Both standards support reliable communication but differ in scalability and interoperability for aviation applications.
Advantages and Limitations
ARINC 429 offers simplicity, reliability, and ease of implementation with its point-to-point data transmission, making it suitable for straightforward avionics communication but limiting scalability and data bandwidth. ARINC 629 enhances network efficiency through multi-transmitter capability and higher data rates, supporting complex aircraft systems with improved data traffic management at the cost of increased system complexity and development effort. Your choice depends on balancing the need for simplicity and robustness against the demands for scalability and higher data throughput in avionics communication.
Future Trends and Industry Adoption
ARINC 429 remains widely used due to its simplicity and reliability in avionics data communication, but ARINC 629 is increasingly adopted for its higher data rates and improved fault tolerance, making it suitable for next-generation aircraft systems. Future trends indicate a shift towards ARINC 629 and other more advanced protocols like AFDX, as the industry demands greater bandwidth and network flexibility to support complex avionics architectures. Your decision on communication protocols will impact system scalability and interoperability as aerospace manufacturers progressively favor ARINC 629 for modern avionics applications.
