libmatt.com A Gurney flap is a small, perpendicular tab attached to the trailing edge of an airfoil to increase lift by disrupting airflow and creating a vortex, while vortex generators are small, fin-like devices placed on the wing surface to enhance airflow stability and delay flow separation. Your choice between these devices depends on whether you need increased lift or improved control of boundary layer flow for better aerodynamic efficiency.
Table of Comparison
| Feature | Gurney Flap | Vortex Generator |
|---|---|---|
| Primary Function | Increase lift and improve low-speed aerodynamic performance | Delay flow separation by energizing boundary layer |
| Design | Small vertical tab attached to trailing edge of wing | Small aerodynamic fins placed on the wing surface |
| Aerodynamic Impact | Increases lift coefficient (Cl), slightly increases drag | Reduces flow separation, improving control and delaying stall |
| Typical Applications | Enhancing lift on wing flaps, low-speed aircraft, racing aircraft | Commercial and military aircraft wings, helicopter blades, wind turbines |
| Installation Location | Trailing edge of airfoil | Upper wing surface, near leading edge or mid-chord |
| Effect on Drag | Modest increase in drag | Minimal drag penalty, sometimes reduces drag |
| Maintenance | Simple, low maintenance | Requires periodic inspection and cleaning |
Introduction to Gurney Flap and Vortex Generator
A Gurney flap is a small, perpendicular tab attached to an airfoil's trailing edge, designed to increase lift and improve aerodynamic performance by altering airflow separation patterns. Vortex generators are small, fin-like devices mounted on aircraft wings or turbine blades that create controlled vortices to delay flow separation and enhance surface airflow stability. Both technologies optimize aerodynamic efficiency but operate through distinct mechanisms affecting lift and drag characteristics.
Understanding Aerodynamic Principles
Gurney flaps and vortex generators are aerodynamic devices designed to enhance airflow control on aircraft surfaces, improving lift and reducing drag. A Gurney flap is a small tab mounted on the trailing edge of a wing, which increases lift by generating a higher pressure difference, while vortex generators are small vanes that create controlled vortices to delay flow separation and maintain smooth airflow. Your understanding of these principles helps optimize aircraft performance by selecting the appropriate device based on specific aerodynamic goals such as lift enhancement or drag reduction.
What is a Gurney Flap?
A Gurney Flap is a small, perpendicular tab attached to the trailing edge of an aircraft wing or airfoil, designed to enhance lift by altering airflow and increasing pressure on the wing's upper surface. Unlike vortex generators, which create controlled vortices to delay boundary layer separation, the Gurney Flap modifies the wake and pressure distribution to improve aerodynamic performance. You can optimize your aircraft's lift-to-drag ratio by selecting the appropriate Gurney Flap size based on flight conditions and design requirements.
What is a Vortex Generator?
A vortex generator is a small aerodynamic device typically installed on aircraft wings or turbine blades to improve airflow by creating controlled vortices that delay flow separation and increase lift. These devices are designed to energize the boundary layer, reducing drag and enhancing the overall aerodynamic performance of the surface. Unlike Gurney flaps, which add a fixed trailing edge extension to increase downforce, vortex generators manipulate airflow patterns to optimize efficiency and stability.
Key Functional Differences
Gurney flaps are small, perpendicular tabs attached to the trailing edge of a wing designed to increase lift by modifying the airflow and creating higher pressure on the lower surface, primarily enhancing low-speed aerodynamic performance. Vortex generators are small, fin-like devices placed on the wing surface to energize the boundary layer and delay flow separation, improving control and stability at higher angles of attack and speeds. The key functional difference lies in their purpose: Gurney flaps boost lift by altering pressure distribution, while vortex generators focus on maintaining airflow attachment for better aerodynamic efficiency and stall characteristics.
Advantages of Gurney Flaps
Gurney flaps enhance lift by increasing the pressure difference between the upper and lower surfaces of an airfoil, improving aerodynamic efficiency at lower speeds. They are simpler, lighter, and easier to install compared to vortex generators, making them cost-effective for performance improvements. Your aircraft benefits from increased stability and control without significantly increasing drag or complexity.
Benefits of Vortex Generators
Vortex generators improve aerodynamic performance by energizing the boundary layer, reducing flow separation and drag, and enhancing stability and control on aircraft wings and turbine blades. These small, fin-like devices effectively increase lift at lower speeds and delay stall, leading to better fuel efficiency and overall reliability. Their versatility in various applications makes them essential for optimizing airflow in aviation and renewable energy sectors.
Common Applications in Automotive and Aviation
Gurney flaps and vortex generators both enhance aerodynamic performance by improving lift and reducing drag, with Gurney flaps commonly used on race cars and aircraft wings to increase downforce and control airflow separation. Vortex generators are widely applied in commercial and military aircraft to delay boundary layer separation and improve control surface effectiveness, as well as on high-performance automotive spoilers to optimize stability at high speeds. Both devices play critical roles in optimizing airflow management for better vehicle handling and fuel efficiency in automotive and aviation industries.
Performance Comparison: Gurney Flap vs Vortex Generator
Gurney flaps increase downforce by creating a high-pressure zone on the wing's lower surface, enhancing lift and improving cornering performance, especially at lower speeds. Vortex generators generate controlled vortices that delay flow separation, reducing drag and maintaining stability at higher speeds. Your choice depends on whether maximizing low-speed grip (Gurney flap) or improving high-speed aerodynamic efficiency (vortex generator) aligns better with your performance goals.
Choosing the Right Solution for Aerodynamic Optimization
Selecting between a Gurney flap and a vortex generator depends on specific aerodynamic goals such as drag reduction, lift enhancement, or flow control. Gurney flaps are ideal for increasing lift on airfoils by creating a controlled pressure difference, while vortex generators excel in delaying flow separation and improving stability at high angles of attack. Evaluating factors like aircraft type, operational speed, and performance requirements ensures the optimal aerodynamic optimization strategy.

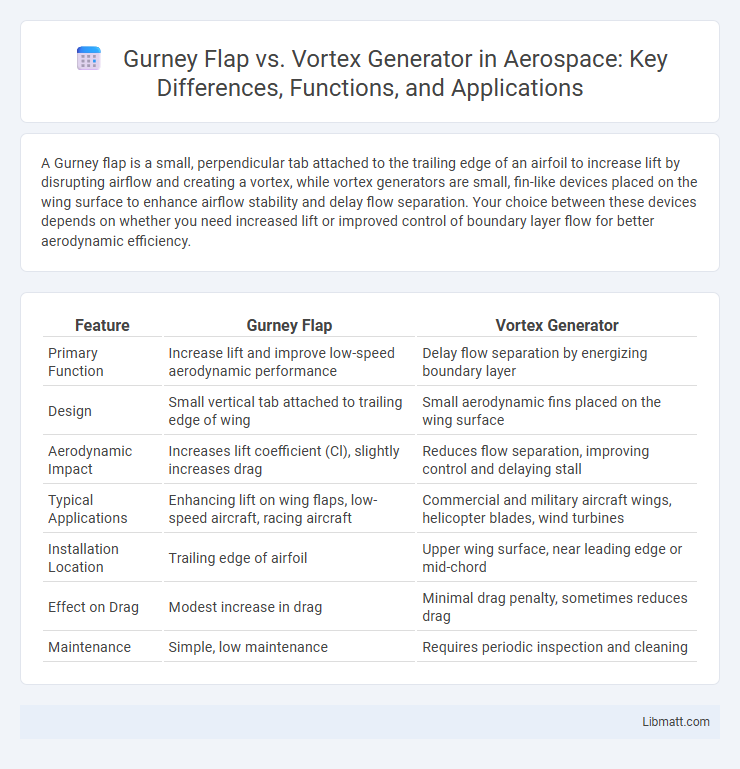

Gurney Flap vs Vortex Generator Infographic
