libmatt.com A ram air turbine (RAT) provides emergency power by deploying a small propeller driven by the airstream during flight, ensuring critical systems remain operational if main engines fail. Your aircraft relies on an auxiliary power unit (APU) for ground power and engine start, offering a self-contained source of energy independent from flight speed.
Table of Comparison
| Feature | Ram Air Turbine (RAT) | Auxiliary Power Unit (APU) |
|---|---|---|
| Purpose | Emergency power generation during main engine failure | Provides electrical and pneumatic power on the ground and in-flight |
| Power Source | Wind-driven turbine deployed into airstream | Small gas turbine engine |
| Operation | Automatically deploys during power loss, converts airflow into energy | Operated manually or automatically during startup and ground operations |
| Power Output | Limited, enough for essential systems only | Higher, supports full electrical and pneumatic demands |
| Weight & Complexity | Lightweight, simple mechanism | Heavier, complex system requiring fuel and maintenance |
| Typical Use | Emergency backup during flight | Ground operations and engine start assistance |
| Activation Time | Immediate upon deployment | Requires startup time |
Introduction to Ram Air Turbine and APU
Ram Air Turbine (RAT) is an emergency power source deployed in aircraft to provide hydraulic or electrical power using the airflow during flight when primary systems fail. Auxiliary Power Unit (APU) is a small turbine engine used primarily on the ground to supply electrical power and air conditioning, independent of the main engines. You rely on RAT for in-flight emergency power, while the APU supports aircraft systems during startup and on the ground.
Basic Working Principles
A Ram Air Turbine (RAT) operates by deploying a small wind turbine into the airstream, converting the kinetic energy of the aircraft's high-speed airflow into electrical or hydraulic power for emergency systems. The Auxiliary Power Unit (APU) is a self-contained gas turbine engine that provides electrical, pneumatic, and hydraulic power independently of the main engines, primarily used during ground operations and as a backup in flight. Both systems serve as auxiliary power sources, but RAT relies on the aircraft's velocity, whereas the APU functions autonomously regardless of airspeed.
Key Components and Design Differences
A Ram Air Turbine (RAT) consists of a small turbine that deploys into the airstream to generate emergency power, featuring components like a retractable turbine, generator, and hydraulic pump, designed for rapid activation during power loss. An Auxiliary Power Unit (APU) is a compact gas turbine engine equipped with a compressor, combustion chamber, and turbine section, providing electrical and pneumatic power on the ground or in-flight for aircraft systems. Your choice between RAT and APU depends on the need for emergency backup power versus continuous support for electrical and air conditioning systems during aircraft operation.
Power Generation Capabilities
A ram air turbine (RAT) provides emergency power generation using aerodynamic force from the airstream during flight, delivering limited electrical and hydraulic power primarily for critical systems. The auxiliary power unit (APU) offers more robust and versatile power generation on the ground and in-flight, capable of supporting aircraft systems and engine start-up with consistent electrical and pneumatic outputs. Your choice depends on the need for continuous, reliable power via the APU versus the RAT's emergency power supply in case of main engine or generator failure.
Typical Applications in Aircraft
Ram air turbines (RATs) serve as emergency power sources during in-flight electrical failures, commonly deployed in commercial airliners and military aircraft for critical systems backup. Auxiliary power units (APUs) provide primary ground power and engine start functions, widely used in both commercial and business jets to supply electricity and pneumatic power while aircraft are on the ground. RATs activate automatically during main power loss, whereas APUs operate on demand for non-emergency power needs.
Operational Scenarios: RAT vs. APU
The Ram Air Turbine (RAT) deploys automatically in emergency situations to provide essential hydraulic and electrical power when main systems fail, ensuring aircraft control during critical flight phases. The Auxiliary Power Unit (APU) operates on the ground or during flight to supply electrical power and bleed air for engine starts, cabin conditioning, and systems operation, offering more sustained power for non-emergency scenarios. Your understanding of these operational scenarios helps optimize aircraft safety by effectively managing power sources under varying flight conditions.
Emergency Use and Reliability
Ram Air Turbines (RATs) provide immediate emergency power by deploying automatically during electrical failures, ensuring critical systems remain operational through aerodynamic force without relying on fuel. Auxiliary Power Units (APUs) deliver reliable power on the ground and can support emergency functions but require fuel and time to start, limiting their instant availability during in-flight emergencies. RATs offer superior reliability in sudden power loss scenarios due to their mechanical simplicity and independence from fuel, while APUs provide extended power support when available.
Maintenance and Durability
Ram Air Turbines (RATs) offer a simpler maintenance profile due to their mechanical nature and limited moving parts, resulting in enhanced durability and fewer failure points during emergency use. Auxiliary Power Units (APUs) require regular inspection, fuel system checks, and more complex maintenance procedures because of their intricate engines and auxiliary systems. RATs typically exhibit longer operational reliability under emergency conditions, while APUs demand higher upkeep to ensure performance and longevity in routine ground and flight power supply roles.
Advantages and Limitations
Ram Air Turbines (RAT) provide immediate emergency power during engine failure by harnessing aerodynamic force, ensuring critical systems like hydraulics and electrical remain operational. Auxiliary Power Units (APU) offer versatile, independent power on the ground and during flight but rely on fuel consumption and require proper maintenance to avoid operational delays. Understanding your aircraft's design helps optimize the balance between RAT's reliability in emergencies and the APU's fuel-based power support.
Choosing Between RAT and APU: Factors to Consider
Choosing between a Ram Air Turbine (RAT) and an Auxiliary Power Unit (APU) depends on the aircraft's operational requirements, weight constraints, and emergency power needs. RATs provide immediate emergency electrical and hydraulic power by deploying into the airstream during engine failure, making them essential for redundancy and safety during critical phases of flight. APUs offer reliable ground power and engine start capability but add weight and complexity, influencing fuel efficiency and maintenance considerations in commercial and military aircraft.

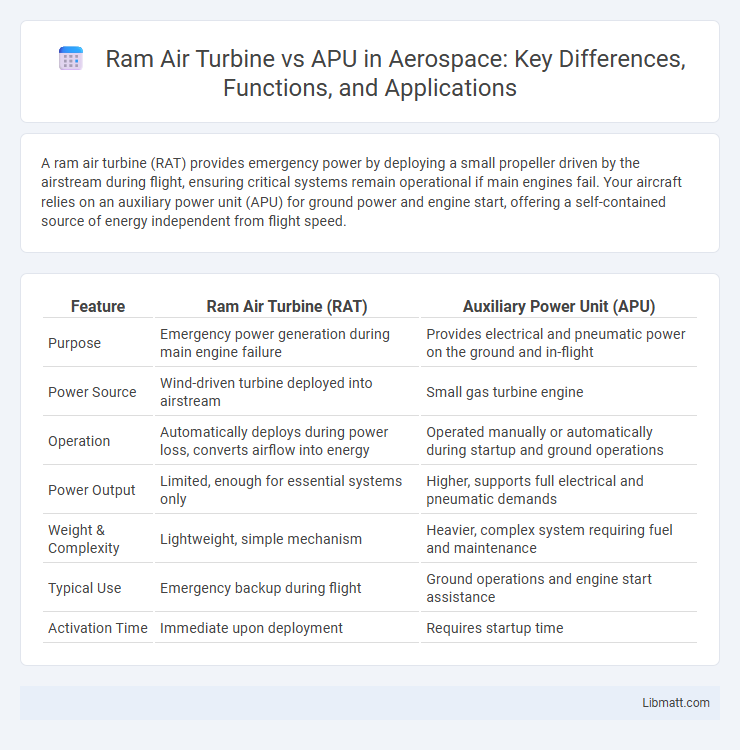

ram air turbine vs APU Infographic
