libmatt.com Pile caps transfer structural loads from columns to underlying piles, providing stable support in deep foundation systems, whereas grade beams distribute loads between footings or pile caps, reinforcing the soil near the surface for enhanced ground stability. Understanding the difference helps optimize Your foundation design for both load-bearing efficiency and soil conditions.
Table of Comparison
| Feature | Pile Cap | Grade Beam |
|---|---|---|
| Definition | A thick concrete slab that rests on piles to distribute load from columns | A reinforced concrete beam at ground level supporting walls and transferring loads to piles or soil |
| Purpose | Transfers structural load to deep foundation piles | Connects pile caps or footings, supports wall loads |
| Location | Below columns, on top of piles | At ground level between columns or piles |
| Structural Role | Load distribution and pile reinforcement | Acts as a beam to support wall loads and reduce soil pressure |
| Typical Materials | Reinforced concrete with steel rebar | Reinforced concrete with steel rebar |
| Load Transfer | Column loads to piles | Wall loads to piles or soil |
| Application | Deep foundations in weak soil conditions | Supporting walls in framed foundation systems |
| Cost Implication | Higher due to deep pile and cap construction | Moderate, depends on soil and structural design |
| Construction Time | Longer, involves pile driving and curing | Shorter, simpler cast-in-place beam |
Introduction to Pile Cap and Grade Beam
Pile caps are thick concrete slabs placed on top of foundation piles to distribute structural loads evenly across multiple piles, ensuring stability in weak soil conditions. Grade beams are horizontal concrete beams that connect and support foundation walls or columns by spanning between piles or footings at ground level. You can choose between a pile cap and a grade beam based on soil strength, load distribution requirements, and structural design needs.
Definition of Pile Cap
A pile cap is a thick concrete mat that rests on top of piles driven into the ground to distribute structural loads evenly across the foundation. It serves as a critical structural element connecting multiple piles and providing a stable base for columns or walls. Unlike grade beams, which primarily transfer loads between columns and support floor slabs, pile caps directly transfer loads from the superstructure to the deep foundation system.
Definition of Grade Beam
A grade beam is a reinforced concrete beam designed to support and distribute structural loads between foundations or piles, often spanning over weak soil. It functions as a horizontal load-bearing element that transfers load from the walls to the piles or footings below. You should understand that unlike pile caps, which concentrate loads at pile heads, grade beams provide continuous support over a larger area, enhancing stability and load distribution.
Key Differences Between Pile Cap and Grade Beam
Pile caps transfer loads from columns to deep foundation piles, providing a stable base for structures on weak soil, while grade beams distribute loads between columns and support the foundation on shallow soil. Pile caps are typically thick, heavy slabs connecting multiple piles, whereas grade beams are long, narrow beams spanning between columns or walls. Understanding these key differences ensures Your foundation design aligns with soil conditions and structural requirements.
Functions and Structural Roles
Pile caps distribute loads from columns or walls to underlying piles, ensuring stability and load transfer in deep foundation systems. Grade beams span between piles, supporting wall loads and providing lateral support to prevent soil movement and differential settlement. Both structural elements work together to enhance the foundation's load-bearing capacity and overall integrity in construction projects.
Construction Methods and Materials Used
Pile caps are constructed by placing reinforced concrete over groups of piles to evenly distribute structural loads, typically involving formwork, steel reinforcement, and concrete pouring directly on driven or bored piles. Grade beams are horizontal reinforced concrete beams cast between foundation walls or piers at ground level, designed to support load-bearing walls and transfer loads to columns or piles, using formwork, rebar cages, and concrete poured in situ. Both use high-strength concrete and steel reinforcement, but pile caps emphasize load transfer to deep foundations while grade beams focus on soil distribution and support for slab-on-grade structures.
Typical Applications in Building Design
Pile caps are primarily used in foundation systems to transfer loads from multiple piles to the superstructure, ensuring structural stability in areas with weak soil conditions or deep foundations. Grade beams serve as horizontal structural elements connecting isolated footings or pile caps, distributing loads across wider areas and resisting soil movement in perimeter or interior foundation walls. Both components play critical roles in load distribution and foundation integrity in residential, commercial, and industrial building designs.
Advantages and Disadvantages
Pile caps distribute loads from columns to multiple foundation piles, providing strong support on weak soil but requiring deep excavation and higher costs. Grade beams connect foundation piles or footings to resist soil movement and reduce differential settlement but may not support heavy loads independently. Choosing between pile caps and grade beams depends on soil conditions, load requirements, and budget considerations.
Cost Considerations
Pile caps generally incur higher costs due to the use of deep foundation elements and extensive formwork compared to grade beams, which are typically more economical as they rest on shallow footings. The complexity of construction and material requirements for pile caps, including heavy reinforcement and concrete volume, significantly influence overall expenditure. Choosing between pile cap and grade beam depends on soil conditions and load demands, where cost efficiency aligns with suitable structural performance.
Which to Choose: Pile Cap or Grade Beam?
Choosing between a pile cap and a grade beam depends on your soil conditions and structural requirements. Pile caps distribute heavy loads from columns to deep foundation piles, ideal for weak or expansive soils, while grade beams connect foundation elements at shallow depths, providing support across unstable soil layers. Opt for pile caps when deep foundation support is needed, but select grade beams for load distribution in more stable, shallow soil conditions.

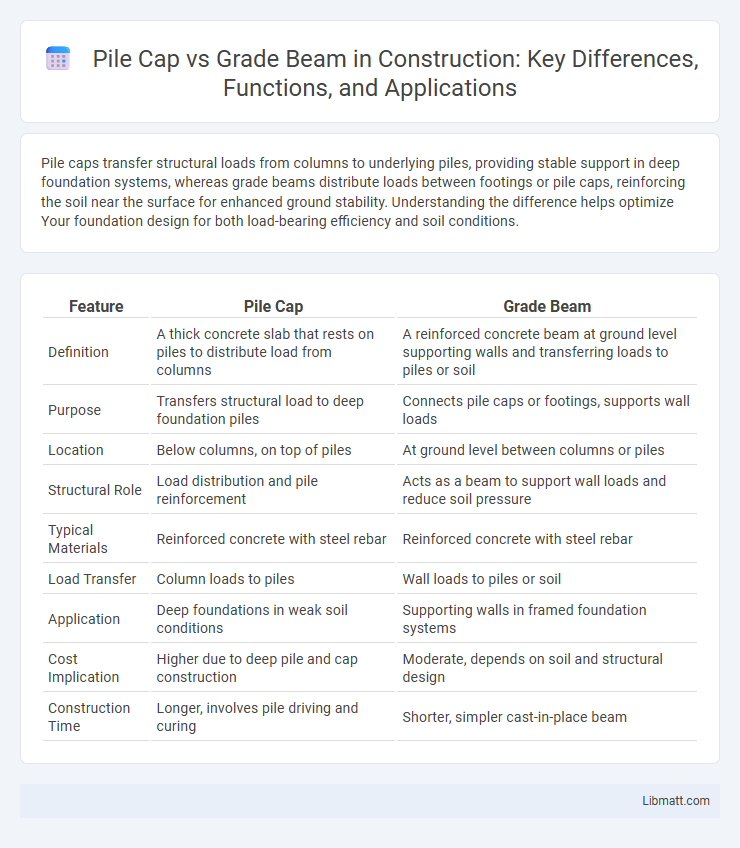

Pile cap vs Grade beam Infographic
