libmatt.com A punched window is a smaller, individual opening set into the building facade, typically framed by solid walls and offering focused natural light and ventilation. Curtain wall windows form large, continuous glass surfaces that create a lightweight, sleek exterior, enhancing your building's aesthetic while maximizing daylight and exterior views.
Table of Comparison
| Feature | Punched Window | Curtain Wall Window |
|---|---|---|
| Definition | Individual window unit set within the building's structural frame | Continuous glass facade system covering entire building exterior |
| Installation | Installed as separate wall openings | Prefabricated panels installed as a continuous envelope |
| Design Flexibility | Limited to window size and frame design | Highly flexible; supports large spans and diverse aesthetics |
| Thermal Performance | Better insulated due to smaller opening size | Requires high-performance glazing to optimize insulation |
| Structural Role | Non-structural, fits between load-bearing walls | Non-structural, supported by building frame but covers structural facade |
| Cost | Lower initial cost, easier maintenance | Higher initial cost, complex installation and maintenance |
| Typical Use | Residential, low-rise commercial buildings | High-rise commercial, office towers, modern architecture |
| Energy Efficiency | Good due to smaller glass area | Depends on glazing technology; potential for solar gain control |
| Air & Water Tightness | Good, simpler sealing requirements | Requires advanced sealants and pressure-equalized design |
Introduction to Punched Windows and Curtain Wall Windows
Punched windows consist of individual, framed window units set into a building's facade, providing controlled openings for natural light and ventilation. Curtain wall windows are large, continuous glass panels attached to the building's structural frame, creating a sleek, modern exterior with extensive daylight and views. Your choice between punched windows and curtain walls impacts energy efficiency, aesthetic appeal, and structural complexity.
Defining Punched Windows: Features and Applications
Punched windows are individual window openings set into the building's facade, characterized by their distinct, framed appearance often separated by solid wall sections. These windows offer enhanced thermal performance and sound insulation, making them ideal for residential and commercial buildings seeking energy efficiency and privacy. Your project can benefit from punched windows in applications where precise daylight control and structural integrity are priorities.
Curtain Wall Windows: Overview and Benefits
Curtain wall windows offer a sleek, modern facade that enhances natural light penetration and provides superior thermal insulation compared to punched windows. These windows are integrated into a non-structural outer covering, allowing for expansive glass surfaces that improve energy efficiency and aesthetic appeal. Their design also supports better resistance to air and water infiltration, contributing to longer building durability and reduced maintenance costs.
Key Differences Between Punched and Curtain Wall Windows
Punched windows are individually framed openings set into a building's facade, typically offering enhanced structural support and thermal performance due to their smaller size and separate installation. Curtain wall windows consist of large, continuous glass panels that form an exterior skin attached to the building's structural frame, maximizing natural light and providing a sleek, modern aesthetic. The key differences lie in design flexibility, energy efficiency, installation complexity, and the ability to handle building movements, with punched windows offering more compartmentalization and curtain walls enabling expansive glass surfaces.
Aesthetic Considerations: Design and Visual Impact
Punched windows offer a rhythmic and traditional aesthetic with clearly defined openings that create a strong visual pattern on a building's facade, enhancing architectural detail and texture. Curtain wall windows provide a sleek, modern appearance with expansive glass surfaces that enable uninterrupted views and maximize natural light, contributing to a lighter and more transparent building envelope. Your choice influences the overall design impact, where punched windows emphasize structural expressiveness while curtain walls prioritize contemporary elegance and minimalism.
Structural Performance and Load Distribution
Punched windows feature individual openings set within solid walls, offering robust structural performance by transferring loads directly through surrounding masonry or concrete, resulting in enhanced load distribution and localized stress management. Curtain wall windows, however, rely on lightweight aluminum frames and glass panels that distribute loads across the entire facade system, requiring an integrated framework to manage wind and gravity loads efficiently. Choosing the right option influences Your building's ability to withstand structural forces and impacts the overall facade performance under various loading conditions.
Thermal Efficiency: Energy Performance Comparison
Punched windows generally offer better thermal efficiency due to their smaller size and increased insulation capacity within the surrounding wall structure, reducing heat transfer and improving energy performance metrics. Curtain wall windows, while allowing extensive natural light and aesthetic appeal, often present challenges in thermal insulation because of their larger glass surface area, which can lead to higher heat gain or loss. Advances in glazing technology and thermal breaks can mitigate some energy performance drawbacks of curtain wall systems, but punched windows typically maintain an edge in overall energy efficiency in building envelopes.
Installation Process and Maintenance Needs
Punched windows involve individual units installed into pre-cut openings in the building's facade, requiring precise alignment and sealing for each frame, which can extend installation time but allows for easier replacement or repair. Curtain wall windows consist of large prefabricated panels installed as a continuous exterior cladding system, streamlining installation with fewer joints but necessitating specialized equipment and expertise to ensure proper waterproofing and structural support. Maintenance of punched windows tends to be simpler since individual windows can be accessed and serviced independently, whereas curtain walls require coordinated inspections to address potential issues like sealant deterioration or panel damage, often demanding professional intervention.
Cost Analysis: Budget Implications
Punched windows typically involve lower initial installation costs due to simpler design and easier construction integration, making them budget-friendly for projects with strict cost constraints. Curtain wall windows, however, can lead to higher upfront expenses because of their extensive materials, complex fabrication, and labor-intensive installation, but they offer superior energy efficiency and aesthetic appeal that may reduce long-term operational costs. Your decision should balance immediate budget limits against potential savings on energy and maintenance over the building's lifespan.
Choosing the Right Window System for Your Building
Punched windows, featuring individual framed openings set within a solid wall, offer distinct advantages in energy efficiency and noise control, making them ideal for buildings requiring traditional aesthetic and robust performance. Curtain wall windows provide a continuous glass facade system that maximizes natural light and offers a sleek, modern appearance, commonly used in commercial high-rises for their structural flexibility and ease of installation. Selecting between punched windows and curtain wall systems depends on factors such as building design, energy performance goals, cost considerations, and the desired architectural style.

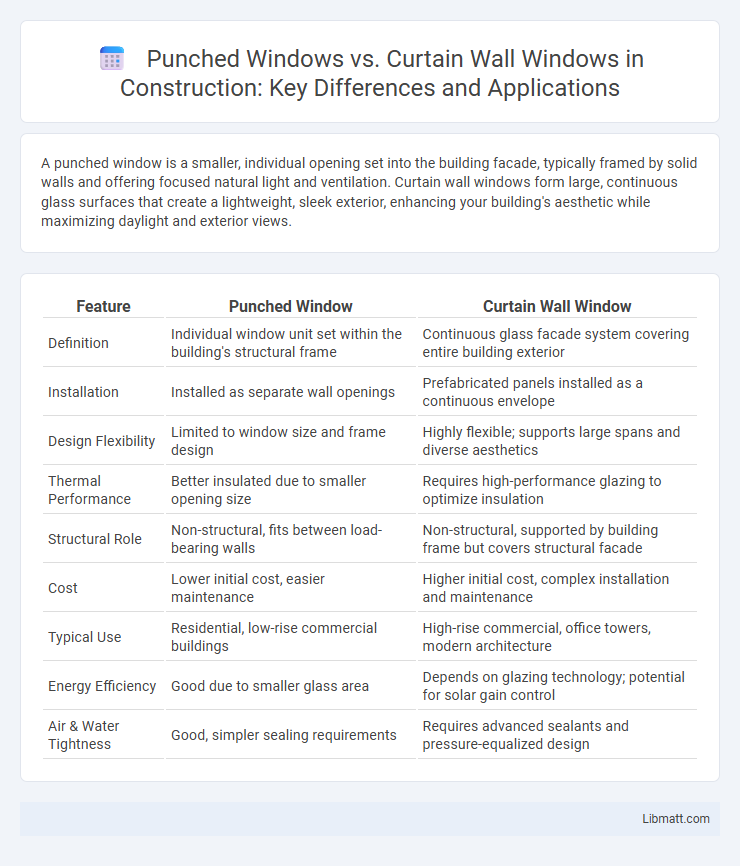

Punched window vs Curtain wall window Infographic
