libmatt.com A voltage follower is a specific type of buffer amplifier designed to provide unity gain, meaning the output voltage exactly follows the input voltage, ensuring high input impedance and low output impedance without signal amplification. Your choice between a buffer amplifier and a voltage follower depends on whether you need signal isolation with unity gain or additional voltage gain in the circuit.
Table of Comparison
| Feature | Buffer Amplifier | Voltage Follower |
|---|---|---|
| Definition | An op-amp configuration with unity gain used to isolate circuits. | Op-amp circuit directly connected output to input for unity gain. |
| Gain | Unity (Gain = 1) | Unity (Gain = 1) |
| Input Impedance | Very High (Typically > 1 MO) | Very High (Typically > 1 MO) |
| Output Impedance | Very Low (Typically < 100 O) | Very Low (Typically < 100 O) |
| Purpose | Prevents loading effect and isolates stages. | Buffers voltage to drive low impedance loads. |
| Applications | Signal isolation, impedance matching. | Impedance matching, signal buffering. |
| Common Configuration | Non-inverting amplifier with unity gain. | Output connected to inverting input (unity gain). |
Introduction to Buffer Amplifiers and Voltage Followers
Buffer amplifiers and voltage followers are essential components in electronic circuits designed to isolate stages and prevent signal loading. A voltage follower, a specific type of buffer amplifier, provides unity gain while maintaining the input signal voltage without attenuation. Your circuit benefits from these configurations by ensuring signal integrity and stable voltage levels across different impedance stages.
Definition and Working Principle of Buffer Amplifiers
Buffer amplifiers, also known as voltage followers, are electronic circuits designed to provide unity gain while isolating the input from the output. They operate by using an operational amplifier configured with its output connected directly to its inverting input, ensuring the output voltage precisely follows the input voltage without loading the signal source. This working principle enables buffer amplifiers to prevent signal distortion and maintain signal integrity in various analog circuit applications.
Understanding the Voltage Follower Configuration
The voltage follower configuration, also known as a buffer amplifier, provides unity gain with high input impedance and low output impedance, effectively isolating the input from the output. This setup ensures that the output voltage precisely follows the input voltage without loading the preceding stage, making it ideal for impedance matching and signal buffering. Voltage followers are widely used in analog circuits to prevent signal attenuation and distortion while maintaining signal integrity.
Key Differences Between Buffer Amplifiers and Voltage Followers
Buffer amplifiers and voltage followers both serve to isolate stages in electronic circuits, but a buffer amplifier typically provides gain and can drive heavier loads, while a voltage follower has unity gain and outputs the exact input voltage. Voltage followers are implemented using operational amplifiers configured for high input impedance and low output impedance, ensuring minimal signal distortion. Buffer amplifiers may incorporate active components to amplify signals with controlled gain, thereby enhancing the driving capability without altering the signal's voltage level significantly.
Common Applications of Buffer Amplifiers
Buffer amplifiers are commonly used in impedance matching to prevent signal source loading and to ensure signal integrity in audio and sensor circuits. Your circuit benefits from buffer amplifiers when isolating stages, driving heavy capacitive loads, or interfacing high-impedance sensors to low-impedance devices. Voltage followers, a specific type of buffer amplifier, are frequently implemented in analog signal conditioning for stable voltage output without signal gain.
Practical Uses of Voltage Followers
Voltage followers are widely used in analog circuits to provide impedance matching, ensuring that high-impedance sources are connected to low-impedance loads without signal loss. They serve as isolation buffers in sensor interfaces, preserving signal integrity while preventing load interference. In audio equipment and data acquisition systems, voltage followers maintain signal fidelity by minimizing distortion and noise during signal transfer.
Advantages and Limitations of Buffer Amplifiers
Buffer amplifiers provide high input impedance and low output impedance, making them ideal for isolating different circuit stages without signal loss. Their main advantages include preventing loading effects and preserving signal integrity, while limitations involve limited voltage gain (unity gain) and potential bandwidth constraints. Your choice depends on the need for signal buffering with minimal distortion rather than amplification.
Benefits and Drawbacks of Voltage Followers
Voltage followers provide high input impedance and low output impedance, ideal for impedance matching in circuits without signal amplification. They maintain the voltage level while isolating the input from the output, preventing loading effects on your signal source. However, voltage followers offer no voltage gain and limited current driving capability, which can be a drawback in applications requiring signal amplification or high current output.
Performance Comparison: Buffer Amplifier vs Voltage Follower
Buffer amplifiers and voltage followers both serve to isolate circuit stages, but buffer amplifiers generally offer higher input impedance and better drive capability, making them ideal for minimizing signal distortion and impedance mismatch. Voltage followers, often implemented using an operational amplifier, provide unity gain and excellent linearity, ensuring your signal is faithfully reproduced without amplification. When choosing between the two, consider that buffer amplifiers excel in high-frequency or high-current applications, whereas voltage followers are preferred for straightforward signal buffering with minimal phase shift.
Choosing the Right Solution for Your Circuit Design
A buffer amplifier offers high input impedance and can drive low impedance loads without signal loss, making it ideal for impedance matching in complex circuits. Voltage followers specifically provide unity gain with minimal phase shift, preserving signal integrity while preventing loading effects. Selecting the right solution depends on whether your design prioritizes gain stability or impedance isolation, with buffer amplifiers excelling in signal buffering and voltage followers suited for voltage stabilization.

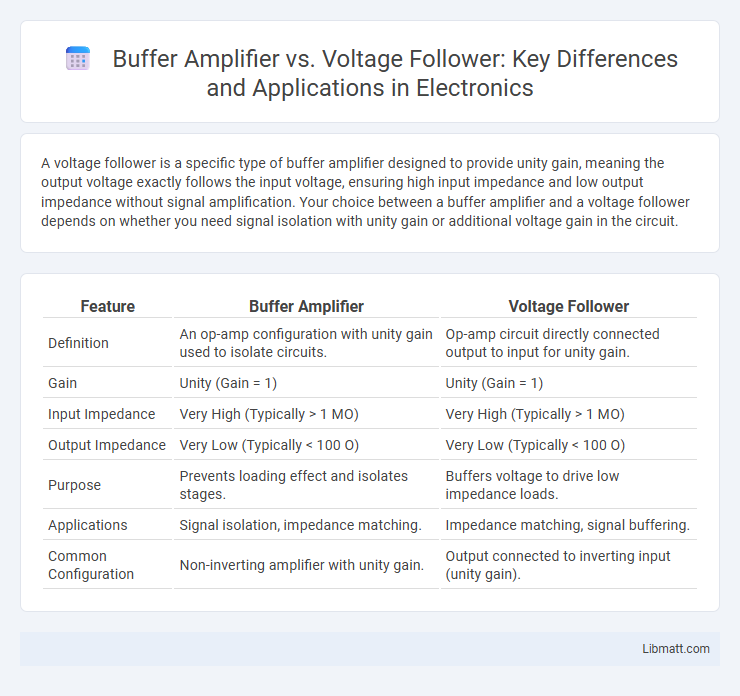

Buffer amplifier vs Voltage follower Infographic
