libmatt.com CPLDs offer simpler architecture with predictable timing and are ideal for basic logic applications, while FPGAs provide higher complexity, greater logic capacity, and extensive configurability for advanced digital designs. Your choice depends on the required logic size, power consumption, and flexibility needs of your project.
Table of Comparison
| Feature | CPLD (Complex Programmable Logic Device) | FPGA (Field Programmable Gate Array) |
|---|---|---|
| Architecture | Fixed logic blocks with programmable interconnect | Array of configurable logic blocks (CLBs) and programmable interconnect |
| Logic Density | Low to medium (thousands of gates) | High (thousands to millions of gates) |
| Configuration Memory | Non-volatile (usually flash or EEPROM) | Volatile (SRAM-based), needs external configuration on power-up |
| Power Consumption | Lower power, suitable for simple control logic | Higher power, suitable for complex and high-speed applications |
| Speed | Moderate speed | High speed with advanced timing control |
| Cost | Lower cost for small designs | Higher cost, justified for complex designs |
| Use Cases | Simple glue logic, interfacing, small control units | Digital signal processing, complex control, system-on-chip (SoC) |
| Reconfiguration | Limited, slower reconfiguration | Fast, dynamic partial reconfiguration supported |
Introduction to CPLD and FPGA
Complex Programmable Logic Devices (CPLDs) offer a simpler architecture with predictable timing, making them ideal for control-oriented applications and smaller logic designs. Field-Programmable Gate Arrays (FPGAs) provide a highly flexible and scalable platform with thousands of logic blocks and embedded memory for complex, high-performance digital circuits. Your choice between CPLD and FPGA depends on factors such as design complexity, power consumption, and cost constraints.
Core Architecture Differences
CPLDs feature a fixed architecture made up of macrocells connected via a predictable interconnect matrix, optimized for deterministic timing and simpler control logic. FPGAs consist of an array of configurable logic blocks (CLBs), programmable interconnects, and embedded memory, allowing for greater flexibility and complexity in design. The core architectural difference lies in CPLDs' use of non-volatile memory for configuration versus FPGAs' reliance on volatile SRAM-based configuration memory requiring external loading on power-up.
Programming and Configuration Methods
CPLDs typically use non-volatile memory for configuration, allowing instant-on operation without requiring external configuration on power-up. FPGAs rely on volatile SRAM-based configuration, necessitating an external memory source or configuration device to load the design at every power cycle. Programming CPLDs often involves simpler, faster configuration with stable data retention, whereas FPGAs provide more flexibility and reconfigurability at the cost of longer startup times.
Performance Capabilities Comparison
CPLDs (Complex Programmable Logic Devices) offer faster response times due to their simpler architecture and predictable timing, making them ideal for control-oriented applications requiring low latency. FPGAs (Field Programmable Gate Arrays) provide higher performance capabilities with extensive parallel processing power and larger logic capacity, enabling complex computations and data-intensive tasks. The choice between CPLD and FPGA depends on the required performance metrics, with CPLDs excelling in deterministic speed and FPGAs in scalability and throughput.
Power Consumption Analysis
CPLDs generally consume less power than FPGAs, making them suitable for low-power applications and battery-operated devices. FPGAs, due to their complex architecture and higher logic density, often require more power, especially in dynamic operation modes. Understanding your system's power budget is crucial when choosing between CPLD vs FPGA for energy-efficient design.
Application Areas and Use Cases
CPLDs are ideal for simple, control-oriented applications such as glue logic, state machines, and basic interfacing in consumer electronics and automotive systems due to their low power consumption and instant-on capabilities. FPGAs excel in complex, data-intensive use cases including signal processing, high-speed networking, and advanced computing tasks like AI acceleration and telecommunications because of their high logic density and reconfigurability. Both technologies are chosen based on application requirements, with CPLDs favored for deterministic timing and FPGAs for scalable parallel processing and customization.
Cost Considerations
CPLDs generally offer lower initial costs compared to FPGAs, making them ideal for budget-sensitive projects with simpler logic requirements. FPGAs tend to have higher unit prices but provide greater flexibility and capacity, which can justify the investment for complex designs and production scalability. Evaluating your project's complexity and volume requirements will help determine the most cost-effective solution between CPLD and FPGA technologies.
Scalability and Flexibility
CPLDs offer limited scalability due to their fixed architecture and smaller logic capacity, making them ideal for simpler control-oriented applications. FPGAs provide superior flexibility and scalability with large arrays of configurable logic blocks and programmable interconnects, supporting complex designs and high-density integration. This makes FPGAs better suited for evolving projects requiring frequent updates or expansions.
Design Tools and Development Support
CPLD design tools typically offer simpler interfaces with limited features suitable for smaller, less complex projects, whereas FPGA tools provide advanced capabilities for intricate designs, including extensive simulation, debugging, and IP integration support. FPGA development ecosystems often include comprehensive libraries, community resources, and vendor-specific software suites like Xilinx Vivado or Intel Quartus, enhancing your productivity and design flexibility. Understanding these differences helps optimize your development workflow based on project complexity and required tool support.
Choosing Between CPLD and FPGA
Choosing between CPLD and FPGA depends on the complexity and scale of your digital design; CPLDs excel in simpler, low-pin-count applications requiring non-volatile memory and instant startup, while FPGAs handle complex calculations and high-speed processing with larger logic capacity and greater flexibility. Consider power consumption and cost constraints, as CPLDs typically consume less power and cost less for smaller designs, whereas FPGAs offer higher performance at a higher price point suitable for advanced applications. Your decision should factor in design size, required speed, power efficiency, and budget to optimize your hardware implementation.

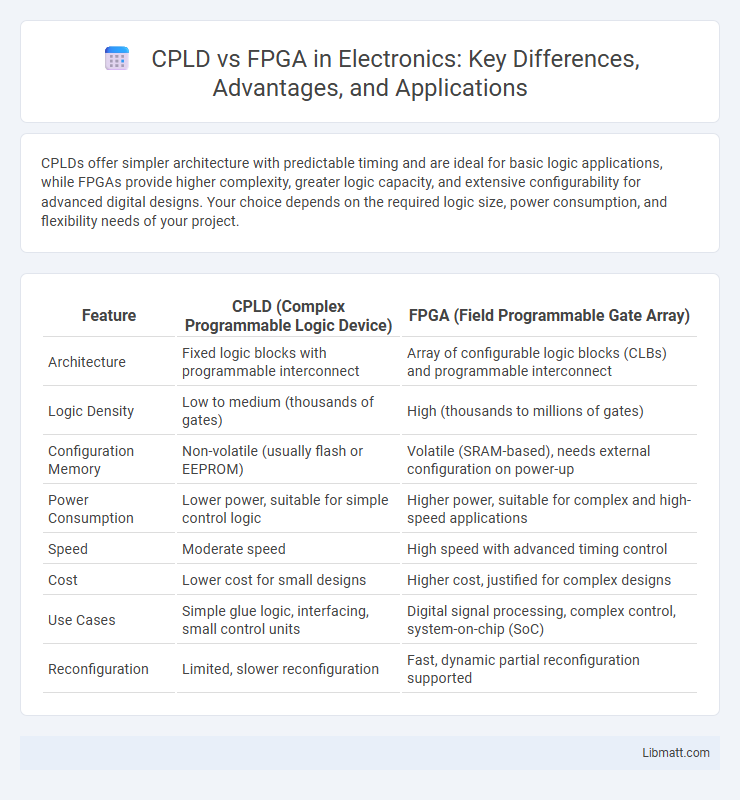

CPLD vs FPGA Infographic
