libmatt.com TTL (Transistor-Transistor Logic) consumes more power and switches slower compared to CMOS (Complementary Metal-Oxide-Semiconductor), which offers lower power consumption and higher noise immunity. Your choice depends on application requirements, as CMOS dominates modern digital circuits due to its efficiency and scalability.
Table of Comparison
| Feature | TTL (Transistor-Transistor Logic) | CMOS (Complementary Metal-Oxide-Semiconductor) |
|---|---|---|
| Power Consumption | High static power, moderate dynamic power | Very low static and dynamic power |
| Speed | Fast switching, typical propagation delay ~10 ns | Slower switching, typical propagation delay ~20 ns (modern CMOS can match TTL) |
| Input/Output Voltage Levels | Standard 5V logic levels (TTL compatible) | Wide voltage range (3.3V, 5V, etc.) |
| Noise Margin | Lower noise margin | Higher noise margin |
| Integration Density | Lower integration density | High integration density |
| Cost | Higher due to complexity and power | Lower, widely used in modern ICs |
| Temperature Stability | Less stable at higher temperatures | More stable over a wide temperature range |
| Applications | Legacy digital circuits, simple logic gates | Microprocessors, memory, low power devices |
Introduction to TTL and CMOS
TTL (Transistor-Transistor Logic) and CMOS (Complementary Metal-Oxide-Semiconductor) represent two fundamental families of digital logic circuits widely used in electronic devices. TTL circuits utilize bipolar junction transistors (BJTs) for switching and amplification, offering faster switching speeds and higher noise immunity, while CMOS technology employs complementary pairs of p-type and n-type MOSFETs, emphasizing low power consumption and high density integration. Understanding the operational principles and electrical characteristics of TTL and CMOS is essential for designing efficient, high-performance digital systems.
Historical Development of TTL and CMOS
TTL (Transistor-Transistor Logic) was developed in the early 1960s by Texas Instruments, revolutionizing digital circuit design with faster switching speeds and higher noise immunity compared to earlier logic families. CMOS (Complementary Metal-Oxide-Semiconductor) technology emerged in the late 1960s and gained prominence in the 1980s due to its low power consumption and high integration capability, becoming dominant in microprocessors and memory devices. The evolution of TTL and CMOS reflects a shift from speed-focused to power-efficient semiconductor technologies in digital electronics.
Basic Principles of TTL Technology
TTL (Transistor-Transistor Logic) technology operates using bipolar junction transistors (BJTs) to perform logic functions, where multiple transistors form multi-emitter input stages and totem-pole output configurations. TTL circuits rely on current switching, with logic states defined by voltage levels typically around 0.2 V for logic LOW and 3.5 V for logic HIGH in a 5 V supply system. The fast switching speed and noise immunity of TTL arise from transistor saturation and cutoff states, enabling robust digital logic performance in various applications.
Basic Principles of CMOS Technology
CMOS technology operates using complementary pairs of p-type and n-type metal-oxide-semiconductor field-effect transistors, which switch states by applying voltage to their gates, allowing minimal static power consumption. Unlike TTL, which uses bipolar junction transistors that continuously draw current, CMOS devices consume power primarily during switching events, making them highly energy-efficient. The low power dissipation and high noise immunity of CMOS circuits have made them the preferred choice for modern integrated circuits and digital electronics.
Key Differences between TTL and CMOS
TTL (Transistor-Transistor Logic) circuits operate with bipolar junction transistors, providing faster switching speeds and higher power consumption, whereas CMOS (Complementary Metal-Oxide-Semiconductor) technology uses MOSFETs, known for lower power consumption and higher noise immunity. TTL devices typically operate at 5V with moderate input impedance, while CMOS circuits can function across a wider voltage range (3V to 15V) and exhibit extremely high input impedance. The key differences lie in power efficiency, voltage range, input/output characteristics, and noise margins, making CMOS preferable for battery-powered applications and TTL suitable for high-speed digital circuits.
Power Consumption: TTL vs CMOS
CMOS technology consumes significantly less power than TTL due to its static power dissipation being nearly zero, as CMOS gates draw current mainly during switching. TTL circuits have higher power consumption because they are based on bipolar junction transistors, which conduct continuously in their active states. The low power consumption of CMOS makes it ideal for battery-powered and high-density integrated circuits compared to the relatively power-hungry TTL family.
Speed and Performance Comparison
TTL (Transistor-Transistor Logic) circuits generally operate at slower speeds, typically in the range of nanoseconds, due to higher power consumption and larger transistor sizes. CMOS (Complementary Metal-Oxide-Semiconductor) technology offers significantly faster switching speeds and higher performance, benefiting from low power dissipation and advanced scaling capabilities. Your choice of CMOS enhances speed-sensitive applications by providing faster response times and improved overall efficiency compared to TTL.
Noise Immunity and Signal Integrity
CMOS technology offers superior noise immunity compared to TTL due to its higher input impedance and lower power consumption, reducing susceptibility to voltage fluctuations and crosstalk. TTL circuits, while faster in switching, tend to have lower signal integrity under noisy conditions because of their lower noise margins and higher static power dissipation. Enhanced signal integrity in CMOS results from its complementary transistor structure, which maintains stable output levels and minimizes propagation delay variability.
Applications of TTL and CMOS
TTL (Transistor-Transistor Logic) is commonly used in digital circuits requiring high-speed switching, such as in early computers, industrial control systems, and certain communication devices due to its robustness and noise immunity. CMOS (Complementary Metal-Oxide-Semiconductor) technology dominates modern applications like microprocessors, memory chips, and battery-powered devices because of its low power consumption and high integration density. Understanding the distinct applications of TTL and CMOS helps you select the appropriate logic family for speed, power efficiency, and system complexity requirements.
Future Trends in Digital Logic Technologies
Future trends in digital logic technologies emphasize the shift from traditional TTL (Transistor-Transistor Logic) to CMOS (Complementary Metal-Oxide-Semiconductor) due to CMOS's superior power efficiency, scalability, and noise immunity. Advancements in CMOS technology enable higher integration densities and lower power consumption, making it the preferred choice for next-generation digital circuits and systems. Your designs will increasingly benefit from CMOS's compatibility with modern fabrication processes, supporting more complex and energy-efficient digital applications.

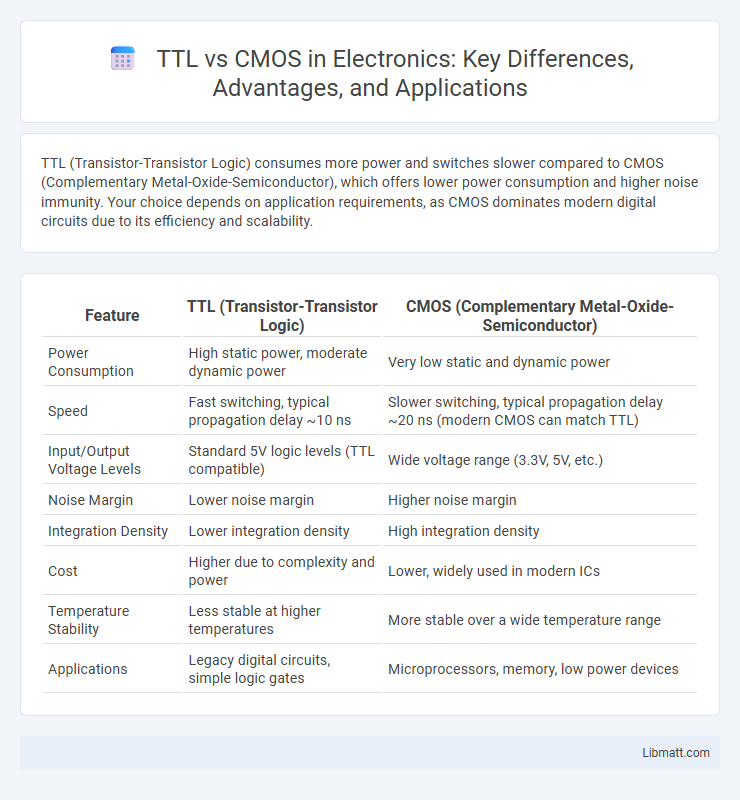

TTL vs CMOS Infographic
