libmatt.com DPDT (Double Pole Double Throw) switches control two separate circuits simultaneously, allowing you to switch between two different outputs for each circuit, while SPDT (Single Pole Double Throw) switches manage only one circuit with two output options. Choosing between DPDT and SPDT depends on your project's complexity and whether you need to control multiple circuits independently.
Table of Comparison
| Feature | DPDT (Double Pole Double Throw) | SPDT (Single Pole Double Throw) |
|---|---|---|
| Poles | 2 poles | 1 pole |
| Throws | 2 throws | 2 throws |
| Contacts | 6 contacts (2 inputs, 4 outputs) | 3 contacts (1 input, 2 outputs) |
| Switching Capability | Switches two circuits simultaneously | Switches one circuit |
| Common Applications | Motor control, polarity reversal, audio switching | Signal routing, on-off switching, logic control |
| Complexity | More complex, larger footprint | Simple, smaller footprint |
| Symbol | Two poles with double throw contacts | Single pole with double throw contacts |
| Cost | Generally higher due to complexity | Lower cost |
Introduction to DPDT and SPDT Switches
DPDT (Double Pole Double Throw) and SPDT (Single Pole Double Throw) switches are fundamental components in electrical circuits used to control the flow of current. DPDT switches have two input poles each capable of connecting to one of two outputs, enabling them to control two separate circuits simultaneously. SPDT switches consist of a single input pole that can connect to one of two output terminals, allowing simple switching between two circuits with one control point.
Understanding Basic Switch Concepts
DPDT (Double Pole Double Throw) switches control two separate circuits simultaneously, allowing you to route current between two outputs for each pole, while SPDT (Single Pole Double Throw) switches manage one circuit with two output options. Understanding these basic switch concepts helps in selecting the right component for controlling multiple pathways or devices in your electrical projects. Your choice between DPDT and SPDT influences circuit complexity, functionality, and application efficiency.
What is a DPDT Switch?
A DPDT (Double Pole Double Throw) switch controls two separate circuits, allowing each to connect to one of two outputs, effectively functioning as two SPDT (Single Pole Double Throw) switches operated by a single mechanism. DPDT switches are commonly used in applications requiring polarity reversal or switching between two power sources, such as in motor control and audio equipment. The ability to control two independent circuits simultaneously distinguishes DPDT switches from SPDT switches, which control only one circuit with two output options.
What is an SPDT Switch?
An SPDT switch, or Single Pole Double Throw switch, allows your circuit to connect one input to one of two outputs, enabling the selection between two different pathways. It features three terminals: one common terminal and two switched terminals, making it ideal for routing signals or selecting modes in electronic devices. Compared to a DPDT switch, which can control two circuits simultaneously, an SPDT switch offers a simpler design for single-circuit control with dual output options.
Key Differences Between DPDT and SPDT
DPDT (Double Pole Double Throw) switches control two separate circuits simultaneously, allowing each pole to connect to one of two terminals, effectively handling two inputs or outputs at once. SPDT (Single Pole Double Throw) switches manage a single circuit by connecting one input to one of two outputs, suitable for simpler on/off or selection functions. Understanding these key differences helps you select the appropriate switch for complex or straightforward electrical applications, ensuring optimal circuit control.
Applications of DPDT Switches
DPDT switches are widely used in applications requiring control over two separate circuits or the ability to reverse polarity, such as motor direction control, audio signal routing, and complex lighting systems. Their capability to simultaneously switch two independent circuits makes them ideal for robotics, industrial machinery, and automation projects where precise and versatile switching is essential. You can leverage DPDT switches to simplify circuit design and enhance functionality in multi-functional electronic devices.
Applications of SPDT Switches
SPDT switches are widely used in applications requiring a single input to be routed to one of two outputs, such as in signal selection, relay control, and audio switching. These switches are common in circuit designs for toggling power between devices, changing signal paths, and controlling devices in automation systems. Their ability to switch between two circuits with a single toggle makes them ideal for use in electronics, telecommunications, and industrial control panels.
Advantages and Disadvantages
DPDT switches offer greater versatility by controlling two separate circuits simultaneously, making them ideal for applications requiring complex switching or reversing polarity. SPDT switches provide simpler and more compact designs, reducing cost and size but limiting control to a single circuit path. Your choice depends on the need for multi-circuit management versus compact and straightforward switching solutions.
Choosing Between DPDT and SPDT
Choosing between DPDT (Double Pole Double Throw) and SPDT (Single Pole Double Throw) switches depends on the application's complexity and circuit requirements. DPDT switches can control two separate circuits simultaneously, making them ideal for reversing motors or switching between different power sources, while SPDT switches are suitable for simpler tasks requiring one circuit to be switched between two paths. Evaluate factors like circuit load, the number of circuits controlled, and switching needs to determine the appropriate switch type for optimal performance.
Conclusion: DPDT vs SPDT Summary
DPDT switches offer double-pole double-throw functionality, allowing control of two separate circuits simultaneously, making them ideal for more complex wiring and applications like motor reversing. SPDT switches control a single circuit with two output paths, providing a simpler and more cost-effective solution for basic on/off or toggle functions. Your choice depends on the complexity of your project, with DPDT favored for multi-circuit control and SPDT suited for straightforward switching needs.

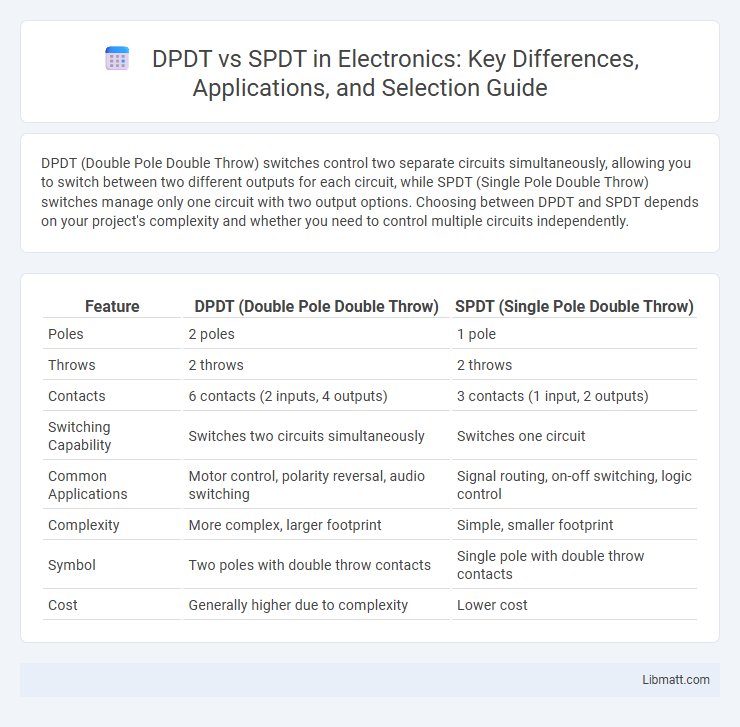

DPDT vs SPDT Infographic
