libmatt.com Phototransistors offer higher sensitivity and gain compared to photodiodes, making them ideal for detecting low light levels in applications requiring amplification without external components. Your choice depends on the required speed and linearity, as photodiodes provide faster response times and better linearity, suitable for high-speed or precision light measurement tasks.
Table of Comparison
| Feature | Phototransistor | Photodiode |
|---|---|---|
| Operation Principle | Amplifies current from light using transistor action | Generates current proportional to light intensity |
| Response Time | Slower (microseconds to milliseconds) | Faster (nanoseconds to microseconds) |
| Sensitivity | Higher sensitivity due to internal gain | Lower sensitivity without gain |
| Linearity | Non-linear response at high light levels | Highly linear response across wide range |
| Noise | Higher noise due to transistor leakage | Lower noise, ideal for low-light detection |
| Typical Applications | Light switches, optocouplers, simple light sensors | High-speed data communication, precise light measurement |
| Biasing | No external bias needed (works in photoconductive mode) | Requires reverse bias for faster operation |
| Cost | Generally lower cost | Usually higher cost due to complexity |
Introduction to Phototransistors and Photodiodes
Phototransistors and photodiodes are semiconductor devices that detect light and convert it into an electrical signal. Photodiodes operate as light-sensitive diodes, producing current proportional to the incident light intensity with fast response times ideal for high-speed applications. Phototransistors function as light-controlled transistors, amplifying the photocurrent internally to provide higher sensitivity but typically slower response compared to photodiodes.
Working Principle: Phototransistor vs Photodiode
Phototransistors amplify current generated by light by using a transistor structure where incident photons create electron-hole pairs that increase base current, resulting in a larger collector current. Photodiodes operate by generating a photocurrent directly proportional to the intensity of light through the photoelectric effect, without internal amplification. Your choice depends on whether you need higher sensitivity with gain (phototransistor) or faster response time and linearity (photodiode).
Key Differences in Structure
Phototransistors have a more complex structure, combining a photodiode with a transistor to amplify the photocurrent internally, while photodiodes consist of a simple p-n junction optimized for fast and linear light detection. The phototransistor's multi-layer design includes base, collector, and emitter regions, resulting in higher sensitivity but slower response time compared to photodiodes. Your choice depends on whether you prioritize amplification and sensitivity (phototransistor) or speed and precision (photodiode) in your optical sensing application.
Sensitivity and Response Time Comparison
Phototransistors exhibit higher sensitivity than photodiodes due to their internal gain mechanism, allowing them to detect lower light levels effectively. However, photodiodes generally provide faster response times, making them more suitable for high-speed applications such as optical communication. The choice between phototransistor and photodiode depends on the trade-off between sensitivity requirements and response speed in the specific use case.
Spectral Response Characteristics
Phototransistors exhibit a broader spectral response with peak sensitivity typically in the visible to near-infrared range, making them suitable for low-light applications. Photodiodes offer a narrower and more defined spectral response, often with faster response times and higher accuracy in specific wavelength detection. The choice between these sensors depends on the required wavelength range, sensitivity, and speed for targeted optical sensing tasks.
Circuit Integration and Complexity
Phototransistors often require simpler circuit integration compared to photodiodes because they inherently provide current amplification, reducing the need for external amplifiers or complex biasing circuits. Photodiodes typically necessitate additional components such as transimpedance amplifiers to convert their small photocurrent into usable voltage signals, increasing circuit complexity. The choice between phototransistor and photodiode significantly influences the overall design complexity and component count in optical sensing applications.
Applications of Phototransistors
Phototransistors are widely used in applications requiring light detection combined with signal amplification, such as in optical switches, light-sensitive alarm systems, and remote control receivers. Their ability to convert light energy into an amplified electrical signal makes them ideal for low-light sensing and precision measurement tasks. Your choice of a phototransistor enables enhanced sensitivity and higher gain compared to photodiodes in many light detection scenarios.
Applications of Photodiodes
Photodiodes are widely used in applications requiring precise light detection, such as optical communication systems, medical devices like pulse oximeters, and barcode scanners. Their fast response time and sensitivity to various light wavelengths make them ideal for solar energy harvesting and environmental sensing. You can rely on photodiodes for accurate light measurement in industrial automation and safety equipment.
Advantages and Disadvantages Overview
Phototransistors offer higher sensitivity and internal gain compared to photodiodes, making them ideal for low-light detection but suffer from slower response times and increased noise. Photodiodes provide faster response and lower noise levels, suitable for high-speed applications, yet their lower sensitivity often requires external amplification. Choosing between phototransistors and photodiodes depends on balancing sensitivity, speed, noise, and circuit complexity for specific sensing needs.
How to Choose: Phototransistor or Photodiode
When selecting between a phototransistor and a photodiode, consider your application's sensitivity and response speed requirements. Phototransistors offer higher sensitivity and amplification, making them ideal for low-light detection, whereas photodiodes provide faster response times and greater linearity, suitable for high-speed optical communication. Your choice depends on whether you prioritize sensitivity or speed in detecting light signals for optimal performance.

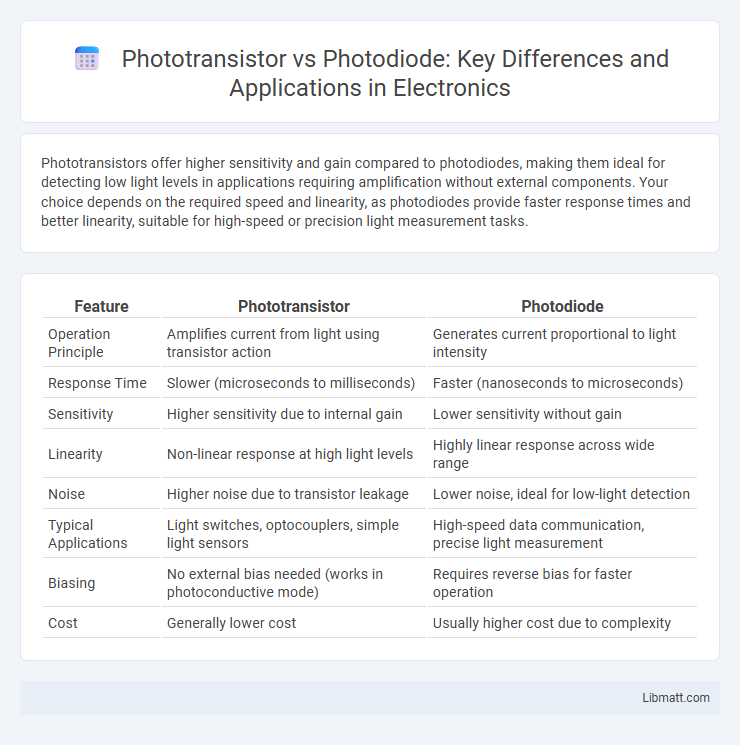

Phototransistor vs Photodiode Infographic
